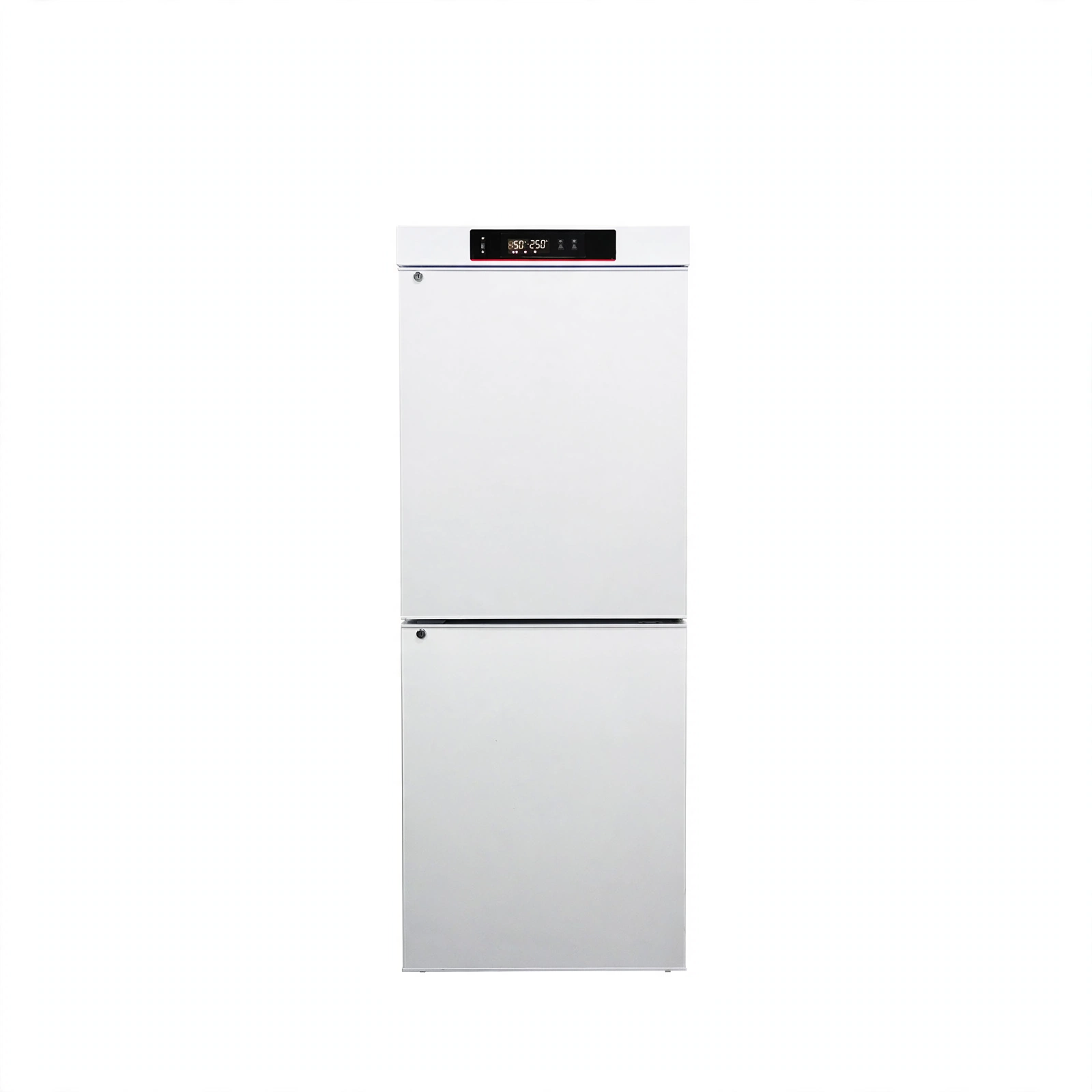

-25℃ Freezer Combined Refrigerator and Freezer

A closer look

About this equipment

Technical Parameters:

Model			BRF-25V300			BRF-25V318		BRF-25V368	BRF-25V450
Capacity		Refrigerator	174L			208L		183L	295L
		Freezer	126L			110L		185L	155L
Temp. Range	Refrigerator		2~8℃
	Freezer		-10~-25℃
Temp. Accuracy			0.1℃
Temp. Uniformity	Refrigerator		≤2℃
	Freezer		≤3℃
Temp. Stability			≤3℃
Recovery Time	Refrigerator		≤15min(Recover to 8℃ in an ambient temp. of 32℃)
	Freezer		≤15min(Recover to -22℃ in an ambient temp. of 25℃)
Cooling Time	Refrigerator		≤80min(Cool down to 6℃ in an ambient temp. of 32℃)
	Freezer		≤1.5h(Recover to -25℃ in an ambient temp. of 25℃)
Control System			Microprocessor control
Display			LED
Alarm			High/low temperature alarm, power failure alarm(24h), controller failure alarm, door ajar alarm			High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm
Refrigeration Type	Refrigerator		Air-cooling
	Freezer		Direct-cooling
Refrigerant	Refrigerator		R600a/28g			R290/39g		R290/25g	R290/50g
	Freezer		R600a/48g			R290/55g		R290/40g	R290/57g
Compressor			International famous brand compressor /2
Condenser & Evaporator	Refrigerator		Side-panel type Bundy tube condenser; wall-mounted/wire-on-tube Bundy tube evaporator			Wire-on-tube Bundy tube condenser; copper tube aluminum fin evaporator		Wire-on-tube Bundy tube condenser; Bundy tube evaporator		Wire-on-tube Bundy tube condenser; copper tube aluminum fin evaporator
						Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator（合并了）
	Freezer
Defrost	Refrigerator		Automatic defrost
	Freezer		Manual defrost
Construction			Polyurethane cyclopentane foam
Material	Internal Material		HIPS			304 stainless steel
	External Material		Precoated steel plate			Sprayed steel plate
Door			Outer door: cyclopentane monolithic foam door*2 Interior door: /			Outer door: cyclopentane monolithic foam door*2 Interior door: freezer door optional		Outer door: cyclopentane monolithic foam door*2 Interior door: freezer door optional	Outer door: cyclopentane monolithic foam door*2 Interior door: freezer door optional
Consumption			160W			390W		594W	410W
Power Supply			AC 220V, 50Hz(Standard); 110/220V, 60Hz(Optional)			AC 220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer)				AC 220V, 50Hz(Standard); 220V, 60Hz(Optional); 110V, 60Hz(Optional, external transformer)
Casters			No			Yes
Shelf	Refrigerator		3
	Freezer		3(PS drawer)			1
Standard Accessory			Test hole*2, USB interface
Optional Accessory			Temperature recorder, remote alarm				Temperature recorder, RS485 interface
Internal Size (WDH)	Refrigerator		510480720mm			590495746mm		580575563mm	590675746mm
	Freezer		420450670mm			520467460mm		580575563mm	520647460mm
External Size (WDH)			5956001700mm			7416311889mm		7507361884mm	7418111889mm
Package Size (WDH)				6406601910mm		8807702090mm		8908802100mm	8809502090mm
Net Weight				69kg		129kg		153kg	144kg
Gross Weight					82.5kg	175kg		195kg	197kg

The details

Specifications

Ask our team for the full specification sheet for this model.

How ordering works

From enquiry to delivery

01Send your enquiry
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
02Confirm the details
We confirm configuration, voltage, accessories, availability and a delivered price.
03We source and ship
We handle procurement, packing and international shipping to your facility.
