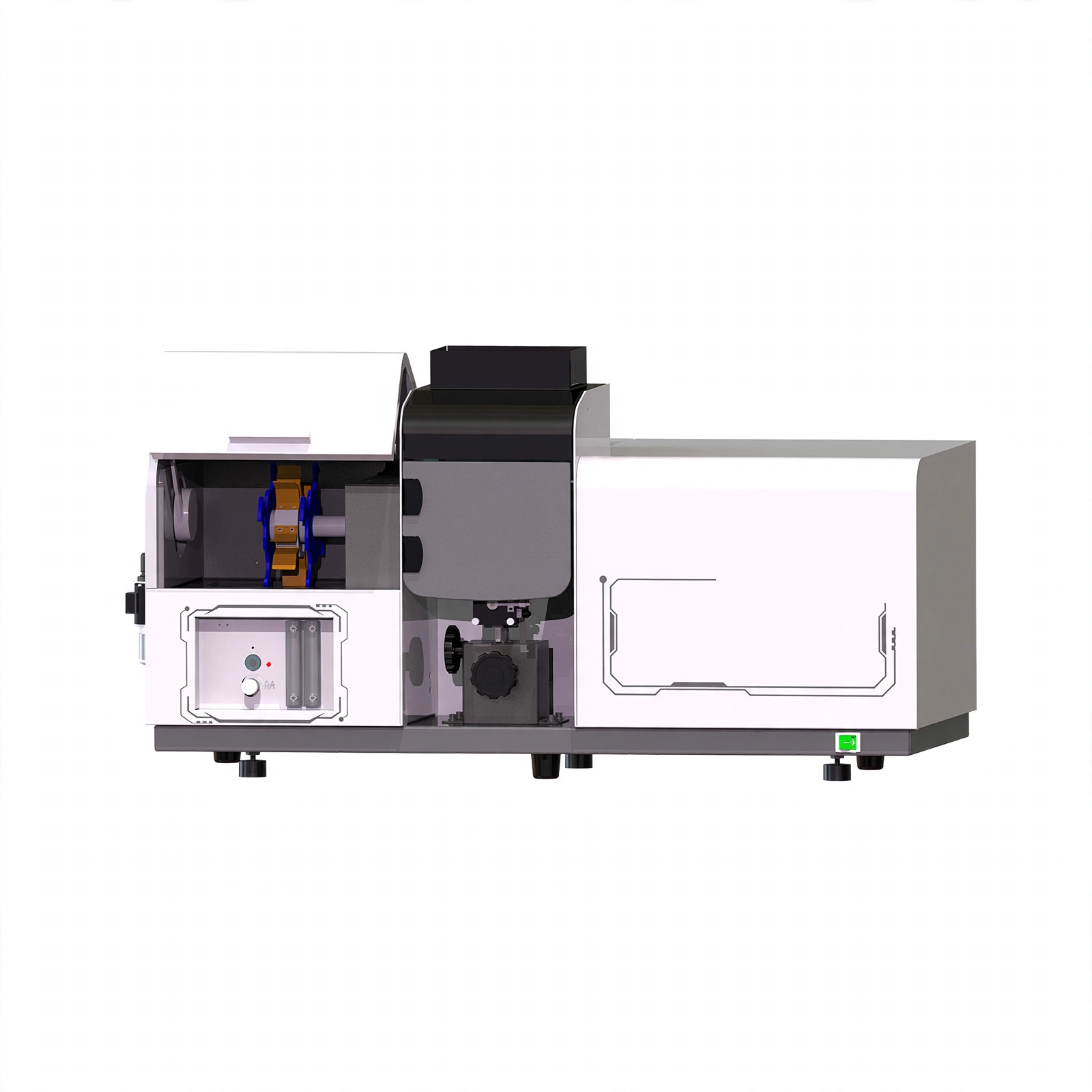

BK-AA180B features an 8-lamp turret design, a flame atomizer, 6-level spectral bandwidth adjustment, and deuterium lamp background correction. It is suitable for the detection of over 30 flame-analysis elements, with a quantitative concentration reaching the mg/L(10⁻⁶) level and a detection concentration as low as μg/L(10⁻⁹). It is widely used in industries such as geology and mining, metallurgy, materials science, agriculture, forestry, soil and fertilizer, petroleum and chemical engineering, as well as third-party testing.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. The instrument features a 20mm thick cast aluminum integrated optical platform with a suspended design, delivering exceptional stability of better than 0.002Abs/30min.
2. The flame atomizer system utilizes aerospace-grade polyphenylene sulfide(PPS) material with a molded one-piece construction, offering exceptional flame resistance, corrosion resistance, and high-temperature durability for extended service life.
3. The industrial-grade TA2 pure titanium burner, precision-finished with slow wire-cutting technology, provides excellent corrosion resistance and supports interchangeable wide-slit designs for high-salt sample analysis.
4. The next-generation flame control system integrates continuously adjustable gas flow, real-time status indicators, dual safety interlocks, and automatic ignition for reliable operation in demanding environments.
5. The optional oxygen-enriched flame upgrade achieves temperatures exceeding 2700°C without nitrous oxide, enabling precise determination of high-temperature elements like Ca, Al, Ba, Mo, Ti, and V.
6. Network port communication mode, offering significantly improved stability and data transfer rates compared to legacy interfaces like RS-232 and RS-485.
Technical Parameters:
| Model | BK-AA180B |
| Wavelength Range | 170~900nm |
| Spectral Bandwidth | 0.1, 0.2, 0.4, 0.8, 1.6, 2.4nm |
| Wavelength Accuracy | ±0.1nm |
| Wavelength Repeatability | ≤0.05nm |
| Detector | Photomultiplier tube detector |
| Baseline Stability | Drift ≤0.002Abs, noise ≤0.001Abs(Steady 30min)
Drift ≤0.002Abs, noise ≤0.001Abs(Dynamic 15min) |
| Resolution | Spectral bandwidth deviation ≤0.02nm
Manganese double line valley to peak energy ratio ≤25% |
| Characteristic Concentration | Flame method for Cu: ≤0.025μg/mL/1% |
| Detection Limit | Flame method for Cu: ≤0.002μg/mL |
| Preciseness | Flame method for Cu: ≤0.3% |
| Background Correction Ability | Deuterium lamp calibration 1.0Abs, background ≥90 times |
| Diffraction Grating | Groove 1800lines/mm, blaze wavelength 250nm |
| Lamp Stand | 8(Support simultaneous preheating of 1~4 lights) |
| Standard Accessory | Element lamp(Cu*1, Hg*1), software working station |
| Optional Accessory | Oxygen-enriched high-temperature flame, wide slit combustion head, adjustable nebulizer, hydride vapor generator, audit trailing software, oil-free air compressor, computer, printer |
| Power Supply | AC220V, 50/60Hz; 110V, 60Hz(Standard) |
| External Size(W*D*H) | 1080*480*560mm |
| Package Size(W*D*H) | 1220*670*840mm |
| Net Weight | 70kg |
| Gross Weight | 140kg |
Flame System:
| Air-acetylene Burner | 100mm all-titanium burner |
| Atomization Chamber System | Integrally molded from polyphenylene sulfide |
| Burner System | Flame height is adjustable and lockable, with a 360° rotatable combustion seam |
| Gas Flow Control System | Automatic ignition/fame-out |
| Reading Mode | Foot pedal operation |
| Safety System | Emergency shutdown protection switch, automatic gas cut-off/shutdown/alarm in case of abnormal status, abnormal air pressure, ignition failure, gas leakage, abnormal flow rate, etc. |
Software Working Station:
| Smart Optimization | One-key operation for instrument optimization, supporting multi-task analysis |
| Repeat Measurement | 1~99 replicates with auto-calculation of mean/SD/RSD |
| Print/Export Reports | Word/Excel supported |
| Auto-Calibration | Curve fitting, re-slope&concentration calculation, incl. standard addition method |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The Atomic Absorption Spectrophotometer(AAS) is a high-precision analytical instrument designed for detecting and quantifying metal elements in various samples.
