Washer Disinfector

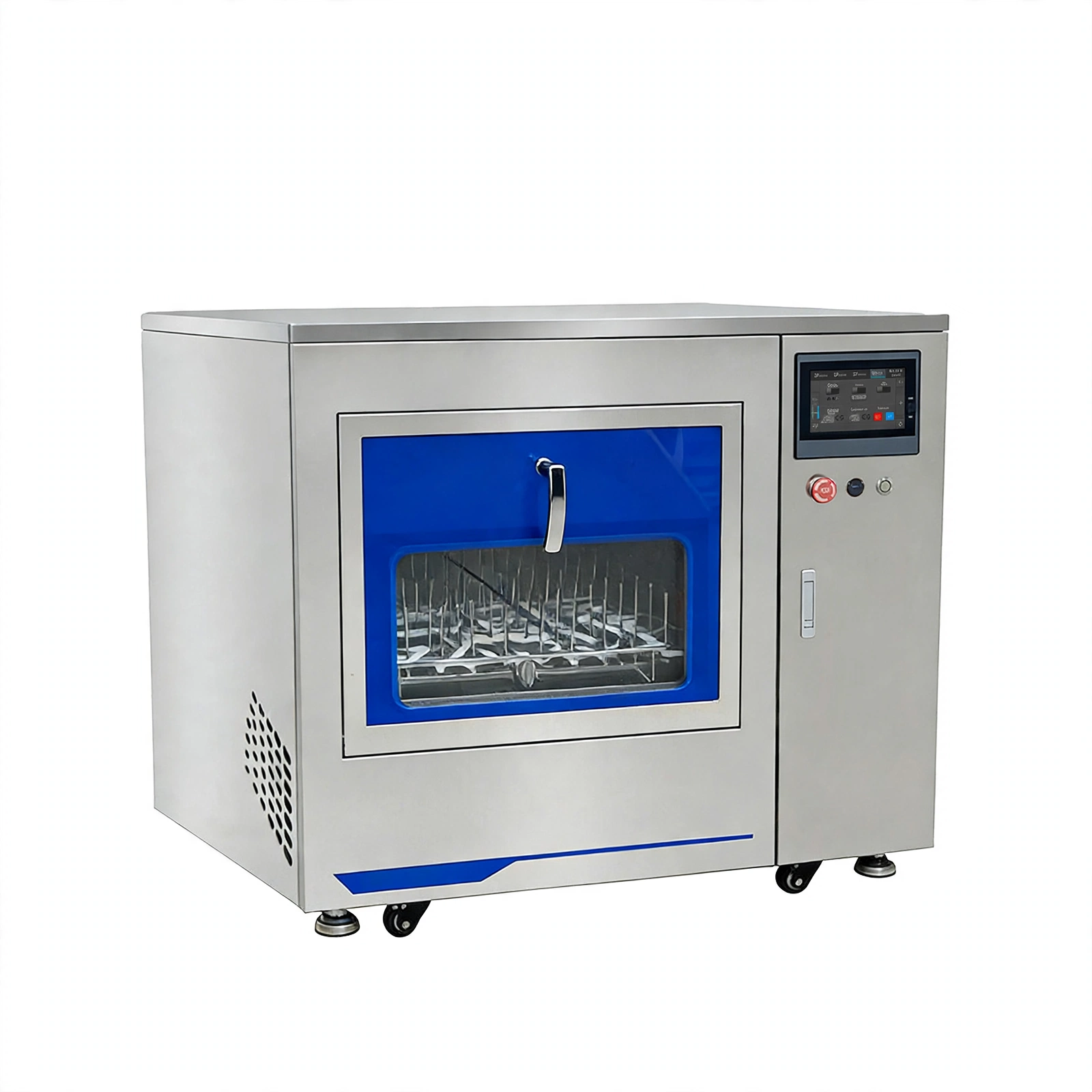

Automated Dental Washer Disinfector Dental Medical Glassware Washer

Model BK-LW120, BK-LW220, BK-LW320

Lab Automatic Glassware Washer provides standard and automatic cleaning and disinfection for most of medical equipment, so as to eliminate the possibility of infection in cleaning and disinfecting.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program.

2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and  drying process.

3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃.

4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process.

5. PLC touch screen control with preset 12 programs and 99 cutomized programs.

6. Safety protection—electronic security door lock to prevent unexpected door opening, water&drying air temperature dual control and equipped with emergency switch.

Standard Washing Procedure(can be self-designed by the user):

Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying

ALL cleaning racks can be removed completely, convenient to washing rack pipeline:

Technical Parameters:

Model

BK-LW120

BK-LW220

BK-LW320

Cleaning

Capacity 120L

220L

320L

Washer Load Level 1

2

3

Water Wash Power 0.75KW

0.75KW

1.5KW

Water Heater Power 5KW 5KW 15KW 5KW 15KW
MAX. Power 6KW 6KW 16KW 7KW 17KW
Water Consumption/Step 17L

20L

22L

Tank Internal Temperature

0~99℃

Water Supply Pressure

0.3~1.0Mpa

Peristaltic Pump for Cleaning Agent

2 independent pumps control detergent agent and neutralizing agent

Cleaning Agent Level Sensor

YES

Washing Pump Sweden 430L/min

Sweden 800L/min

Sweden 1000L/min

Standard Cleaning Racks BKIR36*1

BKIR36*2

BKIR36*3

Drying

Drying Function

YES

Steam Condenser

YES

Dry Power 3KW

3.6KW

3.6KW

Control System and Traceability

Control System

7″ color LCD touch screen display, microprocessor

Cleaning Program

12 pre-set programs(editable)+99 PLC free programming

Password Protection

3 levels password

Safety Emergency Button

YES

USB Port

YES

Integrated Printer

Optional

Online Monitor Performance of Washing

Optional

Dimensions&Weight

Chamber Dimension(W*D*H) 600*629*539mm

600*629*754mm

600*629*915mm

Exterior Dimension(W*D*H) 980*740*870mm

695*870*1820mm

695*870*1990mm

Package Dimension(W*D*H) 1110*940*1075mm

810*990*2015mm

810*990*2185mm

Net Weight(Host only) 169kg

220kg

237kg

Gross Weight(Host with rack) 200kg

300kg

320kg

Others

Door

Double-layered glass door

Safety Door Lock

YES

Built-in RO Water Pump

YES

Noise <50dB

<55dB

<55dB

Power Supply AC220V, 50Hz(Standard);

AC110V, 50/60Hz; 220V, 60Hz(Optional)

AC220V, 50Hz; 380V, 50Hz(Standard);

AC110V, 50/60Hz; AC220V, 60Hz; 220V, 60Hz(Three phase), 380V, 60Hz(Optional)
