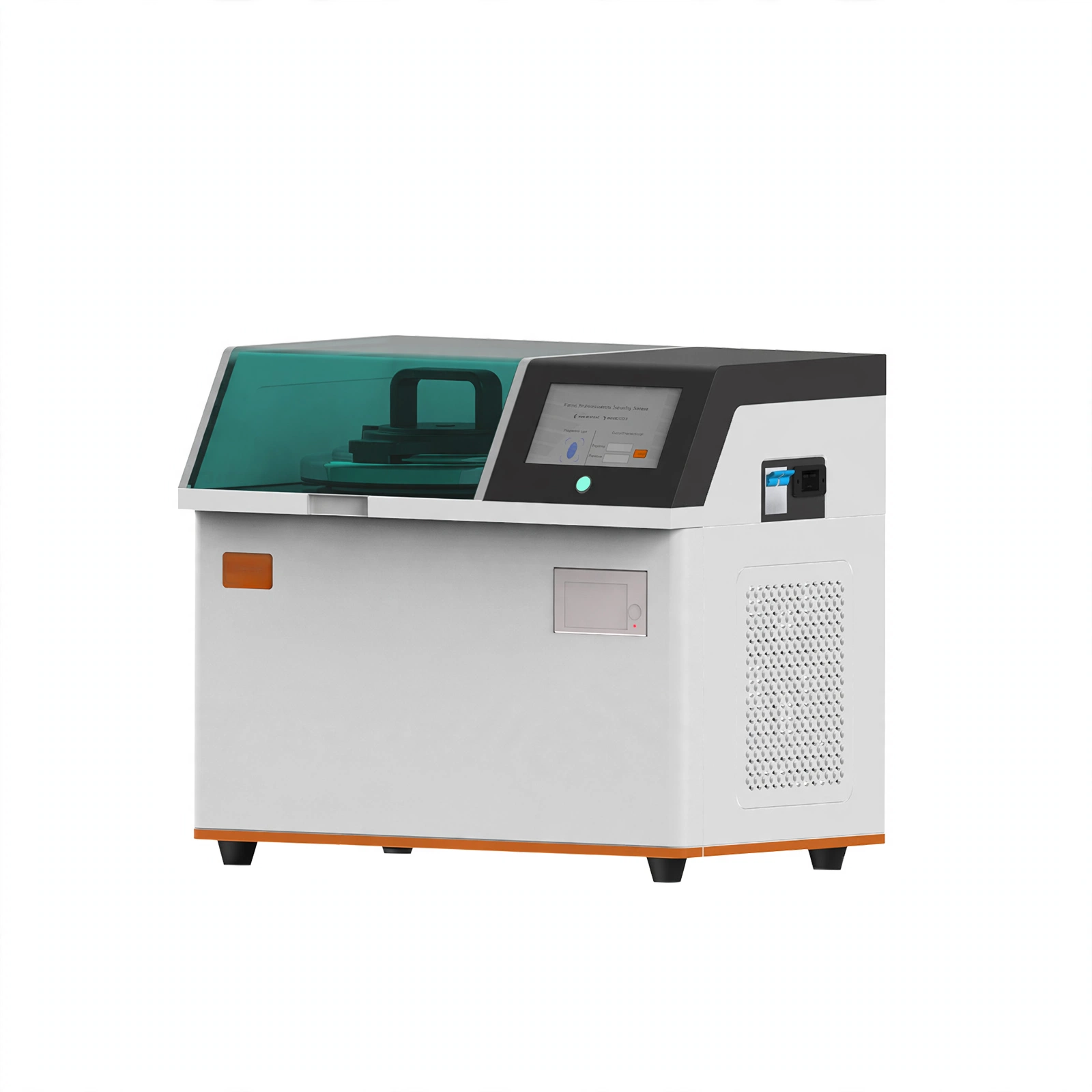

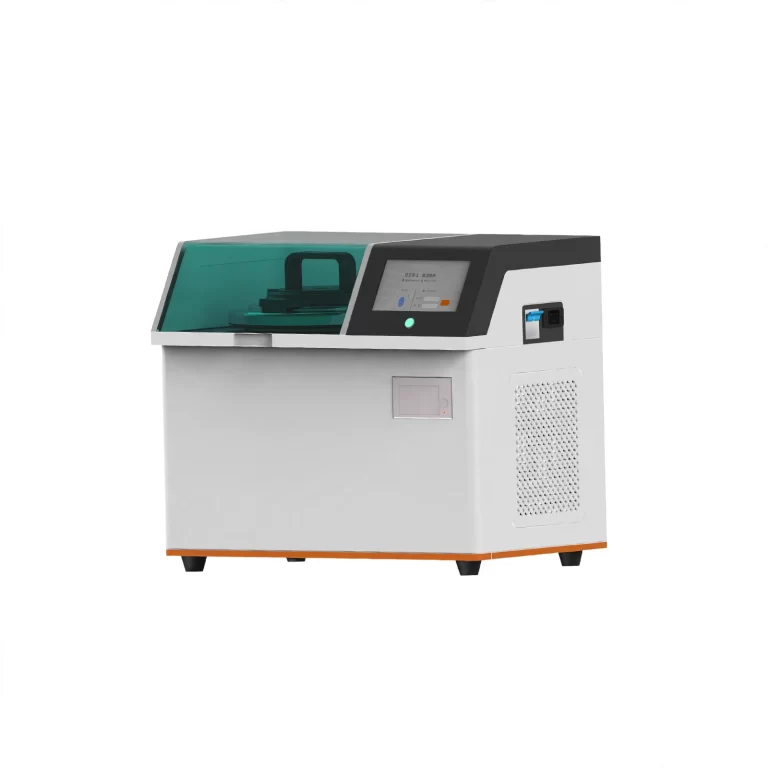

Application: Automatic Fiber Analyzer is designed for accurate and efficient determination of crude fiber, acid detergent fiber (ADF), and neutral detergent fiber (NDF) in food, feed, and agricultural samples. Featuring automated operation and precise temperature control, it significantly improves testing efficiency while reducing manual error.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Full compliance with international standards, full-automatic operation, solves traditional drawbacks, and ensures accurate CF/ADF/NDF testing.
2. Advanced filter bag technology for stable, reliable CF/NDF/ADF analysis results.
3. 16-bit true-color touch screen: intuitive, easy to operate.
4. 50 configurable experimental programs to meet diverse testing needs.
5. 5 user accounts with hierarchical permissions for standardized management.
6. Fingerprint login: no account/password, faster operation.
7. Built-in component detection: easy maintenance, longer equipment life.
8. Special material reaction kettle: high temperature/pressure/corrosion resistance, safe and stable operation.
9. Anti-foam design: no defoamer, eco-friendly, cost-saving.
10. Automatic reagent filling (5 types): high-speed, quiet, self-cleaning pipelines, no cross-contamination.
11. High-power heating: ≤5min to set temperature, high efficiency.
12. Closed digestion: no cooling water, precise temperature control, accurate results.
13. Intelligent alarms: auto-pause on abnormalities, protects equipment.
14. Experiment completion prompts: built-in formulas + printer, no manual calculation.
Technical Parameters:
| Model |
BK-F5800 |
||
| Processing Temperature Range | Room temperature ~100℃ | Sample Batch Capacity | 1~24 |
| Sampling Amount/Bag | 0.5~1.5g | Adding Method | Automatic |
| Fiber Test Range | 0.1~100% | Temperature Control Accuracy | ±0.2℃ |
| The Cooking Time Setting of Each Stage |
0~999min |
||
|
Repeatability Accuracy |
If the fiber content is less than 10%, the relative deviation is ≤5%; |
||
|
Daily Processing Capacity |
24~96 pieces of crude fiber, 24~120 pieces of neutral detergent fiber/acid detergent fiber/lignin(8-hour working system) |
||
| Power Supply |
AC220V, 50Hz |
||
| Standard Accessories |
Special 3D Filter Bags*200; Inert Black Marking Pens*1; Sealer*1; Filter Bag Fixing Bracket*1; Filter Bag Placement Rack*1; Cover*1 |
||
| External Size(W*D*H) |
580*410*495mm |
||
| Net Weight |
38kg |
||
| Package Size(W*D*H) |
680*520*710mm |
||
| Gross Weight |
56kg |
||
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
Application: BK-F800 Fiber Analyzer is with advanced design, easy operation and flexible application. It can be used in conventional Weende method to analyze crude fiber and Van Soest analysis to wash the fiber. Appli…

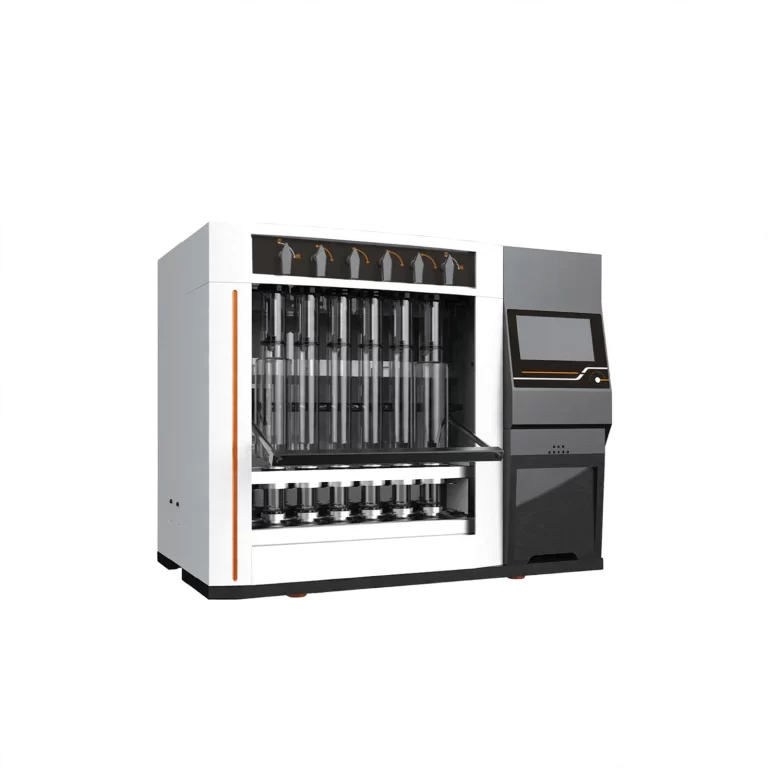

Application: It is a high-throughput, high-efficiency, easy-to-operate automatic crude fiber tester developed by using the three-dimensional filter bag method, combined with no cooling water, high-pressure sealing tec…
