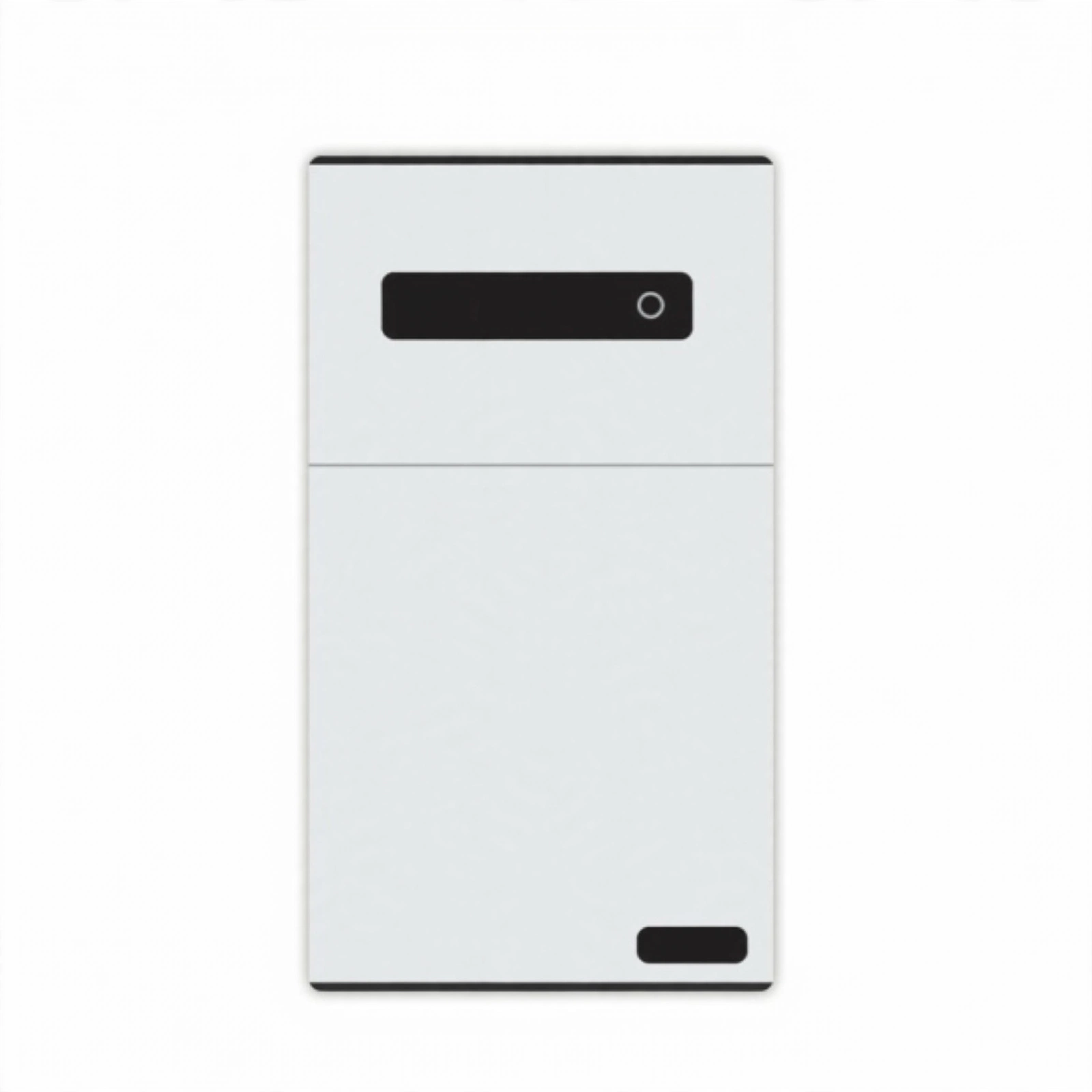

OI Automatic Gel Imaging and Analysis System is a highly integrated and fully automated gel imaging system, system interface is simple and practical, the main interface has shooting button and time control to guide the user, it is very easy to operate, no need for complex and tedious debug, it is your best choice.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Product Features:
High resolution CCD camera, high sensitivity, high resolution, with automatic focus and high performance lens, specialized filter for nucleic acid dye.
Specialized overlay glue cutting filter, compared with the traditional one, it has many advantages, easy to operate, can prevent UV and blue light damage, no need to operate in dark room, work very well under strong light condition. The white light sample plate is used for SDS PAGE glue samples shooting.
Product Application:
It can be used to do nucleic acid test for various fluorescent dyes, such as EB, SYBR Gold, SYBR Green, SYBR Safe, Gel Red, Gel Green, Texas Red, Fluorescein marked DNA/RNA.
Technical Parameters:
| Mode | BK-AG1000 | BK-AG2000 |
| Pixel | 2592×1944(5.03MP) | 3000×4000(12MP) |
| Exposure Time | 1ms~3000ms | 1ms~60min |
| QE Value | High QE: >65% | High QE: >75% |
| Binning | 1×1 | 1×1, 2×2, 4×4 |
| Bit Depth | 16 bit(0-65535) | 16 bit(0-65535) |
| OD | ≥4.8OD | ≥4.8OD |
| Lens | F=1.4, 20 million auto focus lens | F=1.4, 20 million auto focus lens |
| Light Source | Trans-UV 302nm; Epi-White LED; Trans-White UV to white sample plate; Epi-UV 254nm, 302nm, 365nm for option | Trans-UV 302nm; Epi-White LED; Trans-White UV to white sample plate; Epi-UV 254nm, 302nm, 365nm for option |
| Filters | 590nm, Others for option | 590nm, Others for option |
| UV Area | 21×21cm | 21×21cm |
| Timing Off | 1~60 mins | 1~60 mins |
Ask our team for the full specification sheet for this model.
