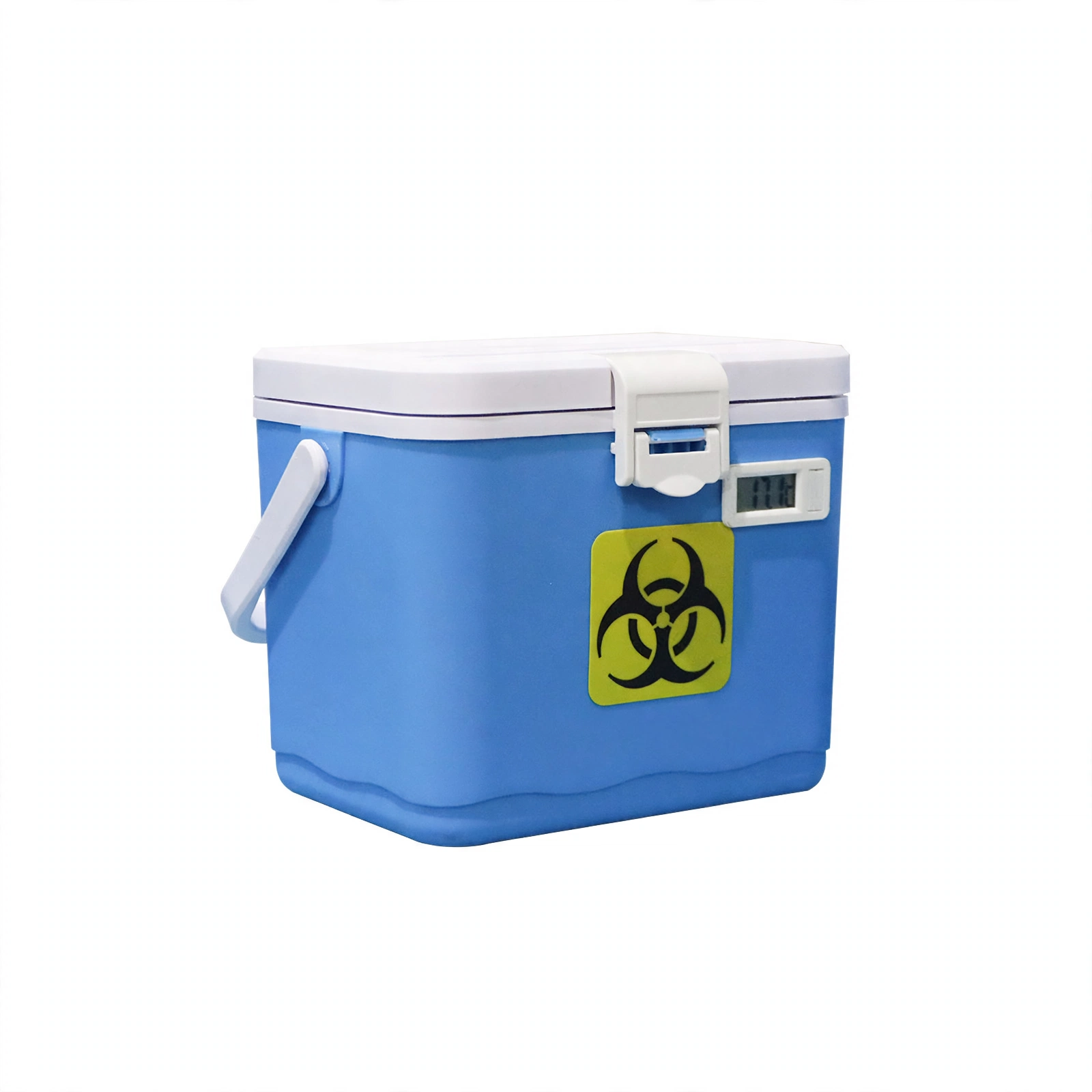

Biosafety Transport Box

Biosafety Transport Box

Model BTB-L5 BTB-L6 BTB-L8 BTB-L12 BTB-L15 BTB-L20 BTB-L33 BTB-L55 BTB-L65 BTB-L85 Blood & clinical

Application: lt can be used for the transportation of biological products requiring physical insulation, such as un2814, un2900, un3373 biological samples, pathogenic microorganism(virus) species, blood, etc

Capacity
5L / 6L / 8L / 12L /…
Net weight
12kg / 2.5kg / 2.2kg…
Dimensions
266*215*225mm / 330*2…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model BTB-L5 BTB-L6 BTB-L8 BTB-L12 BTB-L15
Capacity 5L 6L 8L 12L 15L
Internal&External Materials

PP+PE
Insulation Material

PU
Temp. Resolution

0.1℃
Manufacturing Process

Blow molding+injection molding, burr-free surface
Cooling Source Material

Sodium polyacrylate
Cooling Retention Time

Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C
Sponge Test Tube Holder

Standard: 20 holes, compatible with 10ml test tubes

Optional: 11 holes, compatible with 20ml test tubes
Configuration Box*1, phase-change ice box(250ml)*2, absorbent cotton*1, digital thermometer*1, sponge test tube holder*1, 95KPa biosafety transport tank*1 Box*1, phase-change ice box(400ml)*4, absorbent cotton*1, shoulder strap*1, digital thermometer*1, sponge test tube holder*1 Box*1, phase-change ice box(400ml)*4, absorbent cotton*2, digital thermometer*1, sponge test tube holder*2, 95KPa biosafety transport tank*2 Box*1, phase-change ice box(400ml)*6, absorbent cotton*2, shoulder strap*1, tray*1, digital thermometer*1, sponge test tube holder*2, 95KPa biosafety transport tank*2 Box*1, phase-change ice box(400ml)*6, absorbent cotton*3, shoulder strap*1, tray*1, digital thermometer*1, sponge test tube holder*3, 95KPa biosafety transport tank*3
Internal Size(W*D*H) 200*142*165mm 240*145*180mm 295*167*168mm 325*170*225mm 363*203*244mm
External Size(W*D*H) 266*215*225mm 330*235*275mm 335*225*205mm

425*262*305mm
Package Size(W*D*H) 380*270*300mm 380*270*300mm 380*270*300mm 460*355*360mm 460*355*360mm
Net Weight 12kg 2.5kg 2.2kg 4kg 4.3kg
Gross Weight 2.4kg 3.2kg 2.9kg 4.5kg 4.8kg
Model BTB-L20 BTB-L33 BTB-L55 BTB-L65 BTB-L85
Capacity 20L 33L 55L 65L 85L
Internal&External Materials

PP+PE
Insulation Material

PU
Temp. Resolution

0.1℃
Manufacturing Process

Blow molding+injection molding, burr-free surface
Cooling Source Material

Sodium polyacrylate
Cooling Retention Time

Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C
Sponge Test Tube Holder

Standard: 20 holes, compatible with 10ml test tubes

Optional: 11 holes, compatible with 20ml test tubes
Configuration Box*1, phase-change ice box(400ml)*9, shoulder strap*1, absorbent cotton*4, digital thermometer*1, tray*1, divider panel*1, sponge test tube holder*4, 95KPa biosafety transport tank*4 Box*1, phase-change ice box(400ml)*11, absorbent cotton*5, digital thermometer*1, sponge test tube holder*5, 95KPa biosafety transport tank*5 Box*1, phase-change ice box(400ml)*11, absorbent cotton*8, digital thermometer*1, sponge test tube holder*8, 95KPa biosafety transport tank*8 Box*1, phase-change ice box(400ml)*15, absorbent cotton*12, digital thermometer*1, sponge test tube holder*12, 95KPa biosafety transport tank*12 Box*1, phase-change ice box(400ml)*15, absorbent cotton*20, digital thermometer*1, sponge test tube holder*20, 95KPa biosafety transport tank*20
Internal Size(W*D*H) 380*245*230mm 480*250*290mm 590*335*320mm 540*425*315mm 580*465*320mm
External Size(W*D*H) 450*330*300mm 570*310*360mm 640*395*395mm 620*485*375mm 640*520*375mm
Package Size(W*D*H) 490*360*340mm 585*325*390mm 670*430*430mm 640*505*395mm 650*540*400mm
Net Weight 4.8kg 5.5kg 8.3kg 9.8kg 13kg
Gross Weight 5.5kg 6.5kg 9.3kg 11kg 14.3kg
The details

Specifications

Model
BTB-L5 / BTB-L6 / BTB-L8 / BTB-L12 / BTB-L15
Capacity
5L / 6L / 8L / 12L / 15L
Internal&External Materials
PP+PE
Insulation Material
PU
Temp. Resolution
0.1℃
Manufacturing Process
Blow molding+injection molding, burr-free surface
Cooling Source Material
Sodium polyacrylate
Cooling Retention Time
Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C
Sponge Test Tube Holder
Standard: 20 holes, compatible with 10ml test tubesOptional: 11 holes, compatible with 20ml test tubes
Configuration
Box*1, phase-change ice box(250ml)*2, absorbent cotton*1, digital thermometer*1, sponge test tube holder*1, 95KPa biosafety transport tank*1 / Box*1, phase-change ice box(400ml)*4, absorbent cotton*1, shoulder strap*1, digital thermometer*1, sponge test tube holder*1 / Box*1, phase-change ice box(400ml)*4, absorbent cotton*2, digital thermometer*1, sponge test tube holder*2, 95KPa biosafety transport tank*2 / Box*1, phase-change ice box(400ml)*6, absorbent cotton*2, shoulder strap*1, tray*1, digital thermometer*1, sponge test tube holder*2, 95KPa biosafety transport tank*2 / Box*1, phase-change ice box(400ml)*6, absorbent cotton*3, shoulder strap*1, tray*1, digital thermometer*1, sponge test tube holder*3, 95KPa biosafety transport tank*3
Internal Size(W*D*H)
200*142*165mm / 240*145*180mm / 295*167*168mm / 325*170*225mm / 363*203*244mm
External Size(W*D*H)
266*215*225mm / 330*235*275mm / 335*225*205mm / 425*262*305mm / 425*262*305mm
Package Size(W*D*H)
380*270*300mm / 380*270*300mm / 380*270*300mm / 460*355*360mm / 460*355*360mm
Net Weight
12kg / 2.5kg / 2.2kg / 4kg / 4.3kg
Gross Weight
2.4kg / 3.2kg / 2.9kg / 4.5kg / 4.8kg
