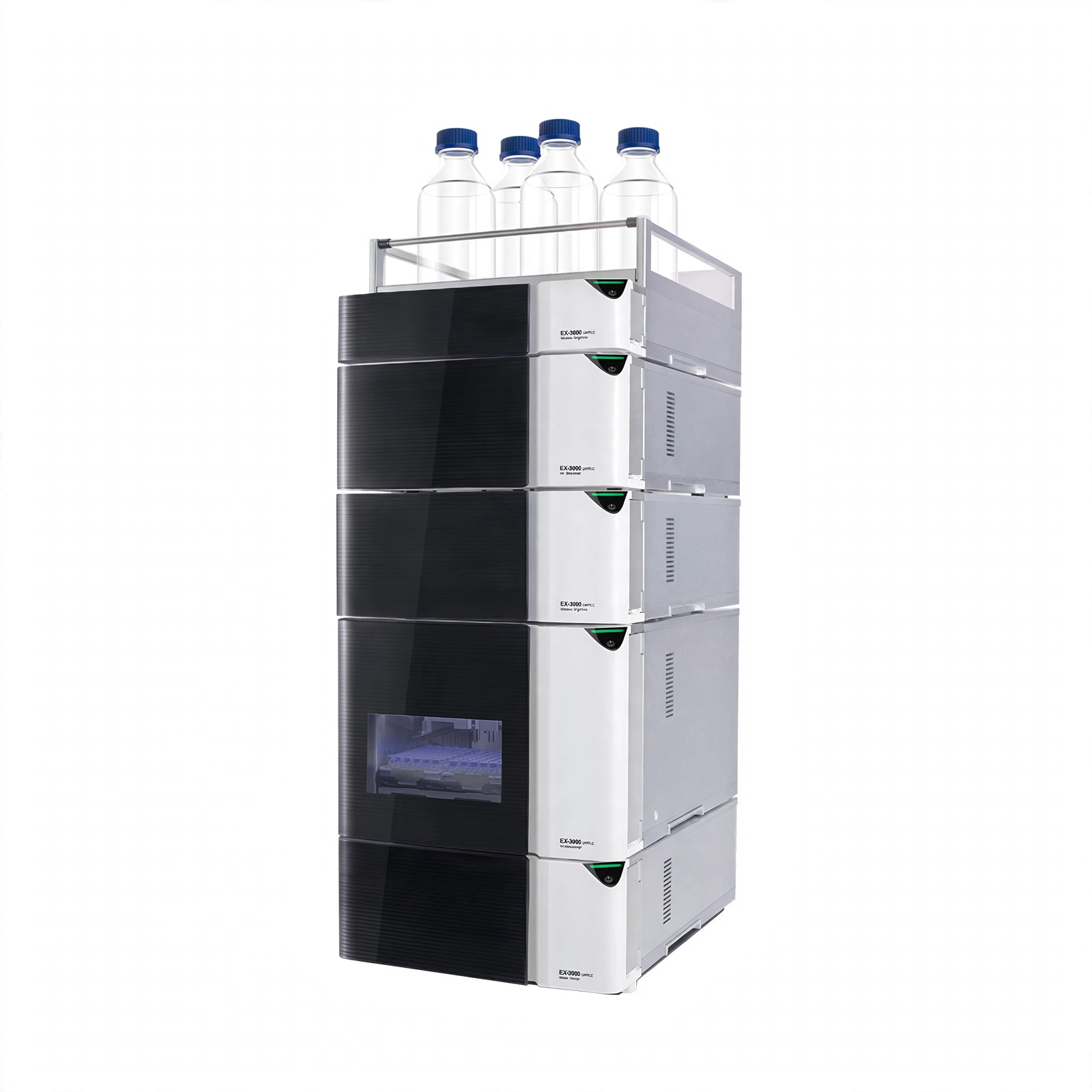

BK-1800UHPLC Ultra-high Performance Liquid Chromatography System

Model BK-1800UHPLC(Type I) Binary gradient automatic system with UVBK-1800UHPLC(Type II) Binary gradient automatic system with PDA High speed

Ultra-high Performance Liquid Chromatography (UHPLC) is an advanced liquid separation technique evolved from HPLC. It separates mixture components based on the difference in partition coefficient and adsorption capacity between mobile phase and stationary phase via repeated equilibrium distribution, and matches high-speed detectors to complete efficient qualitative and quantitative analysis.

Noise
≤0.2*10⁻⁵AU
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features：

1. Multiple detection modules are optional, including PDA, UV/VIS, FL, RI and ELSD.

2. Built-in real-time solvent pressure compensation control improves detection accuracy; integrated check valve ensures stable fluid delivery and reduces daily maintenance workload.

3. Designed with low dead-volume flow path and high-pressure resistant structure. It delivers higher separation resolution, shorter analysis cycles and lower organic solvent consumption compared than standard HPLC systems.

4. High-frequency detector sampling ensures complete data collection of narrow chromatographic peaks, greatly enhancing sensitivity and reproducibility for trace impurity detection.

EX1800 ULBP Binary Ultra-High Pressure Linear Motor Infusion Module:

Liquid Infusion System Digital linear motor driven serial pump
Flow Rate Range 0.001~5.000ml/min, 0.001ml/min increment
Max Output Pressure 120MPa
Flow Accuracy ≤0.06%RSD
Flow Precision ≤±0.3%
Compression Compensation Automatic, continuous, selectable solvent type
Post-column Cleaning Automatic post-column cleaning function, which can control the cleaning flow rate
Gradient Setting Range 0~100%
Extended Application Record the number of times the plunger rod seal is used

EX1800 SUV Detector:

Flow Cell Volume 1.0μl
Light Source Deuterium lamp
Wavelength Range 190~700nm
Spectrum Bandwidth 4nm
Wavelength Accuracy ±1nm
Wavelength Precision 0.1nm
Noise ≤0.2*10⁻⁵AU (Air cell, 254nm, 20°C)
Drift ≤0.4*10-4AU/h (Air cell, 254nm, 20°C)
Sampling Frequency 100Hz

EX1800 PDA detector:

Number of Diode Arrays 512
Light Source Deuterium lamp + tungsten lamp
Wavelength Range 200~800nm
Wavelength Precision ±0.5nm
Wavelength Accuracy ±0.1nm
Noise ±5*10 -6AU, under specified conditions
Drift 1*10-4AU/h, under specified conditions
Sampling Frequency 100Hz
Spectral Bandwidth 10nm

Technical Parameters:

Model BK-1800UHPLC(Type I)

Binary gradient automatic system with UV

 BK-1800UHPLC(Type II)

Binary gradient automatic system with PDA
Diode Array Detector / Yes
UV Detector EX1800 SUV*1 /
Pump

EX1800 ULBP*1
Solvent Manager

EX1800SO SD4*1
Auto-sampler

EX1800 UAS*1, pressure resistant 120MPa, max 108pcs 2mL vials, quadruple protection device
Column Oven

EX1800 CO*1, temperature range: RT+5~80℃
Pronaos EP-C18, 5μm, 4.6*250mm

Yes
Workstation EX-Clarity C50 Yes /
Power Supply

AC220/110V, 50/60Hz
Optional Accessory

UV detector, RI detector, PDA detector, ELS detector, FL detector, column, EX1800 CO II refrigerated column oven: temperature range: RT-15~80℃

Auto-sampler:

EX1800 UAS II, pressure resistant 120MPa, max 192pcs 2mL vials, quadruple protection device

EX1800 UAS C II, pressure resistant 120MPa, max 192pcs 2mL vials, quadruple protection device, with cooling function
Package Size (W*D*H) 720*580*410mm*4;

720*580*510mm

 720*580*410mm*4;

720*580*510mm
Gross Weight 32kg;

21kg;

18kg;

18kg;

33kg

 32kg;

23kg;

18kg;

18kg;

33kg
The details

Specifications

Liquid Infusion System
Digital linear motor driven serial pump
Flow Rate Range
0.001~5.000ml/min, 0.001ml/min increment
Max Output Pressure
120MPa
Flow Accuracy
≤0.06%RSD
Flow Precision
≤±0.3%
Compression Compensation
Automatic, continuous, selectable solvent type
Post-column Cleaning
Automatic post-column cleaning function, which can control the cleaning flow rate
Gradient Setting Range
0~100%
Extended Application
Record the number of times the plunger rod seal is used
Flow Cell Volume
1.0μl
Light Source
Deuterium lamp
Wavelength Range
190~700nm
Spectrum Bandwidth
4nm
Wavelength Accuracy
±1nm
Wavelength Precision
0.1nm
Noise
≤0.2*10⁻⁵AU (Air cell, 254nm, 20°C)
Drift
≤0.4*10-4AU/h (Air cell, 254nm, 20°C)
Sampling Frequency
100Hz
Number of Diode Arrays
512
Light Source
Deuterium lamp + tungsten lamp
Wavelength Range
200~800nm
Wavelength Precision
±0.5nm
Wavelength Accuracy
±0.1nm
Noise
±5*10 -6AU, under specified conditions
Drift
1*10-4AU/h, under specified conditions
Sampling Frequency
100Hz
Spectral Bandwidth
10nm
