Thermal Cycler QPCR Detection System

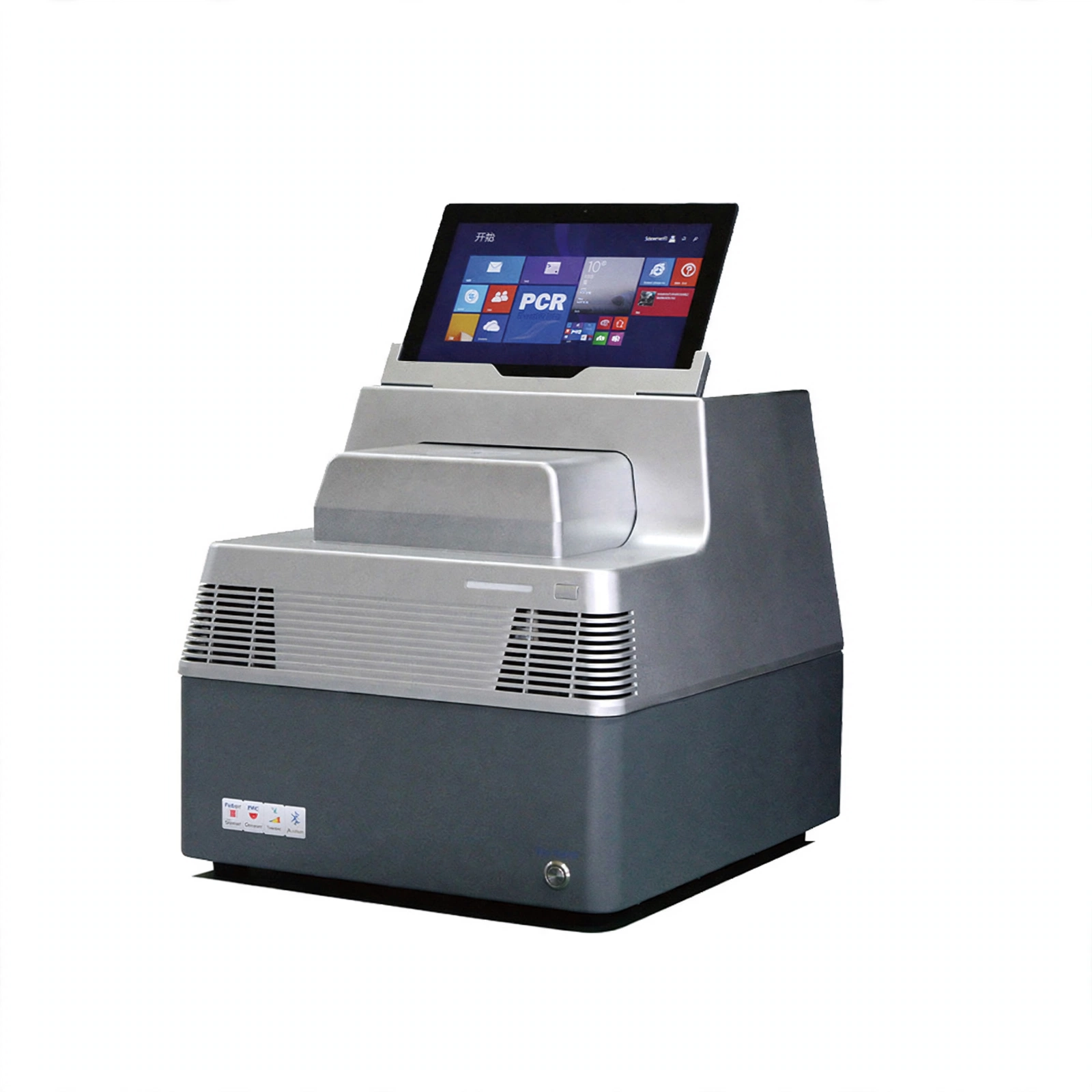

BK-96A Fluorescence Quantitive Pcr Detaction System Thermal Cycler

Model BK-96A Microplate & PCR

Features： 1. Whole block scanning and formulated line scanning mode, 96-well double-colour scaning takes only 5.5s 2. 6 channels fluorescencedetection,no cross talk between different channels. 3. Unique bottom detection,compatible to reaction volume down to 5μl 4. New automatic hot lid,automatic open and close which is prevenT reagent evaporation 5. LED excitation light source with super long service life 6. New TE module with special technique to ensure long service life 7. Available for a variety of scientific research and clinical applications.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Models:

Technical Parameters

Product Name

Fluorescence Quantitative PCR Detection System
Model

FQD-96A
Sample Capacity

96×0.2ml PCR plate, 12×8-strip tubes, 96*0.2ml single tube(Transparent Bottom)
Reaction system

5~100μl
Dynamics Range

1-1010
Medical instrument registration certificate

G.X.Z. 20153400273
Channel

4
Emission Wavelength

500-800nm
Detection path F1 F2 F3 F4 F5 F6
Suitable probe.dye FAM,SYBR GREEN I HEX/VIC/TET/JOE/CY3/NED/TAMRA ROX,TEXAS-RED Cy5 Cy5.5 Reserved path
Excitation wavelength

300~800nm
Detection wavelength

500~800nm
Module temp. range

4-105℃(resolution:0.1℃) withSOAK Low Temp.storage Function
RampRate

4.0℃/s(max)
Temp. Control accuracy

±0.1℃
Temp. uniformity

≤ ±0.3℃
Temp. control mode

Block mode andTube Mode

(Automaticcontrolbasedonliquid level)
Operation mode

Continuous operation
Gradient Temp. Range

1-36℃
Hot-lid Temp. Range

30-110℃(Adjustable, Defaultby105℃ and Automatic Hot-lid)
FluorescenceintenseDetection Repeatability

5%
Scanning Mode

Full plate scanning and designated line scanning
Programming

Max 20 Segments for Each Program, Max 99 Cycles
Operation Mode

Continuous
Scanning time

5.5s
Special function

Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curveanalysis,6 independent temperature zones, HRMmulti-channel crosstalk calibration, background correction, auto gain, customized parameters,etc
Operation system

Microsoft:Windows7/Windows8.1/ Windows10 Software:excel2000/2002/2003/2007/2012
Min computer configuration

RAM:512M,hardware space:10GB CPU:Pentium 4 virtual memory≥1000MB
Power supply

100-240V 50/60Hz 600W
Dimension(L*W*H)

410*386*352mm
Port method

SupportUSBandRS232data port andBluetoothport
Certification

Ferrotec Peltier/CE/EMC/RoHS2.0/PICC

Product quality liability insurance/IVD/MET
Packing size

720*680*640mm
Gross weight

55kg
The details

Specifications

Ask our team for the full specification sheet for this model.
