Refractometer

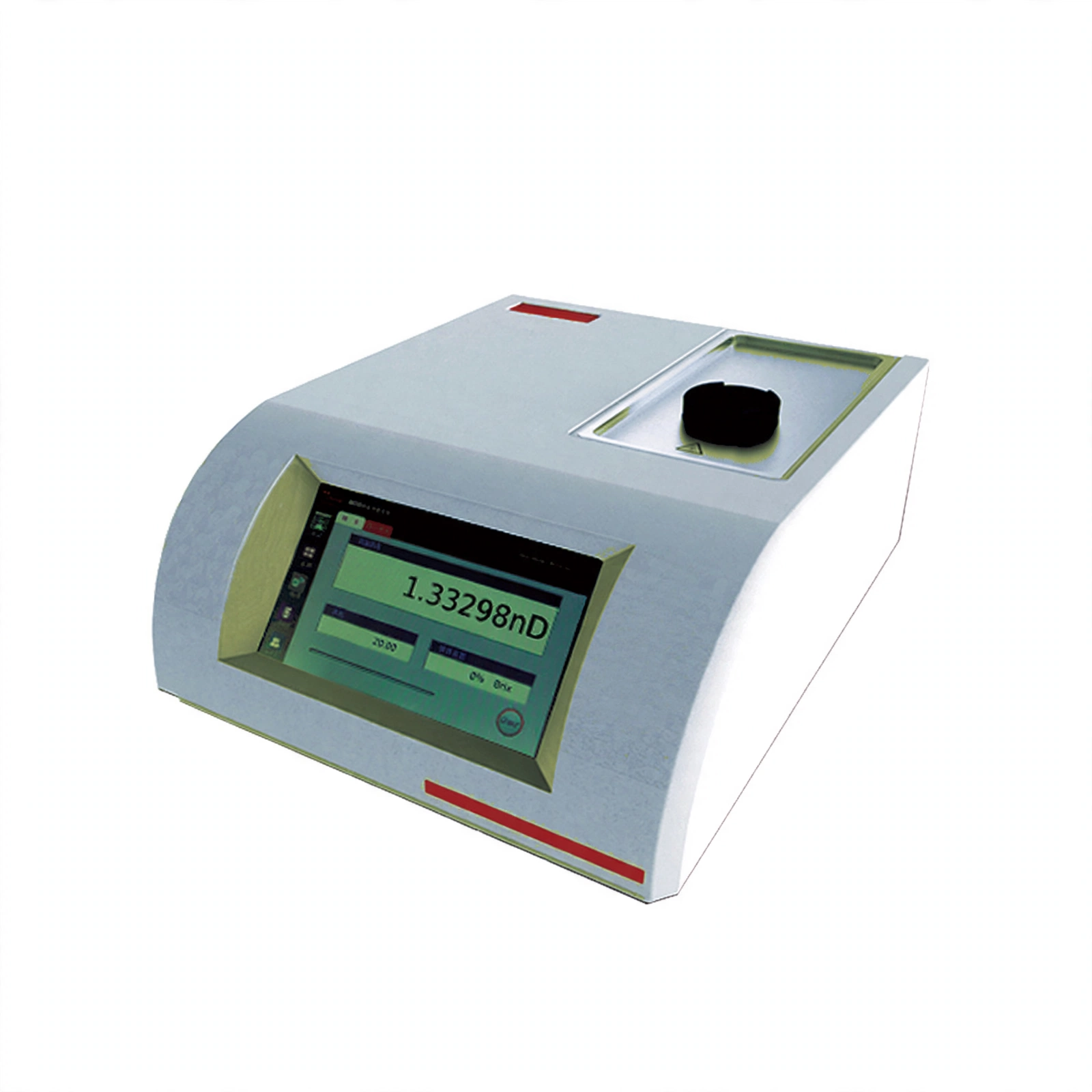

BK-R670 Automatic Refractometer Refractometers

Model BK-R670

BK-R670 Automatic Refractometer includes high-performance CCD light-sensitive part, can accurately and efficiently process sample analysis tests through unique signal acquisition, analysis and processing technology.

Power
45W
Dimensions
365*300*150mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Cloud service system, connecting cloud database with instruments.

2. 7”LCD touch screen and innovative WINDOWS software interface.

3. 2 USB ports, RS232 port and internet port for connecting printer or internet, U disk and SD card port for data exporting.

4. Perfect measuring prism

Measuring prism is made of high hardness sapphire glass, of excellent properties against corrosion and scratches, free for clean and durable.

5. Ultra long life light source

It adopts High brightness LED lights with service life exceeding 100000 hours

6. Auto temperature control system

It adopts Peltier temperature control system, make sure the whole testing with accuracy and constant temperature.

Technical Parameters:

Model BK-R670-FL
Refractive Index Measuring Range  1.30000~1.70000nD
Measuring Error  ±0.0001nD
Measuring Resolution  0.0001/0.00001(Optional)
Brix Measuring Range 0~100%
Measuring Error (Brix) ±0.1%
Measuring Resolution (Brix) 0.1%/0.01%(Optional)
Temperature Control Mode Peltier temperature controller
Temperature Display

Range

 0~100℃
Temperature Control Range 5~80 ℃
Temperature Control Accuracy ±0.02℃
Interface RS232, USB, Ethernet interface
Data Storage Capacity 4G
Display 7’’TFT LCD touch screen
Power Consumption 45W
Power Supply AC110V/220V±10%, 50/60HZ
External Size(W*D*H) 365*300*150mm
Packing Size(W*D*H) 490*420*300mm
Gross Weight 8kg
The details

Specifications

Model
BK-R670
Refractive Index Measuring Range
1.30000~1.70000nD
Measuring Error
±0.0001nD
Measuring Resolution
0.0001/0.00001(Optional)
Brix Measuring Range
0~100%
Measuring Error (Brix)
±0.1%
Measuring Resolution (Brix)
0.1%/0.01%(Optional)
Temperature Control Mode
Peltier temperature controller
Temperature DisplayRange
0~100℃
Temperature Control Range
5~80 ℃
Temperature Control Accuracy
±0.02℃
Interface
RS232, USB, Ethernet interface
Data Storage Capacity
4G
Display
7’’TFT LCD touch screen
Power Consumption
45W
Power Supply
AC110V/220V±10%, 50/60HZ
External Size(W*D*H)
365*300*150mm
Packing Size(W*D*H)
490*420*300mm
Gross Weight
8kg
