Blood Bank Instruments

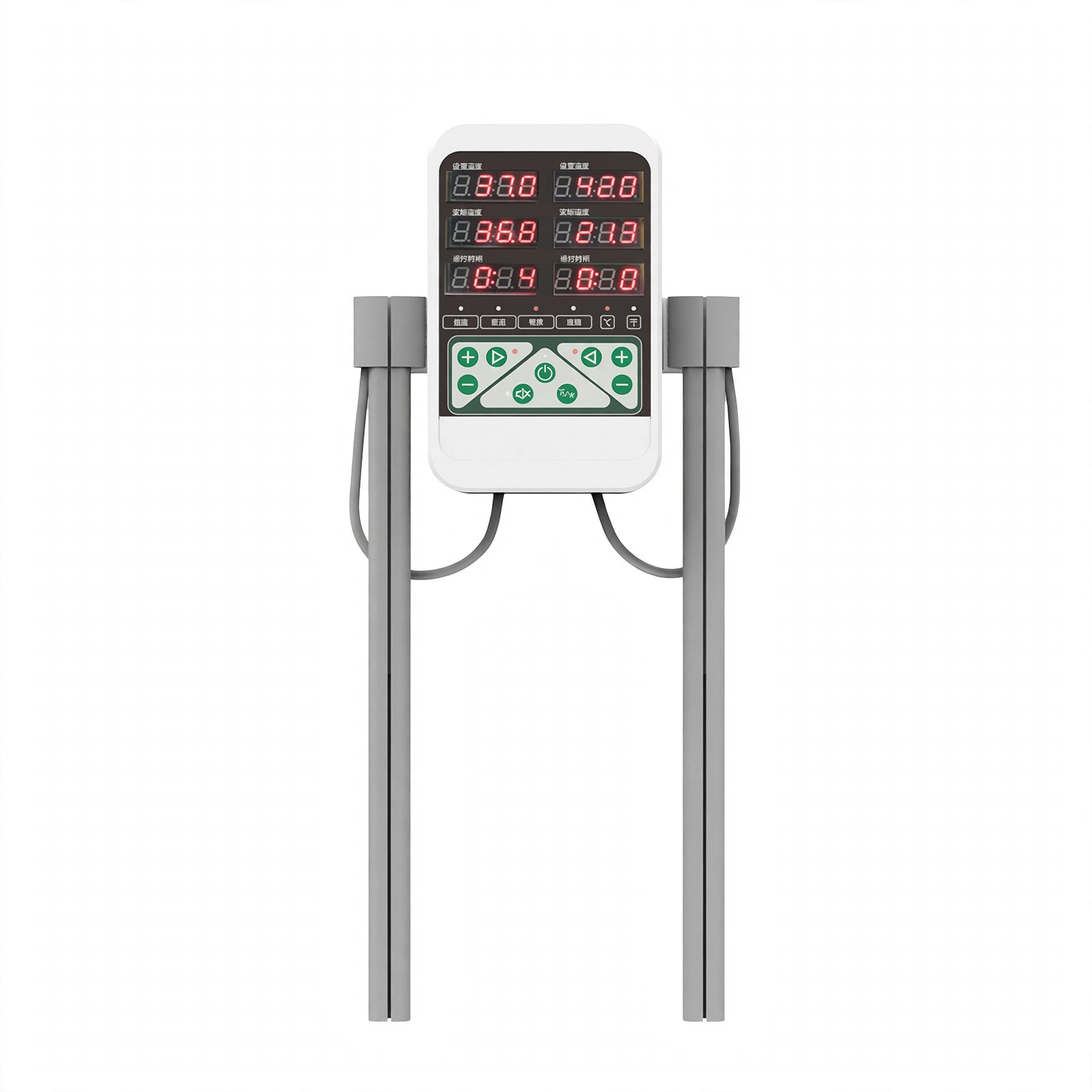

Blood and Fluid Warmer

Model BK-TW201 BK-TW101 BK-TW102 Blood & clinical Refrigerated

By heating the continuous flow of liquid, the heat in the heat exchanger is transferred to the liquid in the pipe through the extended infusion pipeline to achieve the purpose of heating the liquid. The product is not in contact with the liquid. It is not used for the heating of analgesics, chemotherapy drugs, insulin and other drugs.

Temperature
32~42℃ / RT+5~45℃ / R…
Power
180W / 120W / 85W
Net weight
0.8kg / 0.7kg / 0.5kg
Dimensions
104*45*170mm / 94*45*…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The temperature accuracy of instrument is ±0.1℃.

2. Preheating time is less than 2 minutes, rapid heating reduces waiting time.

3. With door opening alarm, high and low temperature alarm devices that trigger when the monitored temperature deviates by 0.5℃ from the set point, with a flashing alarm light and an accompanying beep signal(BK-TW102).

4. With high temperature alarm, low temperature alarm, system error alarm, overtime alarm, heating promps(BK-TW101/201).

5. The protection level against water intrusion is IPX I type, water drops falling vertically have no harmful effects.

6. With dual hardware and software triple temperature protection, ensuring safe use of the equipment.

7. The heating instrument operates at a noise level of ≤65dB(A) during normal operation.

8. Two temperature units are available, which can be switched between degrees Celsius and degrees Fahrenheit.

9. Medical-grade heating silicone tubes ensure safe use, wrapping the entire pipeline to deliver effective temperature directly to the patient, with a variety of tube diameters and lengths available for selection(BK-TW101/201).

Technical Parameters:

Model BK-TW201 BK-TW101 BK-TW102
Display

LCD display

LED display
Temp. Range

32~42℃

RT+5~45℃
Temp. Resolution

0.1℃

Temp. Fluctuation

±0.5℃

Temp. Uniformity

/

±1.0℃
Preheating Time

≤2min

≤2min (From 25±2℃ to 35℃)
Environment Temperature

5~40℃

5~30℃
Temp. Error

±0.5℃

±1.0℃
Timing Range

0~99h/Continuous

Consumption 180W 120W 85W
Power Supply

AC100~240V, 50/60Hz

External Size(W*D*H) 104*45*170mm 94*45*170mm 77*35*177mm
Packing Size(W*D*H)

355*260*230mm

250*205*100mm
Net Weight 0.8kg 0.7kg 0.5kg
Gross Weight 2.0kg 1.9kg 1.1kg
The details

Specifications

Model
BK-TW201 / BK-TW101 / BK-TW102
Display
LCD display / LED display / LED display
Temp. Range
32~42℃ / RT+5~45℃ / RT+5~45℃
Temp. Resolution
0.1℃
Temp. Fluctuation
±0.5℃
Temp. Uniformity
/ / ±1.0℃ / ±1.0℃
Preheating Time
≤2min / ≤2min (From 25±2℃ to 35℃) / ≤2min (From 25±2℃ to 35℃)
Environment Temperature
5~40℃ / 5~30℃ / 5~30℃
Temp. Error
±0.5℃ / ±1.0℃ / ±1.0℃
Timing Range
0~99h/Continuous
Consumption
180W / 120W / 85W
Power Supply
AC100~240V, 50/60Hz
External Size(W*D*H)
104*45*170mm / 94*45*170mm / 77*35*177mm
Packing Size(W*D*H)
355*260*230mm / 250*205*100mm / 250*205*100mm
Net Weight
0.8kg / 0.7kg / 0.5kg
Gross Weight
2.0kg / 1.9kg / 1.1kg
