CO₂ Incubator

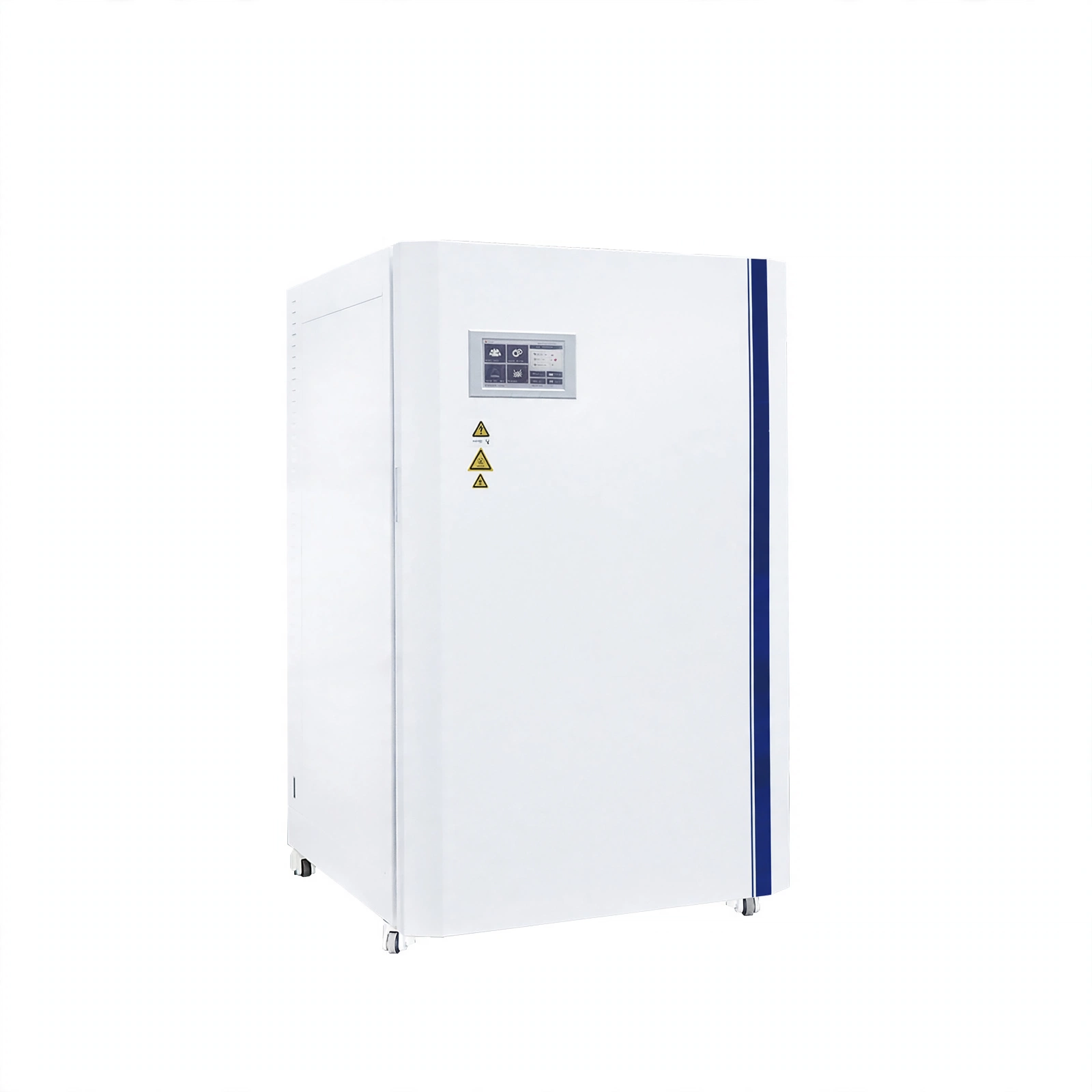

CO2 Incubator 100L 160L 200L 300L

Model BJPX-C100M BJPX-C160M BJPX-C200M BJPX-C300M Refrigerated

The CO2 incubator simulates the growth environment of cells/tissues in vivo by simulating in the incubator. The incubator requires a stable temperature(37°C), a stable CO2, level(5%), a constant pH(pH: 7.2~7.4), and a high relative saturated humidity(95%). It is a device for cell/tissue culture in vitro.

Capacity
100L / 160L / 200L /…
Temperature
RT+5~60℃
Power
800W / 820W / 840W /…
Net weight
95kg / 110kg / 130kg…
Dimensions
632*740*894mm / 682*7…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Application:

It is suitable for a wide range of fields such as cytology, biology, oncology, genetics, immunology, virus research and genetic engineering research. It is an ideal device for the cultivation of cells, tissues and bacteria in scientific research units and industrial production departments such as biochemistry and agricultural science.

Features:

1. IR infrared sensor, using dual-channel dual-filter infrared technology.

2. The design of multiple small doors reduces the amount of air exchange between the outside space and the inside of the incubator during the opening process.

3. Inner tank is made of 304 mirror finish stainless steel, featuring a semi-circular corner design for faster and more effective bottom cleaning and sterilization.

4. The design of the 3D airflow channel ensures uniform CO2 distribution, enhancing the accuracy of IR sensor data collection.

5. The interior is heated uniformly by aluminum foil-wrapped silicone heating wires, ensuring rapid temperature increase and excellent uniformity.

6. High quality HEPA filter ensures the inside gas quality.

7. SMC brand solenoid valves ensure more stable gas concentration and less consumption of gas.

8. Equipped with leakage current and over-voltage protectors. Features over-temperature, under-temperature, over-concentration and under-concentration alarms.

9. The water reservoir in the bottom chamber ensures high humidity.

Technical Parameters:

Model BJPX-C100M BJPX-C160M BJPX-C200M BJPX-C300M
Type Medical series, air jacket
Sterilization Type 90℃ moist heat sterilization
Capacity 100L 160L 200L 300L
Temp. Sensor PT100
Temp. Range RT+5~60℃
Temp. Fluctuation ±0.3℃(@37℃)
Temp. Uniformity ±0.5℃(@37℃)
Temp. Precision 0.1℃
Timing Range 0~999h or continuous
Display 7-inch touch screen
CO2 Control IR infrared sensor with calibration certificate
CO2 Range 0~20vol%
CO2 Uniformity 0.2vol%
CO2 Control Resolution 0.1vol%
Ambient Temperature and Humidity Ambient Temperature: 5~30℃(Recommendation: 25±2℃)
Ambient Humidity: ≤80%
Filter CO2 gas filter
Power Supply AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)(External transformer)
Wiring Method: plug
Consumption 800W 820W 840W 1800W
Shelves 2pcs, adjustable 3pcs, adjustable
Standard Accessories Shelves, USB interface, CO2 relief valve, CO2 gas filter
Optional Accessory Three-way connector, gas cylinder switching module, stacking rack
Internal Size(W*D*H) 407*415*615mm 457*470*753mm 505*470*857mm 567*500*1068mm
External Size(W*D*H) 632*740*894mm 682*796*1030mm 730*796*1134mm 792*830*1344mm
Package Size(W*D*H) 757*865*1055mm 807*921*1190mm 855*921*1294mm 917*955*1504mm
Net Weight 95kg 110kg 130kg 185kg
Gross Weight 120kg 135kg 155kg 210kg
The details

Specifications

Model
BJPX-C100M / BJPX-C160M / BJPX-C200M / BJPX-C300M
Type
Medical series, air jacket
Sterilization Type
90℃ moist heat sterilization
Capacity
100L / 160L / 200L / 300L
Temp. Sensor
PT100
Temp. Range
RT+5~60℃
Temp. Fluctuation
±0.3℃(@37℃)
Temp. Uniformity
±0.5℃(@37℃)
Temp. Precision
0.1℃
Timing Range
0~999h or continuous
Display
7-inch touch screen
CO2 Control
IR infrared sensor with calibration certificate
CO2 Range
0~20vol%
CO2 Uniformity
0.2vol%
CO2 Control Resolution
0.1vol%
Ambient Temperature and Humidity
Ambient Temperature: 5~30℃(Recommendation: 25±2℃)
Ambient Temperature and Humidity
Ambient Humidity: ≤80%
Filter
CO2 gas filter
Power Supply
AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)(External transformer)
Power Supply
Wiring Method: plug
Consumption
800W / 820W / 840W / 1800W
Shelves
2pcs, adjustable / 3pcs, adjustable / 3pcs, adjustable / 3pcs, adjustable
Standard Accessories
Shelves, USB interface, CO2 relief valve, CO2 gas filter
Optional Accessory
Three-way connector, gas cylinder switching module, stacking rack
Internal Size(W*D*H)
407*415*615mm / 457*470*753mm / 505*470*857mm / 567*500*1068mm
External Size(W*D*H)
632*740*894mm / 682*796*1030mm / 730*796*1134mm / 792*830*1344mm
Package Size(W*D*H)
757*865*1055mm / 807*921*1190mm / 855*921*1294mm / 917*955*1504mm
Net Weight
95kg / 110kg / 130kg / 185kg
Gross Weight
120kg / 135kg / 155kg / 210kg
