Dispenser

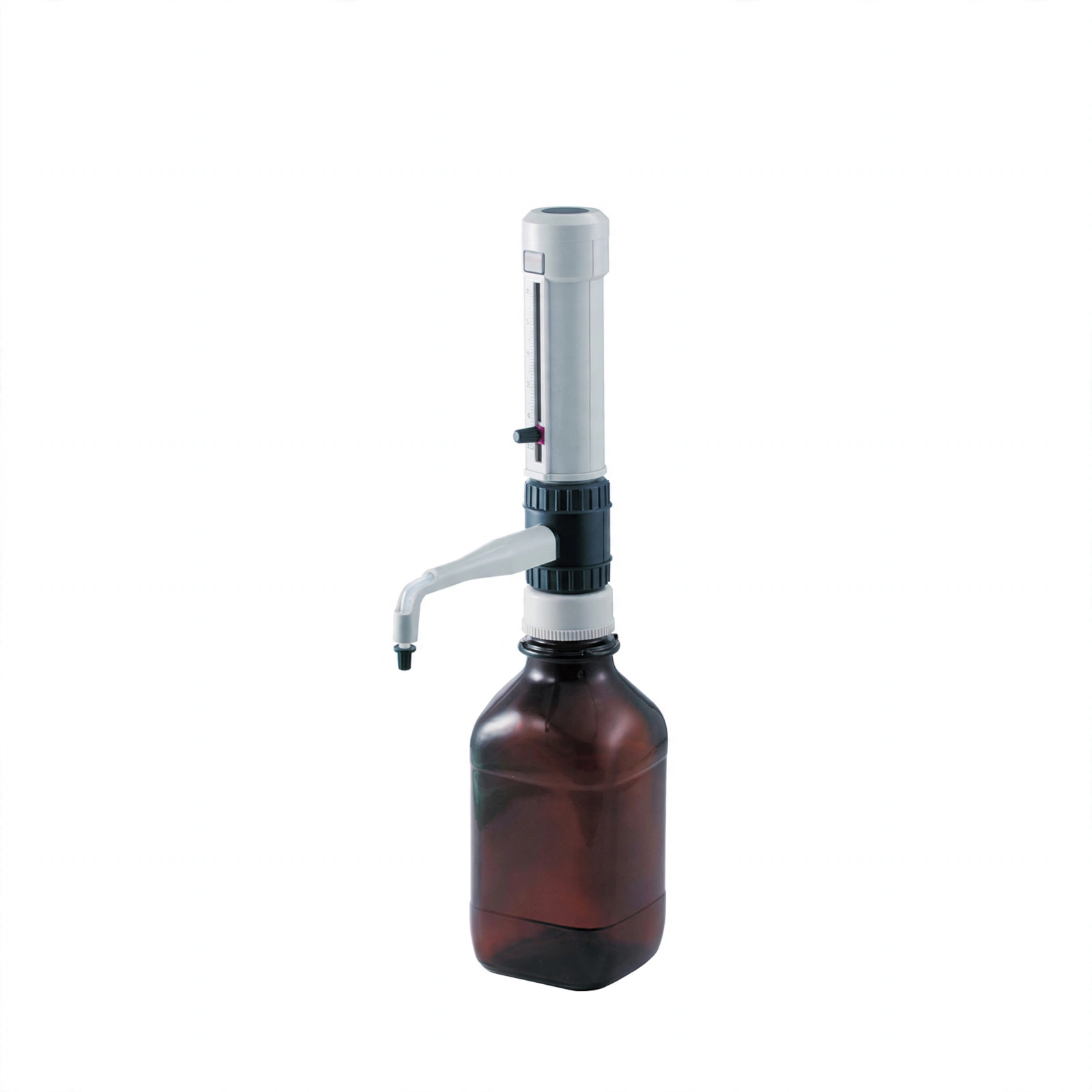

DispensMate Bottle-Top Dispenser

The DispensMate Bottle-Top Dispenser is a high-performance, user-friendly device designed to deliver precise and controlled dispensing of liquids directly from the bottle-top.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Excellent chemical resistance.

2. Fully autoclavable at 121°C.

3. Easy to clean and maintain.

4. Made of PTFE、FEP、BSG、PP.

5. Four ranges of bottle-top dispenser cover a volume range from 0.5ml to 50ml.

6. The optional flexible discharge tube with safety handle permits fast and precise dispensing.

7. Vapor pressure Max. 500mbar, viscosity max. 500mm2/S, temperature max. 40℃, density max. 2.2g/cm3.

8. DispensMate plus is supplied with S40, GL32, GL38, GL25, GL28 sized adapters.

Technical Parameters:

Volume
Range		 Graduation

A≤±

CV≤
0.5~5ml 0.1ml 0.5% 25μl 0.1% 5μl
1.0~10ml 0.2ml 0.5% 50μl 0.1% 10μl
2.5~25ml 0.5ml 0.5% 125μl 0.1% 25μl
5.0~50ml 1.0ml 0.5% 250μl 0.1% 50μl

A=Accuracy; CV=Coefficient of variation.

Ordering Information:

Cat. No. Volume Range
7012100101 0.5~5ml
7012100102 1~10ml
7012100103 2.5~25ml
7012100106 2.5~30ml
7012200104 5~50ml
7012100107 5~60ml
Cat. No. Volume Range

Standard Accessories
17000069 S40, Adapter, 45/40mm
17000817 GL32, Adapter, 45/32mm
17400132 GL38, Adapter, 45/38mm
17400133 GL25, Adapter, 32/25mm
17400134 GL28, Adapter, 32/28mm
17400021 Filling tube(m)
17100073 Discharge tube(m)

Optional Accessories
17400037 Reagent Bottle(Brown, 1L)
The details

Specifications

Cat. No.
Volume Range
7012100101
0.5~5ml
7012100102
1~10ml
7012100103
2.5~25ml
7012100106
2.5~30ml
7012200104
5~50ml
7012100107
5~60ml
