Gas Generator

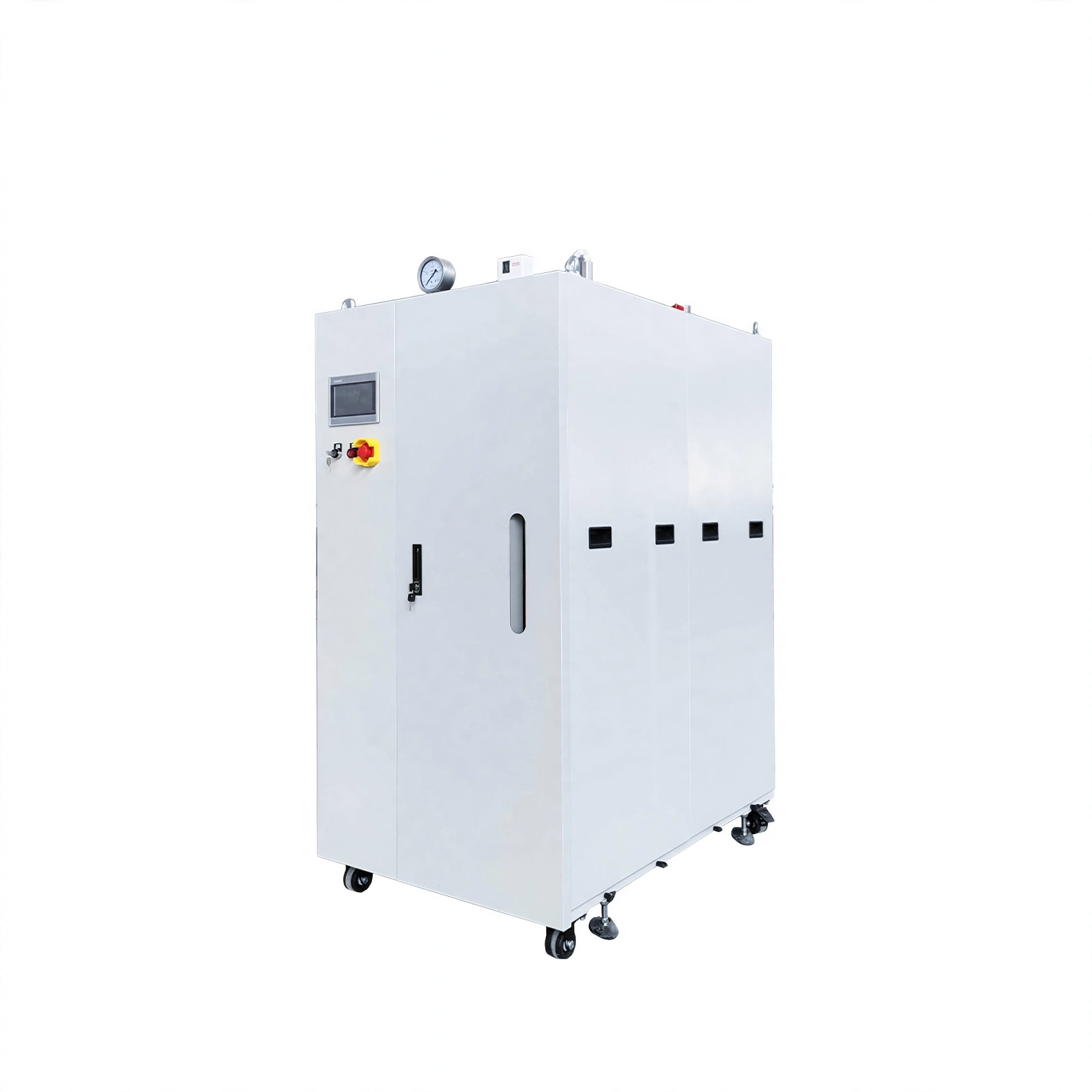

Electric Steam Generator

Model BK-ZFQ-96 BK-ZFQ-120 Compact & portable Electric

It is a device that converts water into steam by heating it with electrical energy. It features a compact structure and easy operation, and is widely used in industrial production and daily life scenarios

Dimensions
1315*880*1790mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Applications:

1. Hospital disinfection supply room: large sterilizer(without self-contained steam drum, external gas source is required).

2. Washing industry: washing machines, dryers and other equipment that require external steam.

3. Food machinery industry: Steam boxes and other equipment that require external steam.

4. Biomedicine: Reactors, fermentation tanks and other equipment that require external steam.

5. Bridge concrete maintenance, hot water supply for hotel bathing.

Features:

1. Safe and reliable.

2. High thermal efficiency.

3. Fast steam production.

4. Steam is cleaner.

5. Fully automatic control.

6. Multiple alarm protection.

Technical Parameters:

Model  BK-ZFQ-96 BK-ZFQ-120
Rated Steam Capacity  120kg/h 160kg/h
Rated Working Pressure 0.65MPa 0.65MPa
Rated Steam Temp 168℃ 168℃
Water Volume  23L 23L
Electric Heating Power 96KW 120KW
Power Supply

380V, 50Hz

External Size(W*D*H) 1315*880*1790mm 1315*880*1790mm
Packing Size(W*D*H) 1480*1030*2110mm 1480*1030*2110mm
Gross Weight 385kg 385kg
The details

Specifications

Model
BK-ZFQ-96 / BK-ZFQ-120
Rated Steam Capacity
120kg/h / 160kg/h
Rated Working Pressure
0.65MPa
Rated Steam Temp
168℃
Water Volume
23L
Electric Heating Power
96KW / 120KW
Power Supply
380V, 50Hz
External Size(W*D*H)
1315*880*1790mm
Packing Size(W*D*H)
1480*1030*2110mm
Gross Weight
385kg
How ordering works

From enquiry to delivery

  1. 01Send your enquiry

    Request a quote on WhatsApp, or add several items to your enquiry list and send them together.

  2. 02Confirm the details

    We confirm configuration, voltage, accessories, availability and a delivered price.

  3. 03We source and ship

    We handle procurement, packing and international shipping to your facility.

Need a different configuration?

Tell us the application, capacity or budget. We will suggest the right model or source an alternative.
