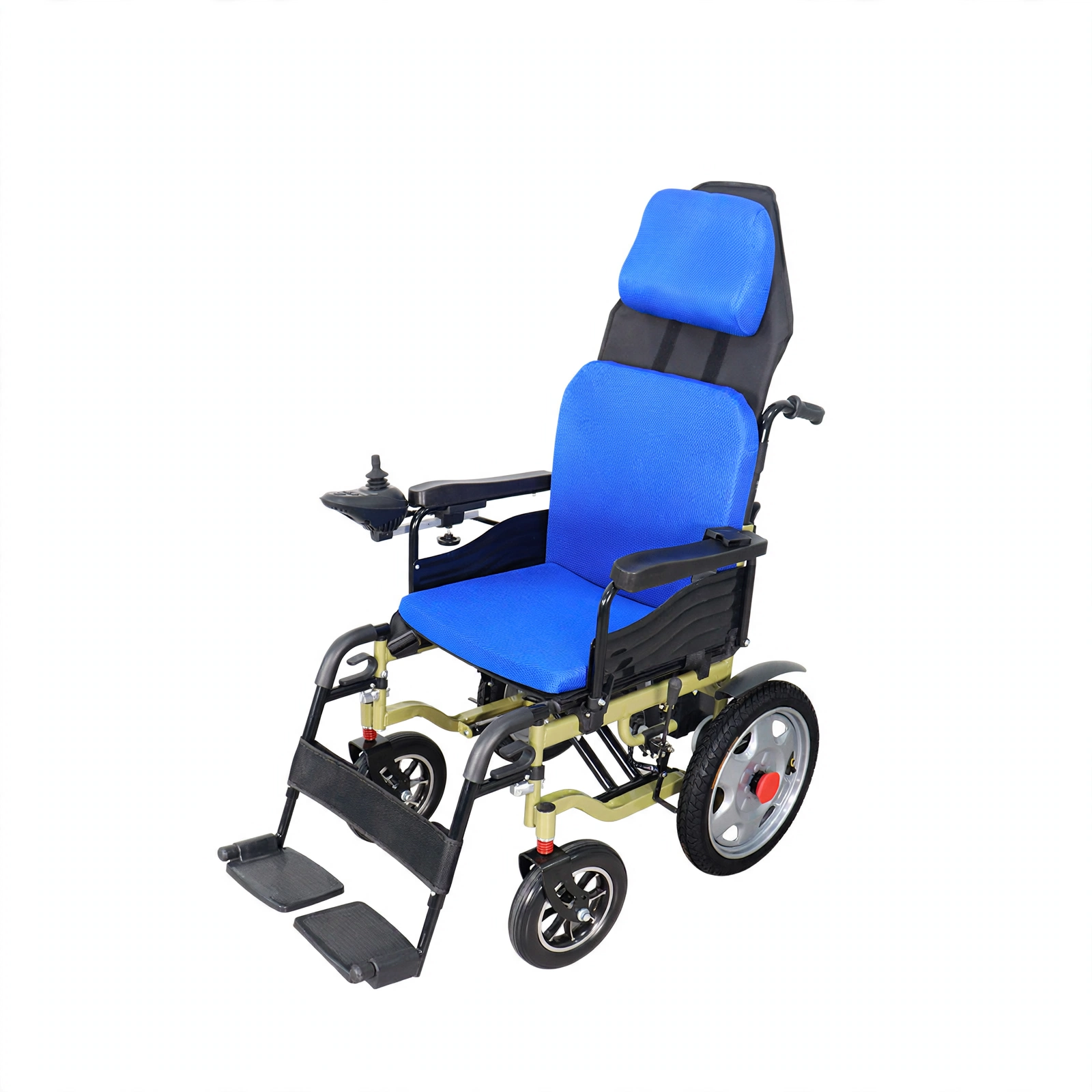

Electric Wheelchair MFW805BT MFW805CT MFW805DT MFW805ET

Model MFN805BT MFN805BTQ MFN805CT MFN805CTQ MFN805DT MFN805DTQ MFN805ET MFN805ETQ Electric

The electric wheelchair is designed for the elderly and the disabled, which is convenient for home life, travel, supermarket shopping, to make the life of patients more comfortable. It is suitable for home, hospital, nursing home.

Max. speed
4.5km/h
Max. load
120kg
Battery
Lithium battery Lead-…
Net weight
35.5kg / 38.5kg / 39k…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Humanized intelligent controller, 360° sensitive control, optional wireless telecontroller.

2. The front wheels are 10-inch aluminum alloy wheel with free-inflation PU tires, with good obstacle crossing ability and shock-absorbing function; the rear wheels are 16-inch inflation tires.

3. The high backrest is fixed so that users can not lie back.(MFN805BT/ETQ)

4. High backrest for pneumatic lying back and manual leg lifting.(MFN805CT/CTQ)

5. High backrest for electric lying back and electric leg lifting.(MFN805DT/DTQ)

6. Electric remote control high backrest for lying back and electric leg lifting.(MFN805ET/ETQ)

7. 250W high efficiency energy-saving dual motor.

8. Durable battery(Lead-acid or Lithium battery alternative), stable power supply performance, easy to disassemble.

9. High-elastic memory sponge back cushion, breathable and informable, comfortable and stable.

10. Detachable footrest, livable armrest and folding backrest, convenient to assemble and carry.

11. High-quality carbon steel frame, folded left and right, bearing 120kg without deformation, optional color can be customized.

Technical Parameters:

Model MFN805BT
MFN805BTQ		 MFN805CT
MFN805CTQ		 MFN805DT
MFN805DTQ		 MFN805ET
MFN805ETQ
Front Wheel Diameter

10 inches

 10 Inches
Rear Wheel Diameter

16 inches

 16 Inches
Seat Width

460mm
Seat Depth

400mm
Seat Height

575mm
Max. Speed

4.5km/h
Endurance Mileage

Standard: 12~15km

Optional: 20~25km
Climbing Ability

6°
Loading Capacity

120kg
Fold Mode

Manual
Battery

Lithium battery(MFN805BT, MFN805CT, MFN805DT, MFN805ET)
Lead-acid battery(MFN805BTQ, MFN805CTQ, MFN805DTQ, MFN805ETQ)

Standard: 24V12Ah, Optional: 24V20Ah
Motor

DC24V 250W*2, brush motor
Power Supply

AC100~240V, 50/60Hz
Controller

45A, brush controller
Charge Time

2A charger, 6~8h
Standard Accessory

250W*2 brush motor, Brush controller
Optional Accessory

Front wheel, Rear wheel, Controller, Remote control handle, Mobile APP
Unfold Size(W*D*H)

1130*650*1300mm
Net Weight(Not including charger and battery) 35.5kg 38.5kg 39kg 40.5kg
Package Size(W*D*H)

890*430*990mm
Gross Weight Standard:

44kg(MFN805BT)

48kg(MFN805BTQ)

Optional:

47kg(MFN805BT)

54kg(MFN805BTQ)

 Standard:

47kg(MFN805CT)

51kg(MFN805CTQ)

Optional:

50kg(MFN805CT)

57kg(MFN805CTQ)

 Standard:

47.5kg(MFN805DT)

51.5kg(MFN805DTQ)

Optional:

50.5kg(MFN805DT)

57.5kg(MFN805DTQ)

 Standard:

49kg(MFN805ET)

53kg(MFN805ETQ)

Optional:

52kg(MFN805ET)

59kg(MFN805ETQ)
The details

Specifications

Model
MFN805BTMFN805BTQ / MFN805CTMFN805CTQ / MFN805DTMFN805DTQ / MFN805ETMFN805ETQ
Front Wheel Diameter
10 inches / 10 Inches / 10 Inches / 10 Inches
Rear Wheel Diameter
16 inches / 16 Inches / 16 Inches / 16 Inches
Seat Width
460mm
Seat Depth
400mm
Seat Height
575mm
Max. Speed
4.5km/h
Endurance Mileage
Standard: 12~15kmOptional: 20~25km
Climbing Ability
6°
Loading Capacity
120kg
Fold Mode
Manual
Battery
Lithium battery(MFN805BT, MFN805CT, MFN805DT, MFN805ET)Lead-acid battery(MFN805BTQ, MFN805CTQ, MFN805DTQ, MFN805ETQ)Standard: 24V12Ah, Optional: 24V20Ah
Motor
DC24V 250W*2, brush motor
Power Supply
AC100~240V, 50/60Hz
Controller
45A, brush controller
Charge Time
2A charger, 6~8h
Standard Accessory
250W*2 brush motor, Brush controller
Optional Accessory
Front wheel, Rear wheel, Controller, Remote control handle, Mobile APP
Unfold Size(W*D*H)
1130*650*1300mm
Net Weight(Not including charger and battery)
35.5kg / 38.5kg / 39kg / 40.5kg
Package Size(W*D*H)
890*430*990mm
Gross Weight
Standard: 44kg(MFN805BT)48kg(MFN805BTQ)Optional:47kg(MFN805BT)54kg(MFN805BTQ) / Standard: 47kg(MFN805CT)51kg(MFN805CTQ)Optional:50kg(MFN805CT)57kg(MFN805CTQ) / Standard: 47.5kg(MFN805DT)51.5kg(MFN805DTQ)Optional:50.5kg(MFN805DT)57.5kg(MFN805DTQ) / Standard: 49kg(MFN805ET)53kg(MFN805ETQ)Optional:52kg(MFN805ET)59kg(MFN805ETQ)
