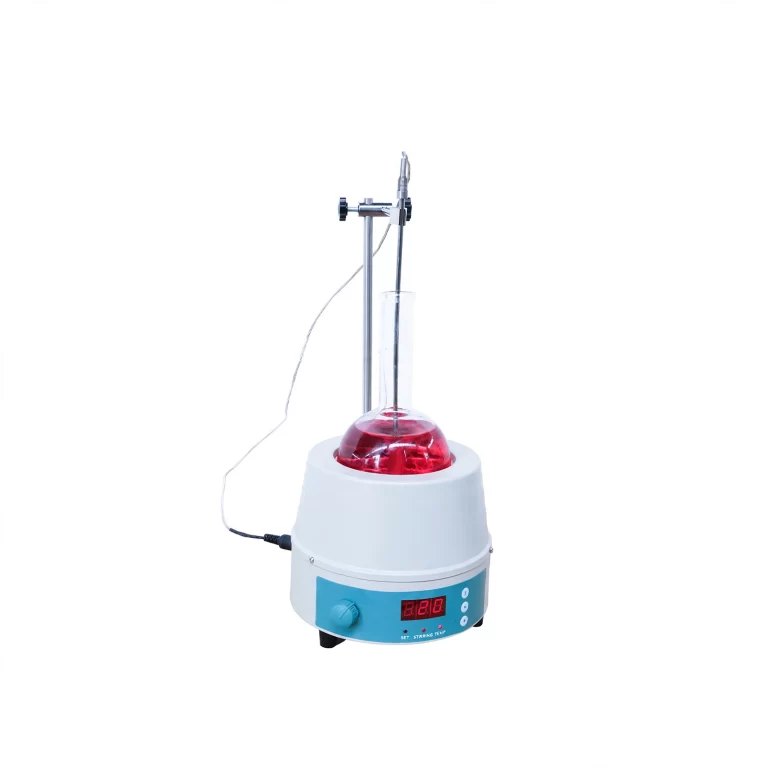

The Electronic&Digital Magnetic Stirring Heating Mantle is a multifunctional laboratory instrument that seamlessly combines heating, magnetic stirring, and precise digital control for efficient sample processing.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Electronic temperature regulation, stepless regulation.
2. Cold rolled steel plate, surface sprayed.
3. Thermal insulation cotton is high quality aluminum silicate cotton.
4. PID single digital temperature controller, can automatically control the temperature, digital display, fast heating, uniform temperature, accurate temperature control.(only for HMD-IIC)
5. PT100 temperature sensor, equipped with adjustable sensor bracket.(only for HMD-IIC)
Technical Parameters:
| Model |
HME-IB/HMD-IIC(LED display) |
|||||||||
| Capacity(ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
| Max. Temp |
450℃ |
|||||||||
| Working Time |
Continuous |
|||||||||
| Heating Power(kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 |
| Power Supply |
Standard: 200~240V, 50/60Hz Optional: 110V, 50/60Hz |
|||||||||
| External Size(mm) |
Φ200*165 |
Φ280*220 | Φ330*230 | Φ340*245 | Φ350*250 | Φ425*320 | Φ470*340 | |||
| Package Size(mm) |
230*230*195 |
290*290*300 | 340*340*350 | 360*360*300 | 390*390*310 | 430*430*350 | 510*510*380 | |||
| Net Weight(kg) |
2.5 |
5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 | |||
| Gross Weight(kg) |
2.8 |
6 | 7 | 8 | 9.2 | 12 | 20 | |||
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.

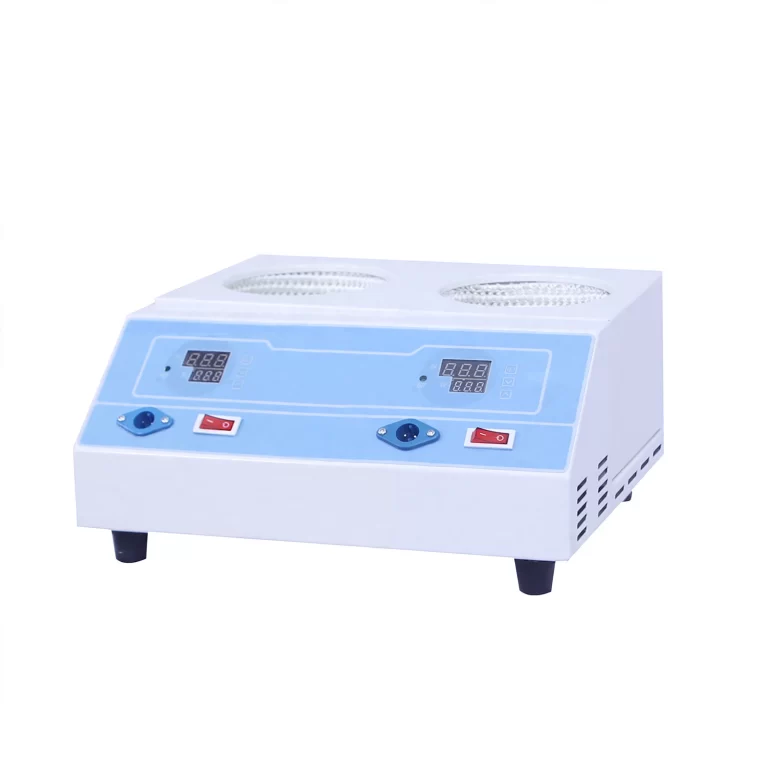

The Several Rows Electronic Control Heating Mantles are advanced laboratory heating devices designed to provide uniform and reliable heating for multiple sample vessels simultaneously.

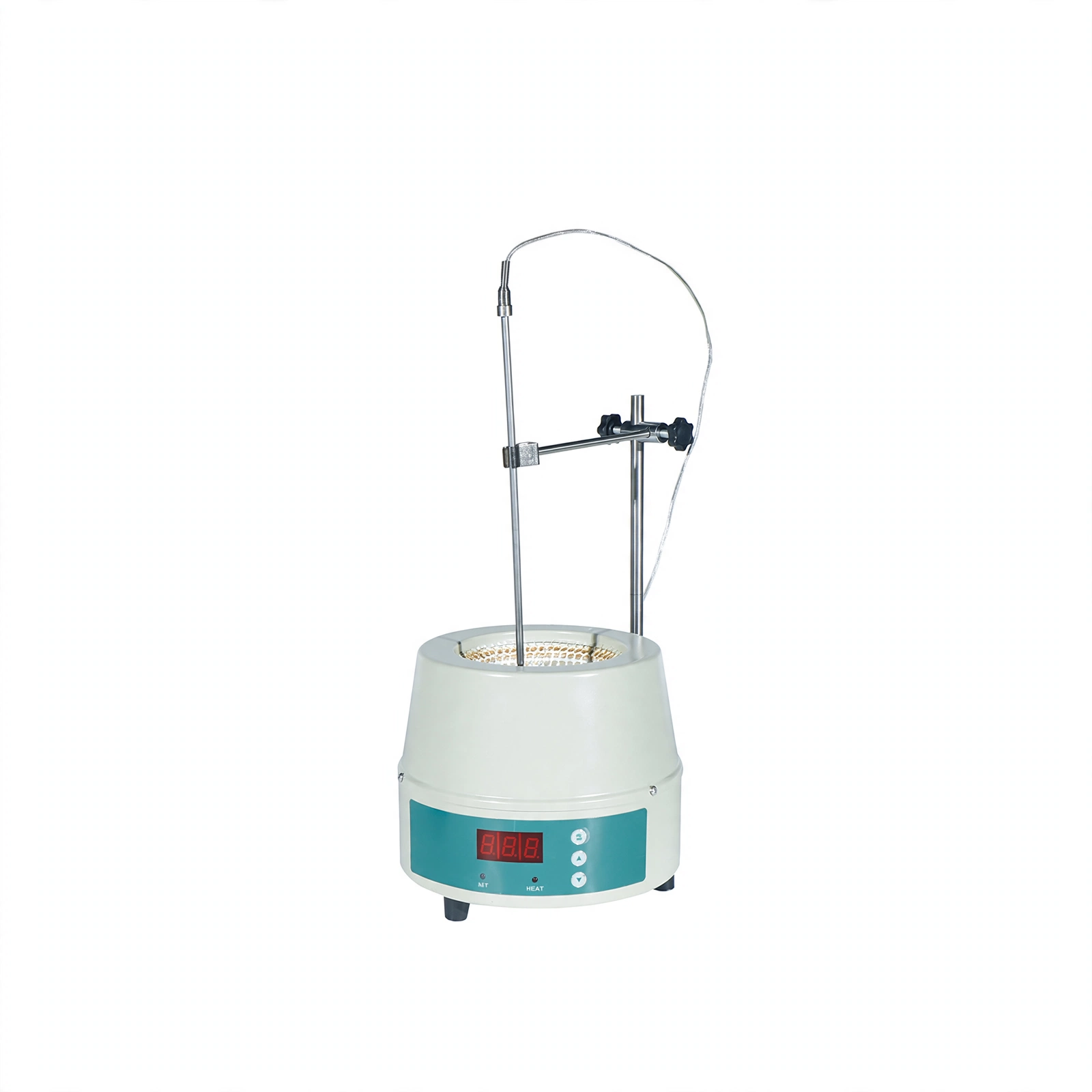

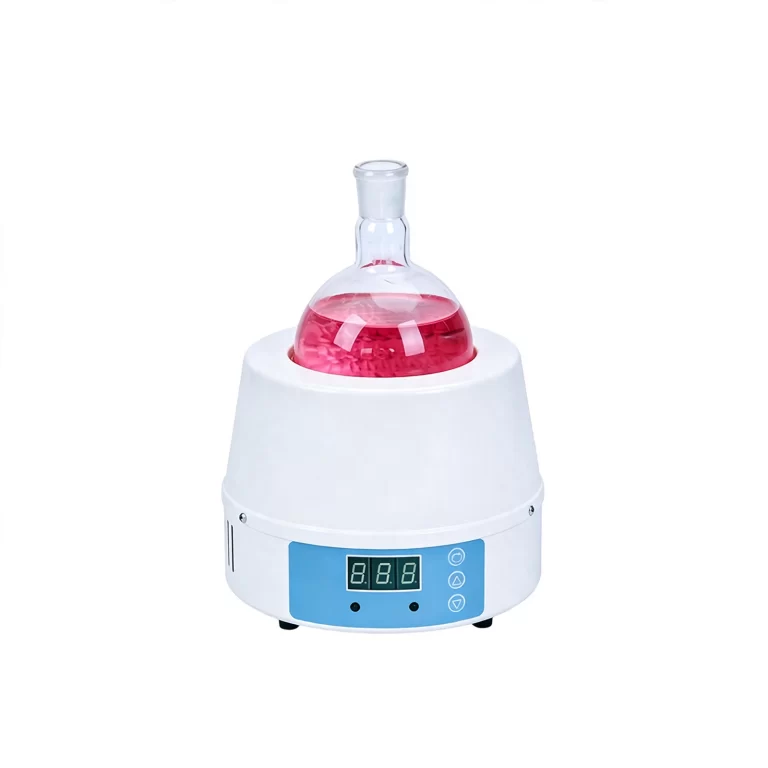

The Electronic&Digital Heating Mantles are advanced laboratory heating devices engineered to provide uniform and controlled heat for various types of glassware and sample containers.

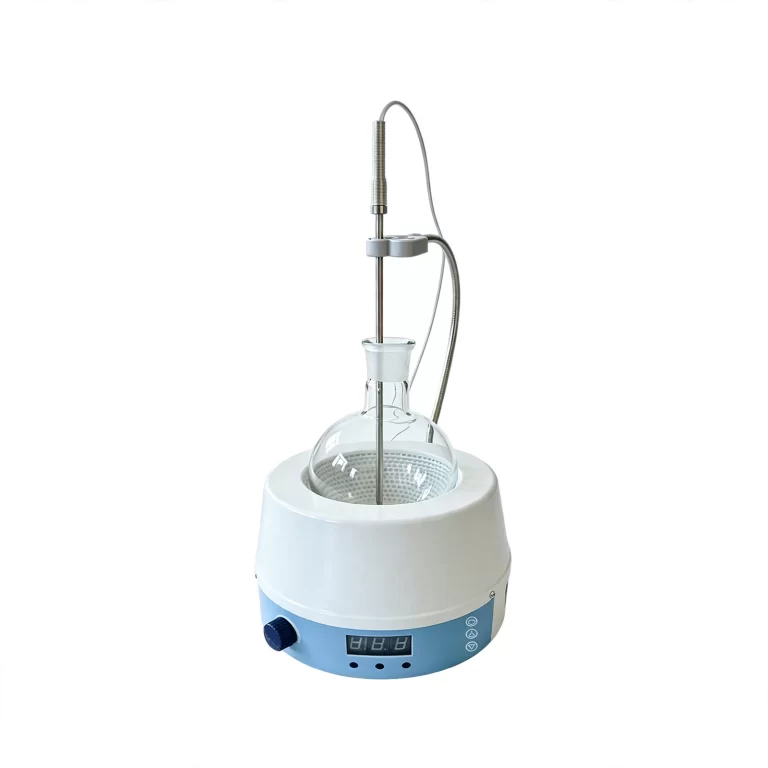

The Electronic&Digital Magnetic Stirring Heating Mantle is a multifunctional laboratory instrument that seamlessly combines heating, magnetic stirring, and precise digital control for efficient sample processing.
