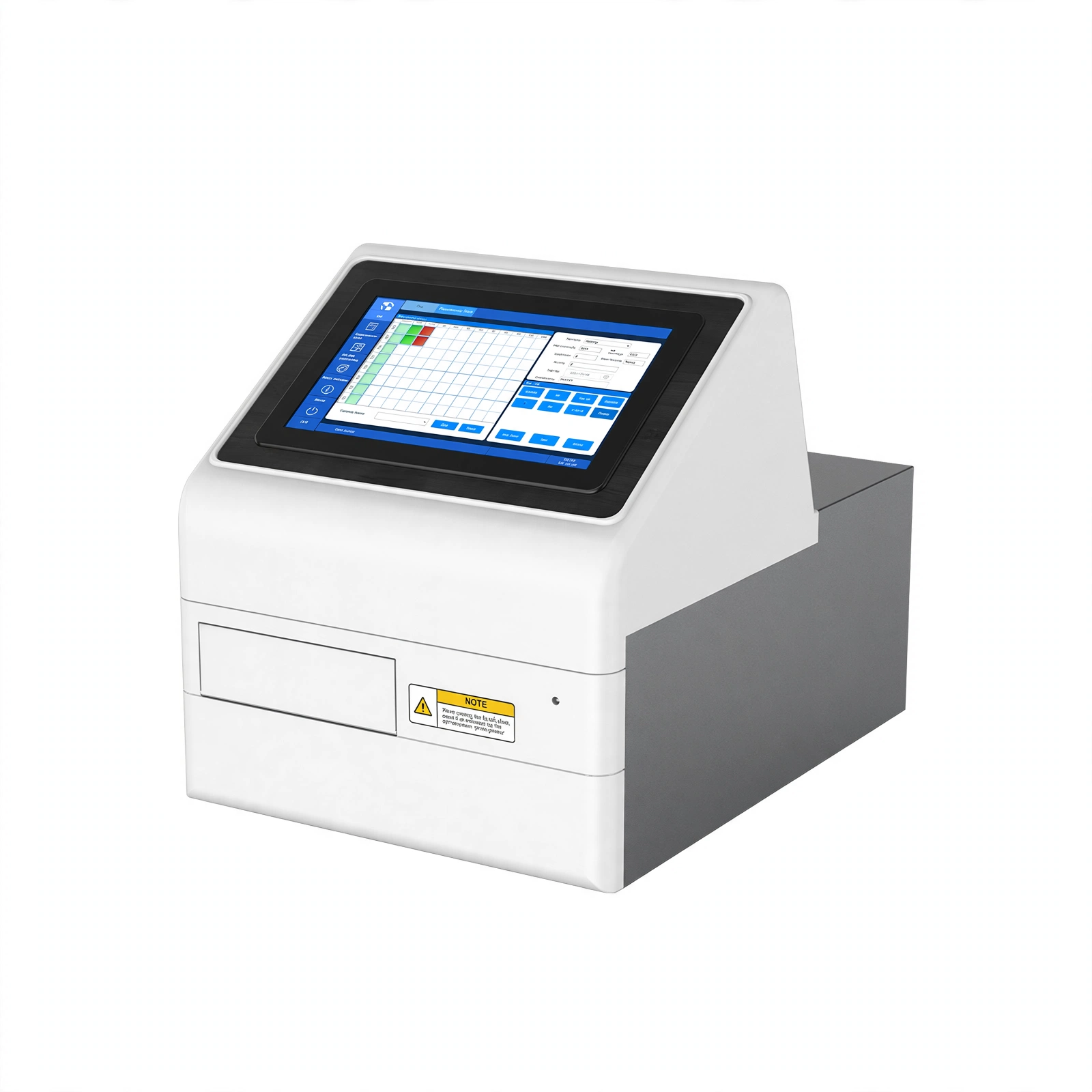

Elisa reader is a kind of analytical instrument widely used in biology, clinical and other fields.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. 10.1-inch large touch screen operation(Except BK-EL10B).
2. High precision and accurate results.
3. Software: Single wavelength and double wavelengths detection methods.
4. BK-EL10D is the Windows operating interface, and BK-EL10DA is the Android operating interface.
Technical Parameters:
|
Model |
BK-EL10A | BK-EL10B | BK-EL10C | BK-EL10D | BK-EL10DA | |
|
Measurement Channel |
Vertical 8 optical channels |
|||||
|
Plate Type |
96-well microplate |
|||||
|
Wavelength Range |
400~750nm |
340~850nm |
||||
|
Filter |
Standard 4 wavelengths of 405, 450, 492, 630nm (BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm (BK-EL10D, BK-EL10DA) Optional: Up to 10 wavelengths |
|||||
|
Linear Range |
0.000~3.000Abs |
0.000~3.500Abs |
||||
|
Reading Range |
0.000~4.000Abs |
|||||
|
Resolution |
0.0001Abs |
|||||
|
Repeatability |
CV≤0.2% |
|||||
|
Stability |
≤±0.003Abs/10min |
|||||
|
Sensitivity |
≥0.01L/mg |
|||||
|
Channel Difference |
≤0.02Abs |
|||||
|
Vibration Plate Function |
3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10D, BK-EL10DA) |
|||||
|
Incubation Function |
Time Range: 0~60min Temp. Range: RT+4°C~50°C (Only for BK-EL10D, BK-EL10DA) |
|||||
|
Software (Standard) |
Detection Mode |
Single/double wavelength |
||||
| Qualitative |
Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions |
|||||
| Quantitative |
Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms |
|||||
|
Others |
Display |
10.1-inch color touch capacitive screen (BK-EL10A, BK-EL10D, BK-EL10DA) 10.1-inch resistive touchscreen (BK-EL10C) |
||||
| Operating Mode |
Touch screen operation, equipped with capacitive stylus, EL10DAsupport for external keyboard and mouse (BK-EL10A, BK-EL10D, BK-EL10DA) |
|||||
| Printer(Optional) |
BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer( A4 printer can be optional) BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional) |
|||||
| Interface |
USB 2.0*4, RJ45 network port*1, RS-232*1 (BK-EL10A, BK-EL10D, BK-EL10DA) RS232 serial port (BK-EL10B) RS232*2 (standard RS232 to USB cable) (BK-EL10C) |
|||||
|
Power Supply |
AC100~240V, 50/60Hz |
|||||
|
Instrument Size(W*D*H) |
450*320*300mm | 450*320*190mm | 450*320*300mm |
495*340*370mm |
||
|
Package Size(W*D*H) |
540*400*460mm |
585*425*405mm |
610*440*475mm |
|||
|
Net/Gross Weight |
13/15kg | 10/12kg | 11/13kg |
12/14kg |
||
