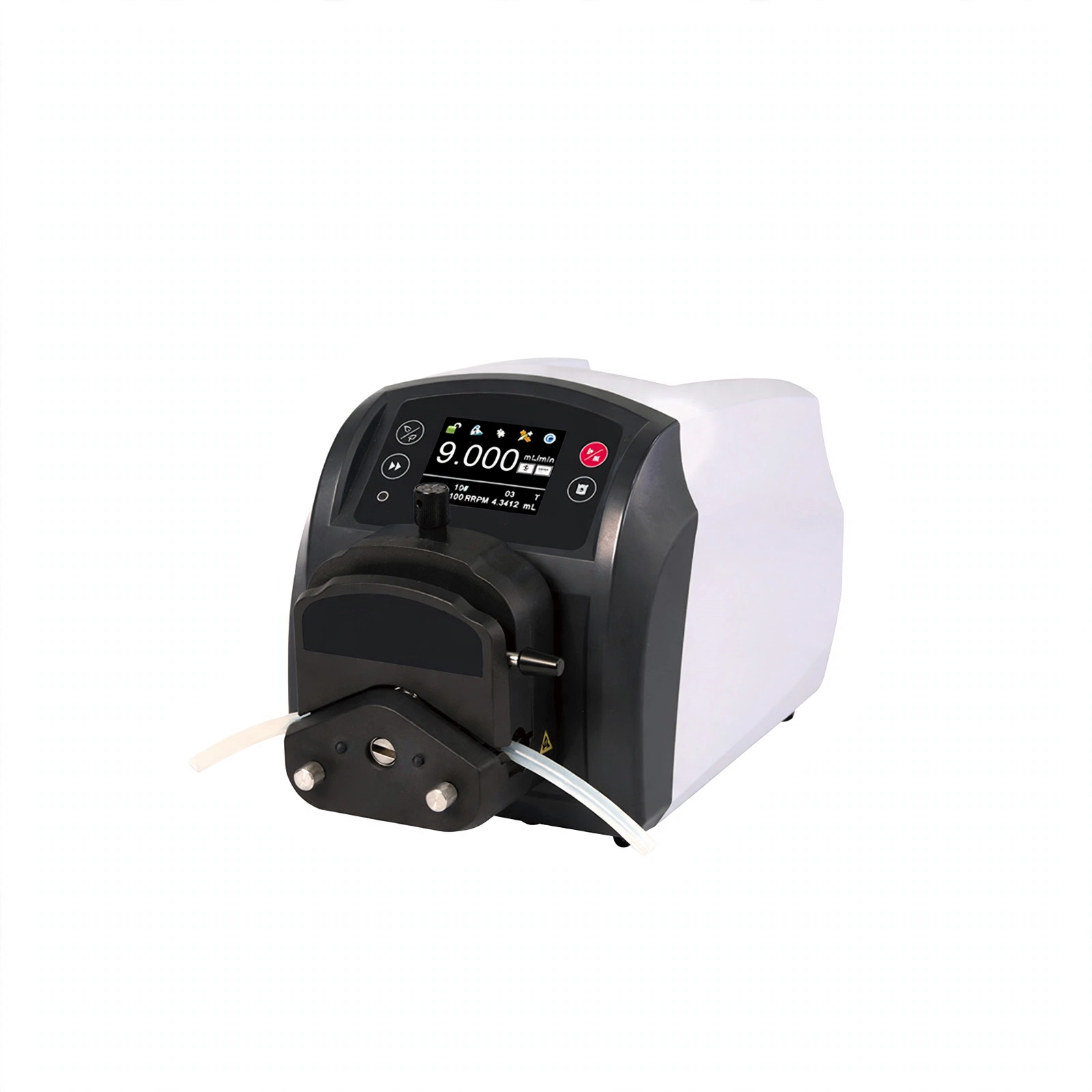

The Flow Rate Peristaltic Pump is a precision liquid transfer device designed to deliver consistent and controllable flow rates for various applications in laboratories, industrial processes, and medical settings.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Color LCD display, touch screen and keypad for operating.
2. LF-Touch-OS software system, efficient and stable, with good human-computer interaction mode, convenient product customization and upgrade.
3. Start/stop, reversible direction, full speed, adjust speed and state memory(power-down memory).
4. Speed resolution 0.1rpm.
5. Flow display, flow control and flow accumulation.
6. Flow calibration function.
7. Easy dispensing function, it realizes the repeat timing quantitative dispensing without the time controller.
8. Intelligent temperature control function to minimize peristaltic pump noise, 45 decibel super mute design.
9. External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator, external analog adjusts the rotate speed.
10. RS485 interface, MODBUS protocol is available, easy to connect other equipment.
11. The internal structure adopts double-deck isolation design, and the circuit board with conformal coating makes it dust-proof and moisture-proof.
12. Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
13. ABS plastic housing, creative streamlined appearance, concise and beautiful.
14. Can drive multi-channels and various types of pump heads.
Technical Parameters:
| Model | BT101L | BT301L | BT601L |
| Flow Range | 0.0001~720ml/min | 0.005~1750ml/min | 0.006~3000ml/min |
| Rotation Range | 0.1~150rpm | 0.1~350rpm | 0.1~600rpm |
| Speed Resolution |
0.1rpm |
||
| Speed Accuracy |
<±0.2% |
||
| Power Supply |
AC100~240V, 50Hz/60Hz |
||
| Power | <30W | <40W | <50W |
| External Control Interface |
External control input level 5V, 12V(standard), 24V(optional); External control analog 0~5V(standard), 0~10V, 4~20mA(optional) |
||
| Communication Interface |
RS485 communication, compatible with Modbus protocol |
||
| Working Environment |
Ambient temperature 0~40°C, relative humidity <80% |
||
| Protection Level |
IP31 |
||
| Overall Dimensions(L*W*H) |
261*180*197mm |
||
| Drive Weight | 4.5kg | 4.7kg | 4.9kg |
| Packing Size |
430*290*320mm |
||
| Gross Weight |
8kg |
||
Pump Head:
Applicable Pump Head, Hose& Flow Parameters
| Driver Model | Applicable Pump Head |
Number Of Channels |
Applicable Hose | Single Channel Flow Rate(ml/min) |
|
BT101L |
DG/DS(6 rollers) | 1, 2, 4 | Wall 0.8~1mm, ID≤3.17mm | 0.0002~49 |
| DG/DS(10 rollers) | 1, 2, 4 | Wall 0.8~1mm, ID≤3.17mm | 0.00011~32 | |
| YZ15T | 1, 2 | 13#14#19#15#25#17#18# | 0.005~641 | |
| YT25 | 1 | 114#116#15#24#35#36# | 0.024~750 | |
|
BT301L |
YZ15T | 1, 2 | 3#14#19#16#25#17#18# | 0.005~1495 |
| YT25 | 1 | 114#116#15#24#35#36# | 0.024~1750 | |
|
BT601L |
YZ15T | 1, 2 | 13#14#19#16#25#17#18# | 0.005~2562 |
| YT25 | 1 | 114#116#15#24#35#36# | 0.024~3000 |
Remark: Customers can choose any one model hose as the standard configuration and the standard length is 2 meters.
