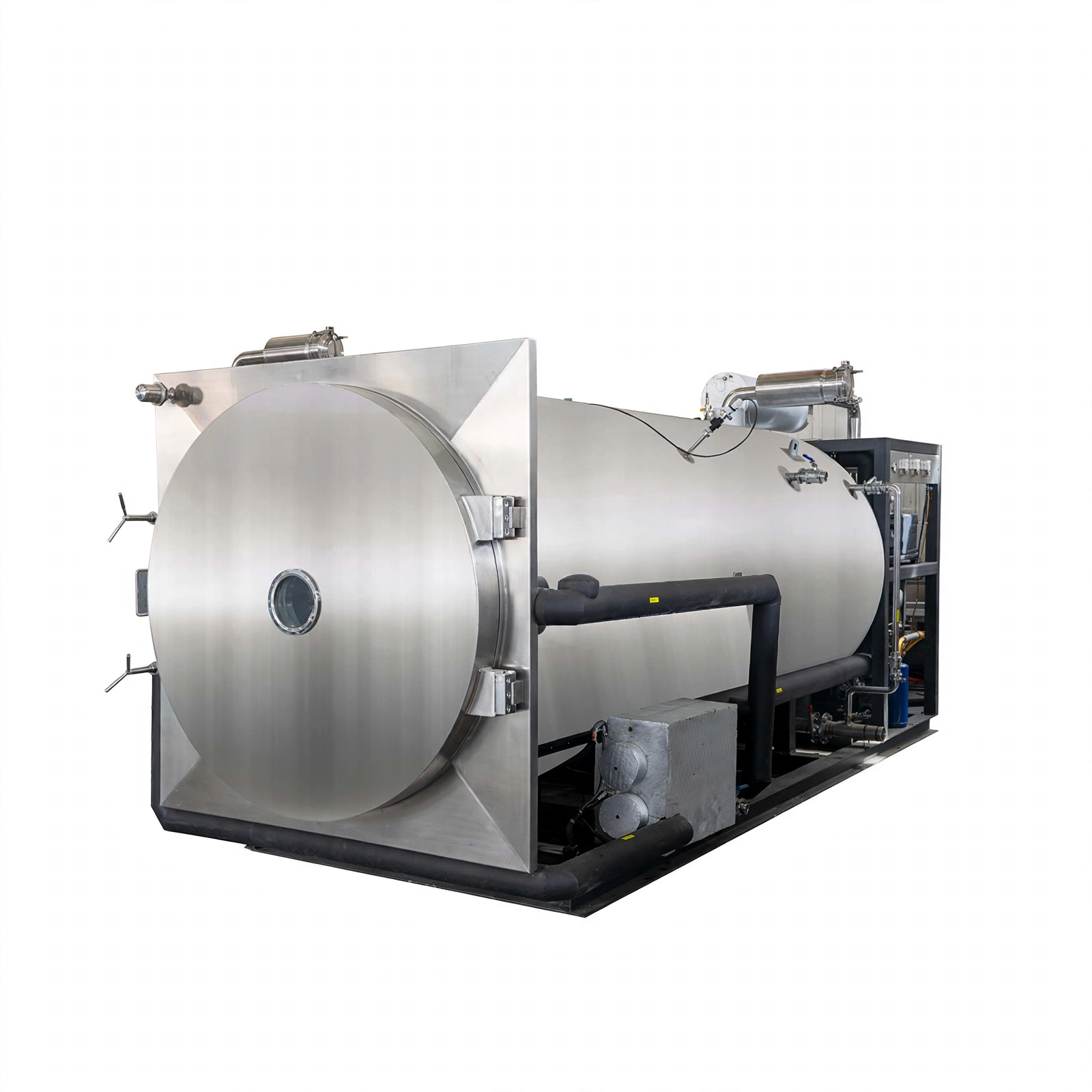

The Food Freeze Dryer is an advanced preservation device designed to remove moisture from food products while retaining their original flavor, color, and nutritional value. Ideal for both commercial and home use, this freeze dryer ensures the long-term storage of a wide variety of foods.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Application:
1. Food Preservation: Freeze drying is used to extend the shelf life of various food products, including fruits, vegetables, meats, and dairy, by removing moisture and preventing microbial growth.
2. Space Food: Freeze-dried foods are commonly used in space exploration due to their lightweight and long shelf life, ensuring astronauts have nutritious meals during missions.
3. Emergency Food: Freeze-dried food is a popular choice for emergency food storage because it remains edible for an extended period and requires minimal storage space.
4. Outdoor Activities: Freeze-dried meals are lightweight and convenient for hikers, campers, and backpackers, providing a source of nutrition while on outdoor adventures.
5. Ready-to-Eat Meals: Freeze-dried ingredients are used in the production of instant soups, noodles, and other ready-to-eat meals that require only hot water for preparation.
6. Dietary Supplements: Some dietary supplements, such as vitamins and probiotics, are freeze-dried to maintain their potency and ensure accurate dosing.
7. Pet Food: Freeze-dried pet food products are available, offering a convenient and nutritious option for pet owners.
Product Advantage
1. Aerospace-grade aluminum alloy partition material, good temperature uniformity.
2. High-efficiency mixed refrigerant medium with a lower freezing point and a higher boiling point, high heat exchange efficiency, and a long service life.
3. Optimization control algorithm for drying curves, allowing control of product heating rate and vacuum level during the drying stage.
4. Professional gas flow guidance design and control technology, strong water capturing capability, and high drying efficiency.
5. Industrial-grade embedded touchscreen + dedicated SH-HPSC-III modular controller, stable and reliable system, high control accuracy.
6. Professionally designed FD-MANAGER control system, capable of saving multiple sets of process formulas and adjusting processes in real-time during drying, enhancing process optimization.
7. Flexible manual + automatic control modes, manual mode for process experimentation, automatic mode for batch production.
8. Precise sensor calibration function to ensure the accuracy of process parameters during long-term use.
9. User-level and password settings for operation management with differentiated permissions.
10. Optional powerful upper computer control system, capable of recording, storing operational data, curves, and alarm records for up to ten years, improving product traceability; also convenient for observation, operation, and fault diagnosis.
11. Customization available based on user requirements.
Parameter:
| Model | BK-FFD5 | BK-FFD10 | BK-FFD20 | BK-FFD30 | BK-FFD50 | BK-FFD100 | BK-FFD200 |
| Freeze Drying Area | 5.1m2 | 10.2m2 | 21m2 | 30.3m2 | 50m2 | 100m2 | 200m2 |
| Vacuum Level |
≤10Pa |
||||||
| Cold Trap Temperature |
≤-55℃ |
||||||
| Maximum ice capacity(kg/B) | 80 | 160 | 320 | 480 | 800 | 1600 | 3200 |
| Shelf Temperature Range(℃) | -40～+90 | -40～+90 | -45～+90 | -45～+90 | RT～+90 | RT～+95 | RT～+95 |
| Shelf Size (mm) | 1650*624 | 1650*624 | 1750*936 | 1750*1248 | 2930*1248 | 5800*1200 | 12000*1200 |
| Number of Shelf Layers(pcs) | 5+1 | 10+1 | 13+1 | 14+1 | 14+1 | 15+1 | 15+1 |
| Loadable Materials(kg) | 50～75 | 100～150 | 200～300 | 300～450 | 500～750 | 1000～1500 | 2000～3000 |
| Pre-freezing method | In-situ freeze-drying | In-situ freeze-drying | In-situ freeze-drying | In-situ freeze-drying | Freezing chamber + 2 material carts | Freezing chamber + 4 material carts | Freezing chamber + 8 material carts |
| Dimensions(mm) | 2500*1800*2400 | 3200*1800*2400 | 4300*2500*2500 | 6000*2300*2700 | 10000*2750*3000;
3000*1800*2400; 1900*2000*2400 |
10000*2750*3000;
3000*1800*2400; 1900*2000*2400 |
13000*2750*3000;
3000*1800*2400 1900*2000*2400; |
| Power Supply |
AC380V 50Hz |
||||||
| Overall Power | 24kw | 45kw | 60kw | 90kw | 120kw | 200kw | 300kw |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
