Forced Air Drying Oven

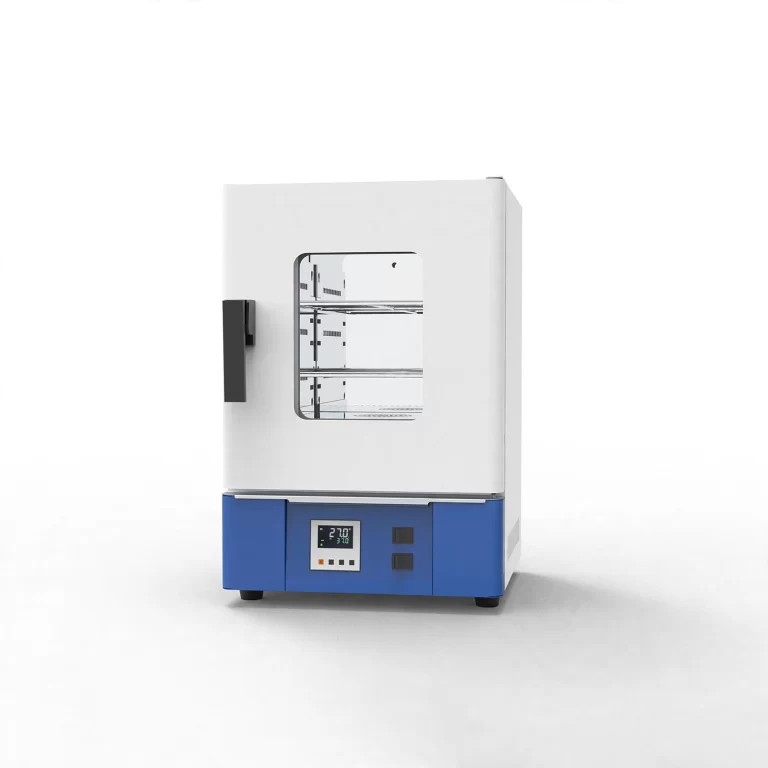

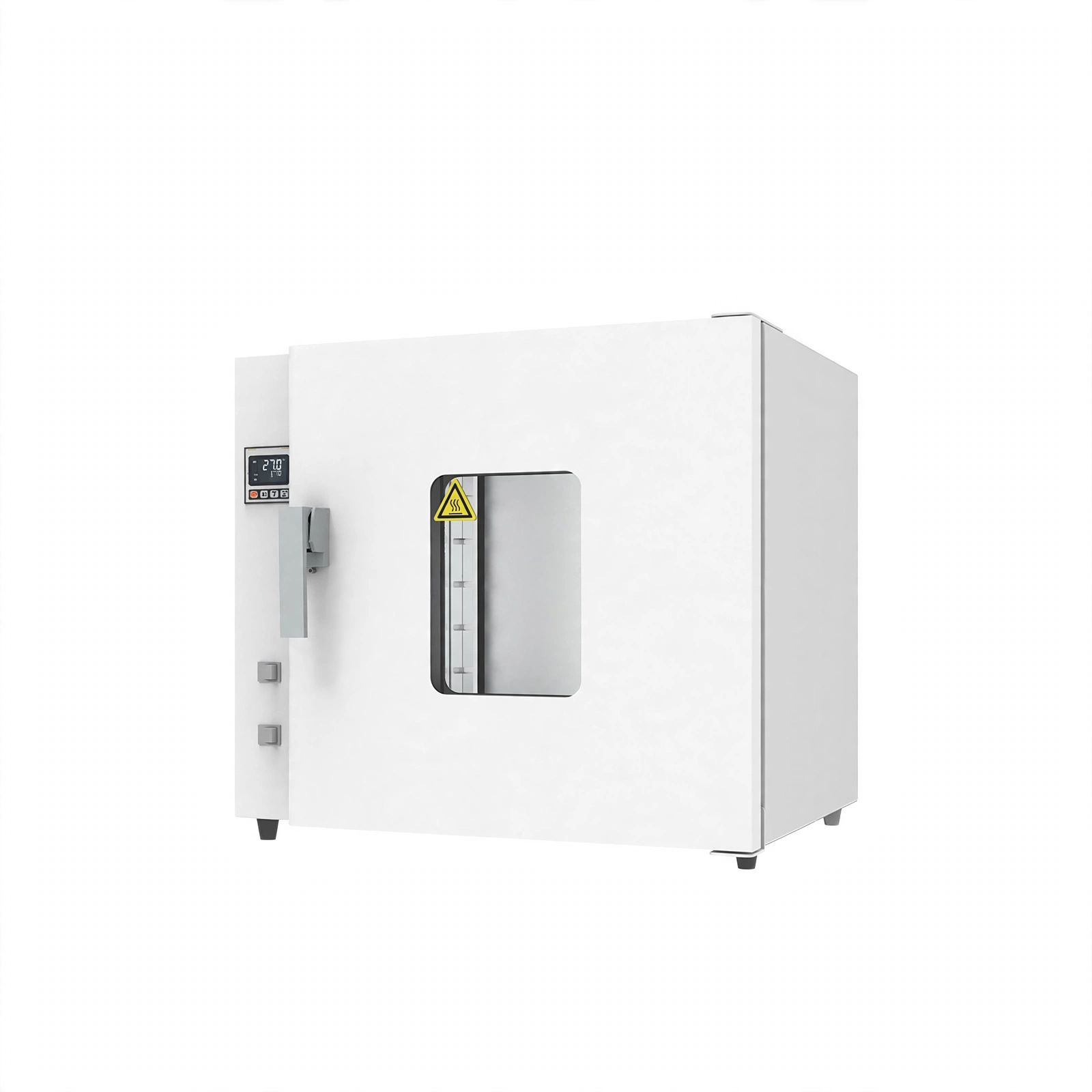

Forced Air Drying Oven BJPX-HG Series

Model BJPX-HGZ23 BJPX-HGZ45 BJPX-HGZ54 BJPX-HGZ75 BJPX-HGZ88 BJPX-HGZ138 BJPX-HGZ160 BJPX-HGZ225 BJPX-HGZ270 Refrigerated

Application: This product is used for drying, disinfecting, melting wax and sterilizing non-flammable and non-explosive items and non-volatile items in industrial and mining colleges and universities, enterprises, scientific research, food processing, medical institutions and various laboratories. For example, drying of experimental samples, food, glassware, thermal hardening, thermal denaturation, thermal softening and water removal of chemical substances, dry heat sterilization of instruments and utensils in bioengineering, aging and drying of electronic components, etc.

Capacity
23L / 30L / 45L / 54L…
Temperature
RT+10~300℃
Power
645W / 1000W / 1545W…
Net weight
35kg / 38kg / 40kg /…
Dimensions
500*540*410mm / 440*4…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. LCD display screen, with built-in temperature deviation calibration function.

2. The inner tank is made of high-quality stainless steel, with semi-circular four-corner design.

3. It has an over-temperature alarm system function to prevent damage to the instrument due to excessive temperature.

4. The unique thermal circulation circuit has a fan to form forced convection, so that the average temperature in the working room is better.

5. The perspective window structure design is convenient for observing the internal situation of the equipment.

6. Good thermal insulation performance and low surface temperature of the equipment.

Technical Parameters:

Model BJPX-HGZ23 BJPX-HGZ30L BJPX-HGZ45 BJPX-HGZ54 BJPX-HGZ75

BJPX-HGZ88
Capacity 23L 30L 45L 54L 75L

88L
Temp. Range

RT+10~300℃
Temp. Resolution

0.1℃
Temp. Fluctuation

±1℃
Temp. Uniformity

≤Max Temp.±2.5％
Circulation Mode

Forced convection
Timing Range 1~9999min/h or continuous 1~9999min/h

1~9999min/h or continuous
Shelves

2pcs

 3pcs
Display

LCD
Standard Accessories

Shelf
Optional Accessories Shelf, USB port, printer, RS485 Shelf, caster

Shelf, USB port, printer, RS485
Power Supply AC100~245V, 50/60Hz AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)

AC100~245V, 50/60Hz
Consumption 645W 1000W

1545W
Internal Size(W*D*H) 300*290*270mm 310*310*310mm 370*358*340mm 370*340*440mm 463*352*463mm

500*360*490mm
External Size(W*D*H) 500*540*410mm 440*495*670mm 600*630*520mm 600*620*630mm 690*630*615mm

730*640*660mm
Package Size(W*D*H) 650*660*580mm 550*580*830mm 720*710*730mm 720*710*730mm 830*700*800mm

830*700*800mm
Net Weight 35kg 38kg 40kg 43.5kg 47kg

50.5kg
Gross Weight 50kg 50kg 55kg 55kg 60kg

63kg
Model BJPX-HGZ138

BJPX-HGZ160

 BJPX-HGZ225 BJPX-HGZ270
Capacity 138L

160L

 225L 270L
Temp. Range

RT+10℃~300℃
Temp. Resolution

0.1℃
Temp. Fluctuation

±1℃
Temp. Uniformity

≤Max Temp.±2.5％
Circulation Mode

Forced convection
Timing Range

1~9999min/h or continuous
Shelves

3pcs
Display

LCD
Standard Accessories

Shelf
Optional Accessories

Shelf, USB port, printer, RS485
Power Supply

AC100~245V, 50/60Hz

AC220V, 50/60Hz(Standard);

110V, 50/60Hz(Optional, external transformer)
Consumption 1545W

2000W

3000W
Internal Size(W*D*H) 555*453*555mm

558*500*578mm

 600*520*728mm 660*590*700mm
External Size(W*D*H) 780*705*720mm

785*777*764mm

 826*780*900mm 900*880*890mm
Packing Size(W*D*H) 870*795*850mm

830*895*990mm

 946*850*1050mm 1010*946*1050mm
Net Weight 60kg

68.5kg

 77kg 86.5kg
Gross Weight 77kg

82kg

 92kg 100kg
The details

Specifications

Model
BJPX-HGZ23 / BJPX-HGZ30L / BJPX-HGZ45 / BJPX-HGZ54 / BJPX-HGZ75 / BJPX-HGZ88
Capacity
23L / 30L / 45L / 54L / 75L / 88L
Temp. Range
RT+10~300℃
Temp. Resolution
0.1℃
Temp. Fluctuation
±1℃
Temp. Uniformity
≤Max Temp.±2.5％
Circulation Mode
Forced convection
Timing Range
1~9999min/h or continuous / 1~9999min/h / 1~9999min/h or continuous / 1~9999min/h or continuous / 1~9999min/h or continuous / 1~9999min/h or continuous
Shelves
2pcs / 3pcs / 3pcs / 3pcs / 3pcs / 3pcs
Display
LCD
Standard Accessories
Shelf
Optional Accessories
Shelf, USB port, printer, RS485 / Shelf, caster / Shelf, USB port, printer, RS485 / Shelf, USB port, printer, RS485 / Shelf, USB port, printer, RS485 / Shelf, USB port, printer, RS485
Power Supply
AC100~245V, 50/60Hz / AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) / AC100~245V, 50/60Hz / AC100~245V, 50/60Hz / AC100~245V, 50/60Hz / AC100~245V, 50/60Hz
Consumption
645W / 1000W / 1545W / 1545W / 1545W / 1545W
Internal Size(W*D*H)
300*290*270mm / 310*310*310mm / 370*358*340mm / 370*340*440mm / 463*352*463mm / 500*360*490mm
External Size(W*D*H)
500*540*410mm / 440*495*670mm / 600*630*520mm / 600*620*630mm / 690*630*615mm / 730*640*660mm
Package Size(W*D*H)
650*660*580mm / 550*580*830mm / 720*710*730mm / 720*710*730mm / 830*700*800mm / 830*700*800mm
Net Weight
35kg / 38kg / 40kg / 43.5kg / 47kg / 50.5kg
Gross Weight
50kg / 50kg / 55kg / 55kg / 60kg / 63kg
