Medicine Stability Test Chamber

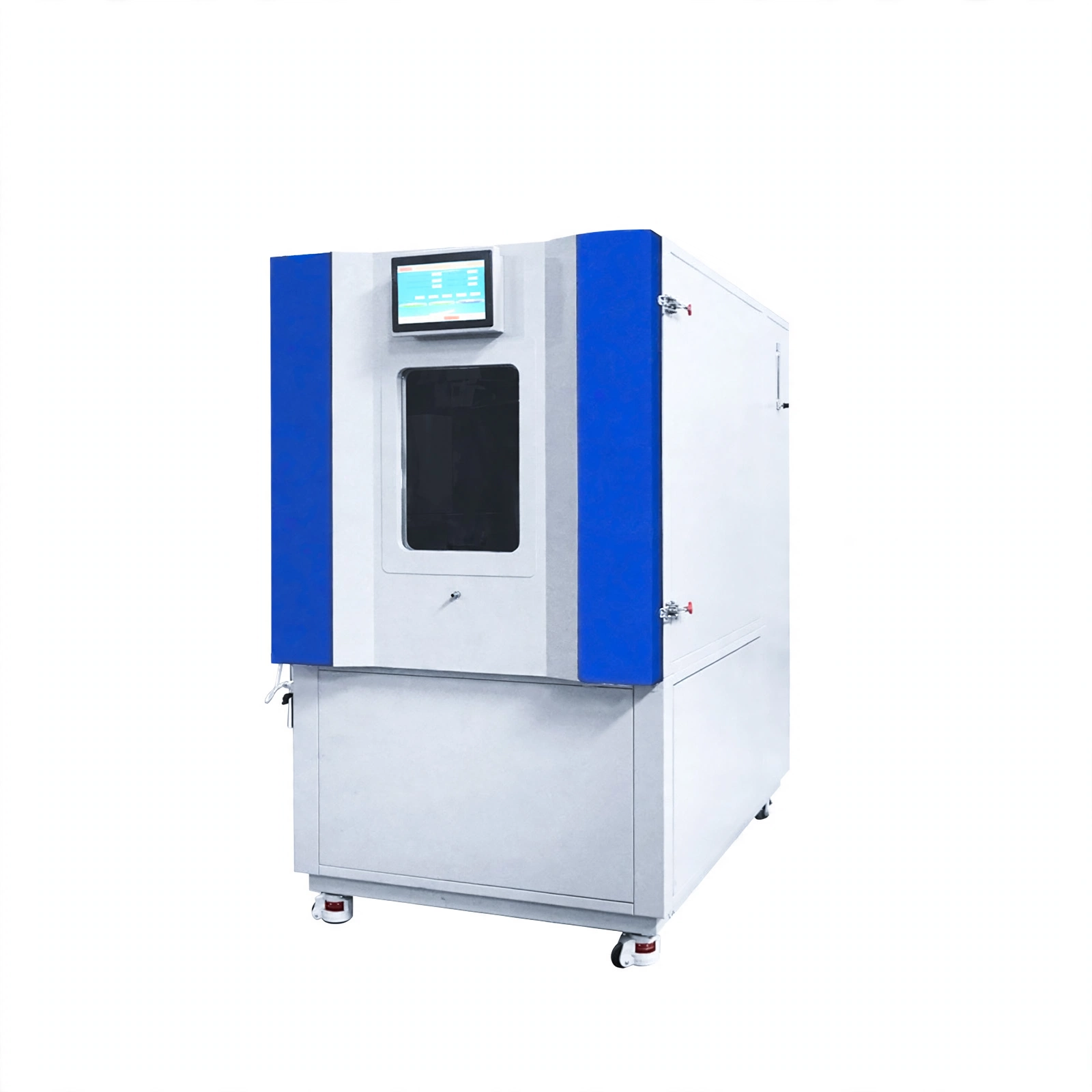

Formaldehyde Emission Test Chamber

Model BJPX-FE801-3 Floor-standing Refrigerated

BJPX-FE801-3 is suitable for the determination of formaldehyde emission of various wood-based panels, composite wood floors, and interior decoration materials such as carpets, carpet pads, and carpet adhesives, and can be used for the detection of other volatile harmful gases. The indoor climate environment is simulated realistically, and the detection results are closer to the real environment, so they are real and reliable.

Temperature
15~40℃
Power
Starting power≤4kw Ru…
Net weight
450kg
Dimensions
1750*1150*1860mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

* Overtemperature alarm, dew point overtemperature alarm, low water level alarm.

* Real-time curve, system temperature, humidity, dew point temperature can be viewed in the display screen.

* Temperature and humidity controller, touch screen and PLC control module, microcomputer automatic control.

* The box structure adopts jacket design.

* Power off protection function.

Technical Parameter:

Model BJPX-FE801-3
Temp Range 15~40℃
Temp Accuracy ±0.5℃
Humidity Range 40~80%RH
Humidity Accuracy ±3%RH
Air Exchange Rate Range 0.2~2m3/h(Air change rate 0.2~2 times/h)
Air Exchange Rate Accuracy Ventilation rate±1%
Air Flow Rate 0.1~2m/s
Air Rate Accuracy ≤0.05m/s
Test Chamber Size 1±0.02m3
Internal Size 800*1000*1150mm
Pressure 10±5Pa
Sealing Under 1KPa relative pressure, leakage rate ≤1* m3/min
Constant Temperature Box Polyurethane and insulation board

Outer wall: steel plate, white spraying

Inner wall: 304 stainless steel plate

Background Concentrations Formaldehyde＜0.006mg/m3

TVOC＜0.05mg/m3

Single VOC＜0.005mg/m3

Consumption Starting power≤4kw

Running power 2kw

Power Supply Standard: 220V 50/60Hz

Optional: 110V 50/60Hz

External Size 1750*1150*1860mm
Net Weight 450kg
The details

Specifications

Model
BJPX-FE801-3
Temp Range
15~40℃
Temp Accuracy
±0.5℃
Humidity Range
40~80%RH
Humidity Accuracy
±3%RH
Air Exchange Rate Range
0.2~2m3/h(Air change rate 0.2~2 times/h)
Air Exchange Rate Accuracy
Ventilation rate±1%
Air Flow Rate
0.1~2m/s
Air Rate Accuracy
≤0.05m/s
Test Chamber Size
1±0.02m3
Internal Size
800*1000*1150mm
Pressure
10±5Pa
Sealing
Under 1KPa relative pressure, leakage rate ≤1* m3/min
Constant Temperature Box
Polyurethane and insulation board Outer wall: steel plate, white spraying Inner wall: 304 stainless steel plate
Background Concentrations
Formaldehyde＜0.006mg/m3 TVOC＜0.05mg/m3 Single VOC＜0.005mg/m3
Consumption
Starting power≤4kw Running power 2kw
Power Supply
Standard: 220V 50/60Hz Optional: 110V 50/60Hz
External Size
1750*1150*1860mm
Net Weight
450kg
