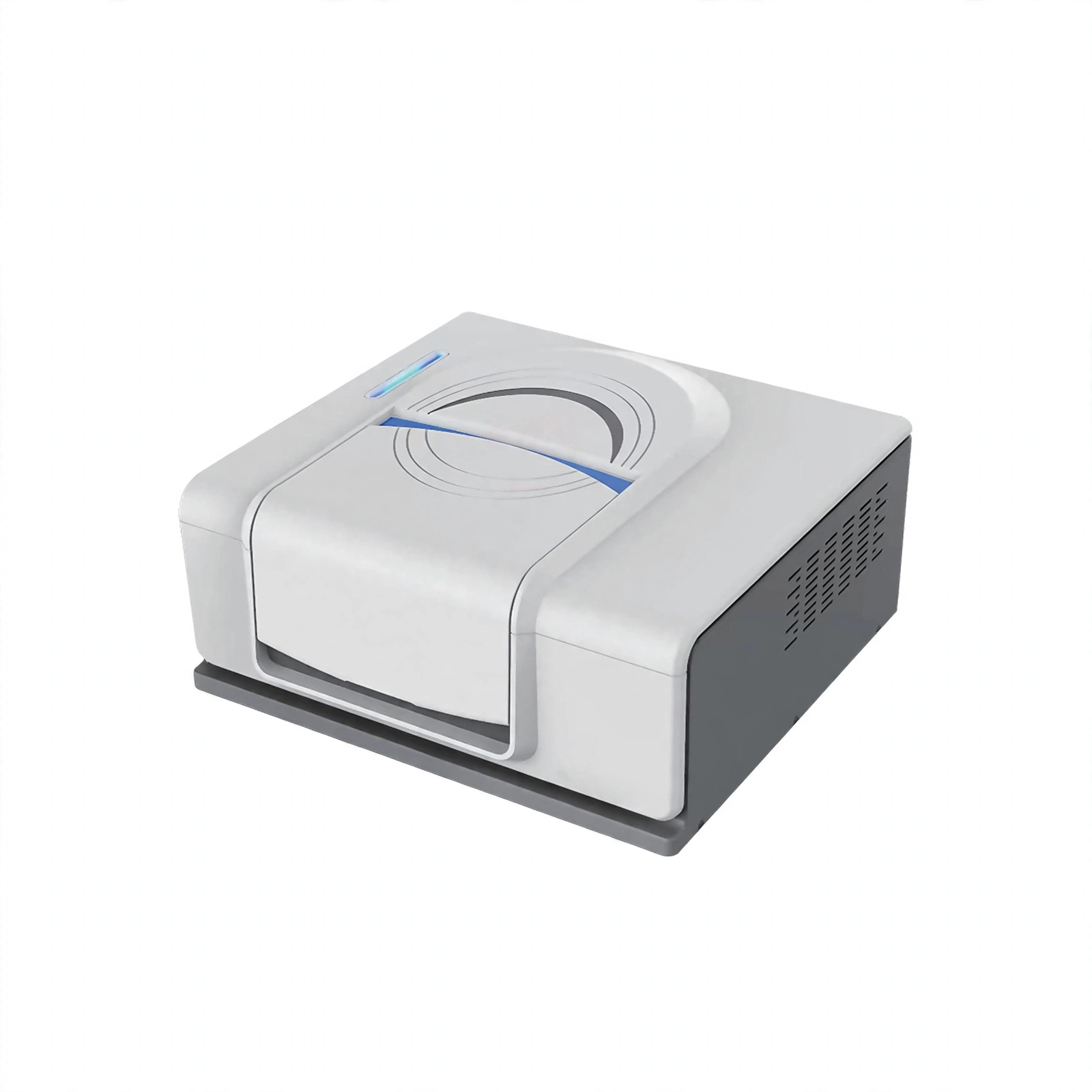

The FT-IR(Fourier Transform Infrared) Spectrometer is a high-precision analytical instrument used to identify organic and inorganic compounds by measuring their infrared absorption spectra.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. High sensitivity optical system.
2. High stability modular partition design.
3. Intelligent multi-sealed moisture-proof design.
4. Innovated integration electronic system.
5. Good anti-electromagnetic interference capability.
6. High intensity IR source.
Technical Parameters:
| Model | BKFT-530A | BKFT-530APro |
| Detector | LiTaO3 | DLATGS |
| Signal to Noise Ratio | Better than 20,000:1(RMS value, at 2100cm-1~2200cm-1, resolution: 4cm-1, 1 minute
data collection) |
Better than 40,000:1(RMS value, at 2100cm-1~2200cm-1,
resolution: 4cm-1, 1 minute data collection) |
| Interferometer |
Cube-corner michelson interferometer |
|
| Beam Splitter |
Multilayer Ge coated KBr |
|
| IR Source |
High intensity, long lifetime, air-cooled IR source |
|
| Wavenumber Range |
7800cm-1~350cm-1 |
|
| Resolution |
0.85cm-1 |
|
| Wavenumber Accuracy |
±0.01cm-1 |
|
| Scanning Speed |
Microprocessor control, different scanning speed selectable |
|
| Software |
Main FTOS suite software workstation, compatible to all version Windows OS. FDA 21 CFR Part11 compliance software(Optional) |
|
| Interface |
Ethernet&WIFI wireless |
|
| Data Output |
Standard data format, report generation and output |
|
| Status Diagnosis |
Power on self-check, real-time temperature and humidity monitoring and reminders |
|
| Environment Conditions |
Temperature: 10℃~30℃, Humidity: less than 60% |
|
| Standard Accessories |
Transmission sample holder |
|
| Optional Accessories |
Gas cell, liquid cell, defused/specular reflection, single/multiple reflection ATR, IR microscope, electronic moisture proof box. etc. Among them, the electronic moisture proof box is mandatory optional part |
|
| Power |
80W |
|
| Power Supply |
AC110V~220V, 50/60Hz |
|
| External Size(W*D*H) |
490*420*240mm |
|
| Net Weight |
23.2kg |
|
| Packing Size(W*D*H) |
Main unit: wooden type 750*630*630mm; carton type 680*580*630mm Electronic moisture proof box: wooden type 930*810*640mm; carton type 850*730*500mm |
|
| Gross Weight |
Main unit: wooden type 50kg; carton type 33kg Electronic moisture proof box: wooden type 60kg; carton type 33kg |
|
