Applications： Widely used in food processing, feed production, tobacco, animal husbandry, soil fertilizer, environmental monitoring, medicine, agriculture, scientific research,teaching,quality supervision and other fields,nitrogen or protein content determination; It can also be used for the detection of ammonium salt, volatile fatty acid/alkali, soil cation exchange capacity, etc.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features：
*Automatically add dilution water, add alkali, add receiver solution, distillation, titration, calculation, printing, automatic emptying function of digestion tube and receiving cup, steam flow adjustment, fault self-checking and other functions.
*New Android operating system,with 7-inch high-definition color touch screen, real-time control of the experiment process.
*External titration cup design,the operator can control the experimental process in real time.
*Steam flow can be adjusted within the range of 0~100%.
*With user authority classification function,operation log query,data traceability management can be realized.
*The instrument has a built-in 8G storage space and a variety of built-in application solutions.
*Quick emptying function of digestive tube,avoiding experimenters from contacting distillation high-temperature waste liquid.
*High-precision dosing pump and titration system ensure the accuracy of experimental results.
*Titration process image curve display,online monitoring of the whole experimental process,real-time monitoring.
Steam Generation: Built-in steam generator, pressure-controlled, constant temperature.
·Reagent Addition: Automatic addition of sodium hydroxide and other reagents via calibrated pumps. titration with the real-time graph displayed on the instruments.
·Glass condenser for efficient thermal exchange and low water consumption.
·Safety Features: Over-temperature and over-pressure protection, safety door interlock, water level sensors, steam generator safety valve, automatic stop in case of power/water failure.
·User Interface: Digital / touchscreen display with programmable protocols, timer, and alarms.
·Distillate Recovery: Typically ≥99.5% recovery; automatic titration connection optional.
·Cooling System: Water-cooled condenser with low water consumption.
·Construction: Plastic casing + Painting,
· Accessories: Compatible digestion block/tubes, reagent tanks, safety collection vessels
Technical Parameters：
| Model | AKN-10S（Customized） |
| Measuring Range | 0.04mg-240mg N |
| Recovery Rate | ≥99.5% |
| Sample Amount | Solid≤6g; Liquid≤25mL |
| Distillation Speed | 3~8min/sample |
| Distillation Time | 0~99min |
| Repeatability | ≤0.5% |
| Titration Precision | 1.0μl/step |
| Storage Data | 1 million groups |
| Reagents Bottle Liquid Level Detection | Yes |
| Protection Device | Flow rate detection, liquid level alarm, over temperature and over pressure protection |
| Display | 7 inches LCD display |
| Rated Power | 2KW |
| Power Supply | Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz |
| External Size | 490*380*725mm |
| Net Weight | 38kg |
| Packing Size | 630*560*1350mm |
| Gross Weight | 52kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
1. Built-in colorimetric titration device; 2. Two steam models, can adjust solutions adding’s sequence, for distillation and absorption special samples; 3. Touch screen used for operating and display; 4. Built-in prin…

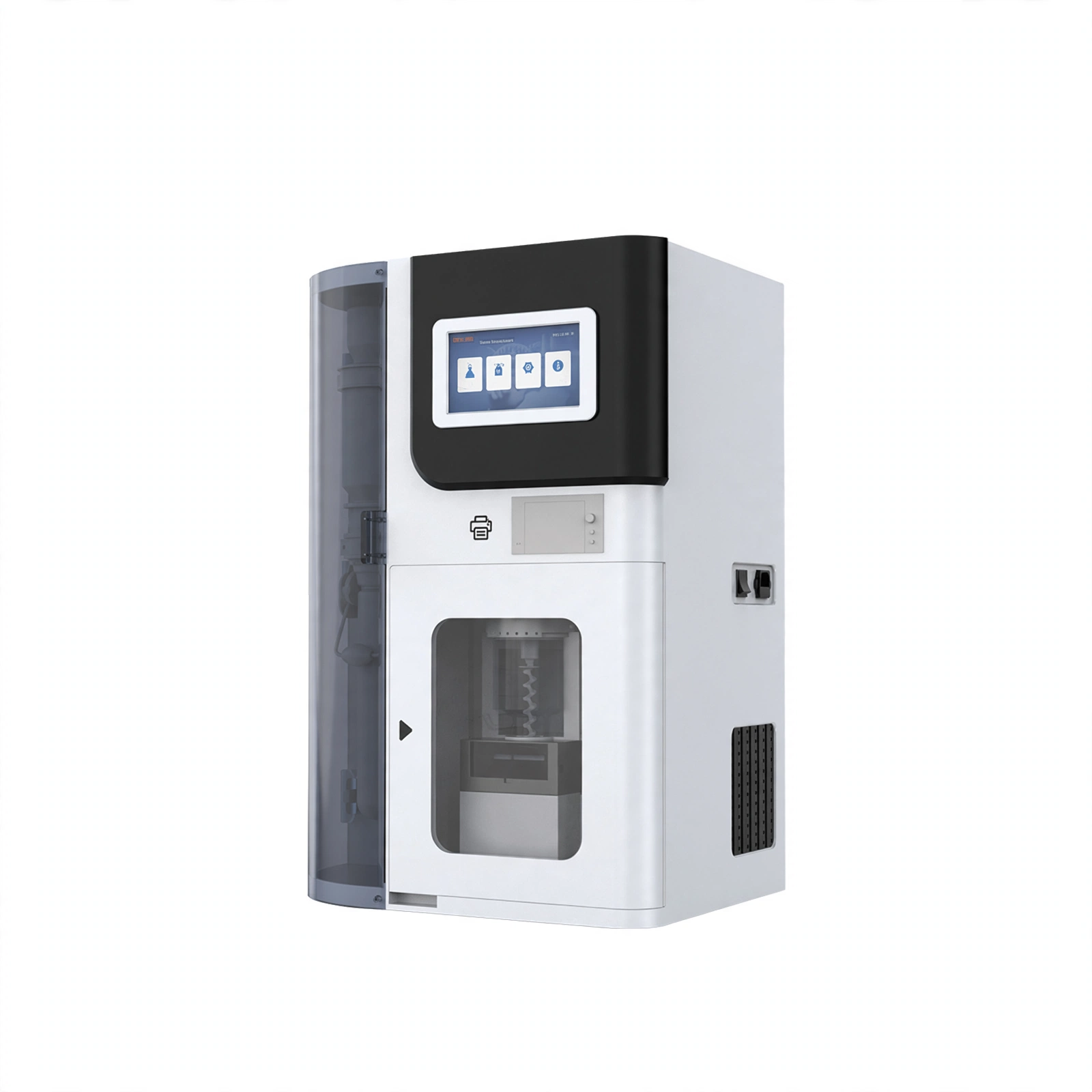

The Full-Automatic Kjeldahl Nitrogen Analyzer is an advanced laboratory instrument designed for the precise determination of nitrogen and protein content in food, agriculture, and environmental samples.
Applications Widely used in food processing, feed production, tobacco, animal husbandry,soil fertilizer, environmental monitoring, agriculture, scientific research, teaching, quality supervision and other fields, nitr…
*Using PFA sealing cap, longer life, dealing effect well *Clip-on sealing cap, easy for changing *Specialized water jet vacuum pump is adopted, don't need electric power *Drip tray design, reduce corrosion damage from…
