This instrument, through its meticulously designed and optimized sample introduction system, significantly improves the accuracy and repeatability of sample analysis. Furthermore, its circuitry has undergone a comprehensive upgrade, not only greatly accelerating computational speed and data processing capabilities but also significantly enhancing the instrument's stability and durability, creating a more robust and efficient analytical platform for users. This enables the instrument to maintain long-term stable operation in various application environments, easily meeting users' diverse daily testing needs.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features：
1. Featuring a 7-inch high-definition capacitive touchscreen, it can display spectra, all temperature zones, and detector functions in real time.
2. Main module design: Can simultaneously install three injection ports and four detectors.
3. Pre- and post-chromatographic channels can be controlled and operated synchronously or asynchronously.
4. Certified with rigorous functional safety ECM, comprehensively enhancing anti-interference capabilities.
Technical Parameters:

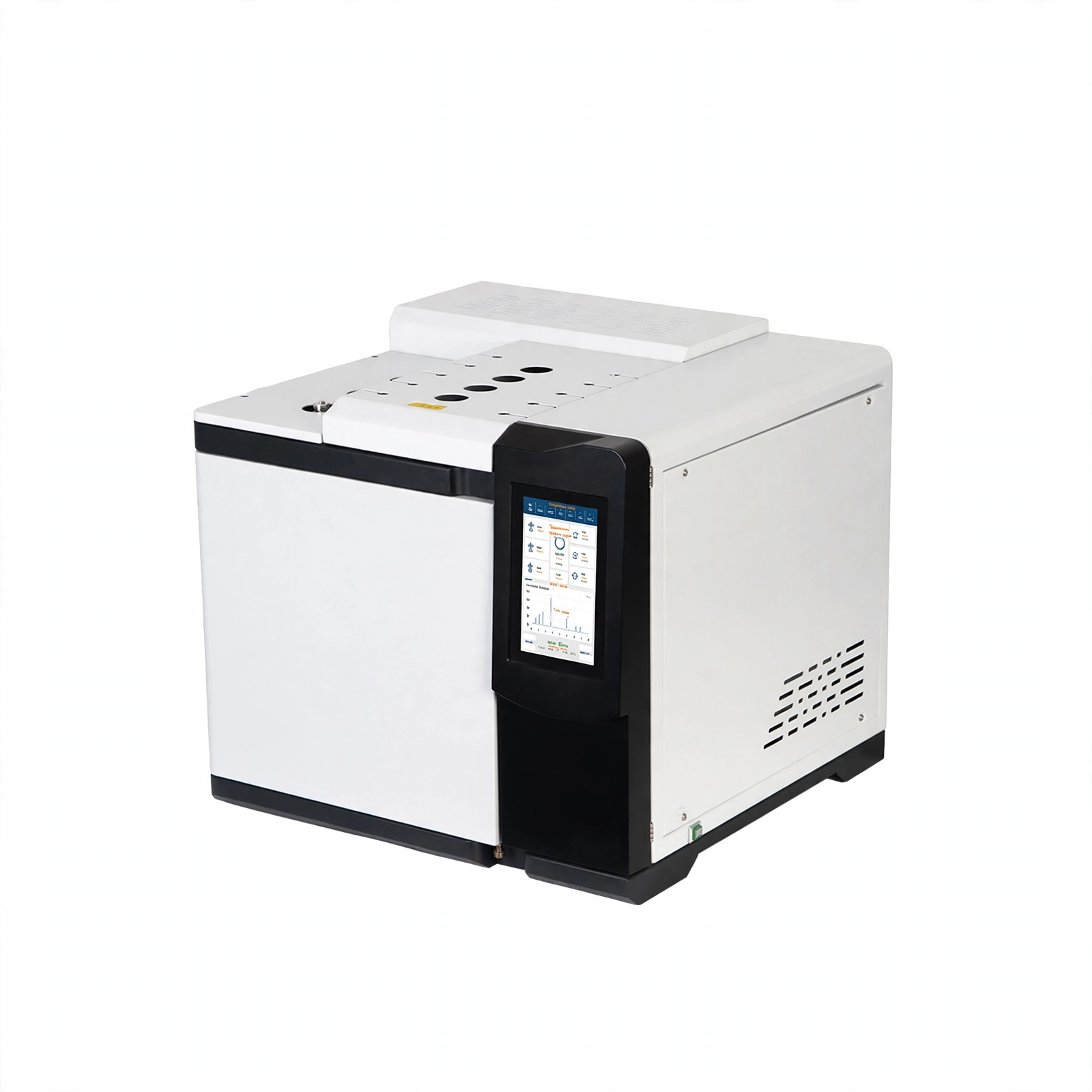

| Model |
BK-GC900A |
|
|
Oven |
Temperature Range | RT+5~450℃ |
| Temperature Control Accuracy | 0.01℃ | |
| Temperature Program | ≥20 levels(expandable) | |
| Maximum Temperature Heating Rate | 120℃/min | |
| Temperature Control System | An 8-channel independent temperature control system with automatic temperature protection function | |
|
Selectable Detector Types |
Flame Ionization Detector (FID) |
Operating temperature: 450℃ |
| Detection limit ≤ 5.0*10-12 g/s (n-hexadecane/isooctane) | ||
| Baseline drift (30 min) ≤ 2*10⁻¹³ A | ||
| Baseline noise ≤2*10⁻14A | ||
| Dynamic linear range ≥10⁷ | ||
| Automatic ignition function | ||
|
Thermal Conductivity Detector (TCD) |
Sensitivity≥8,000 mV·mL/mg | |
| Baseline drift (30min): ≤0.2mV | ||
| Baseline noise: ≤0.05mV | ||
| Dynamic linear range: ≥10⁵ | ||
| Safety protection: Gas bridging current protection function | ||
| Selectable Sample Injection Method |
It can be used with standard and inert flow path split/splitless capillary injection, septum purge packed column injection, cold column injection, programmable temperature vaporization injection ports, valve injection systems, headspace injection systems, thermal desorption injection systems, etc. |
|
| Standard Accessories |
FID detector, general chromatography workstation software, capillary sampler, startup toolkit |
|
| Optional Accessories |
Sample injection system, TCD detector, audit chromatography workstation software, chromatographic column, nickel catalytic converter, liquid autosampler, headspace sampler |
|
| Power Supply |
AC220V, 50/60Hz |
|
| Product Size(W*D*H) |
550*550*480mm |
|
| Net Weight |
45kg |
|
| Packing Size(W*D*H) |
750*710*700mm |
|
| Gross Weight |
57kg |
|
Remark: 2 different types of detectors can be installed simultaneously.
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The Gas Chromatograph(GC) is a high-precision analytical instrument used for the separation, identification, and quantification of volatile and semi-volatile compounds in complex mixtures.
This instrument perfectly blends cutting-edge technology with user-friendly design, marking a significant advancement in the field of analytical instruments. Equipped with an industry-leading technology platform and a…
Featuring a more expandable three-chamber design, it can accommodate five valves, seven columns, and dual-column chambers with independent temperature control. The fully upgraded electronic flow and pressure control s…
The model employs classic mechanical valve gas path control and is equipped with a high-precision pressure sensor, enabling real-time display of gas path pressure and flow rate information. Its three-chamber and large…
