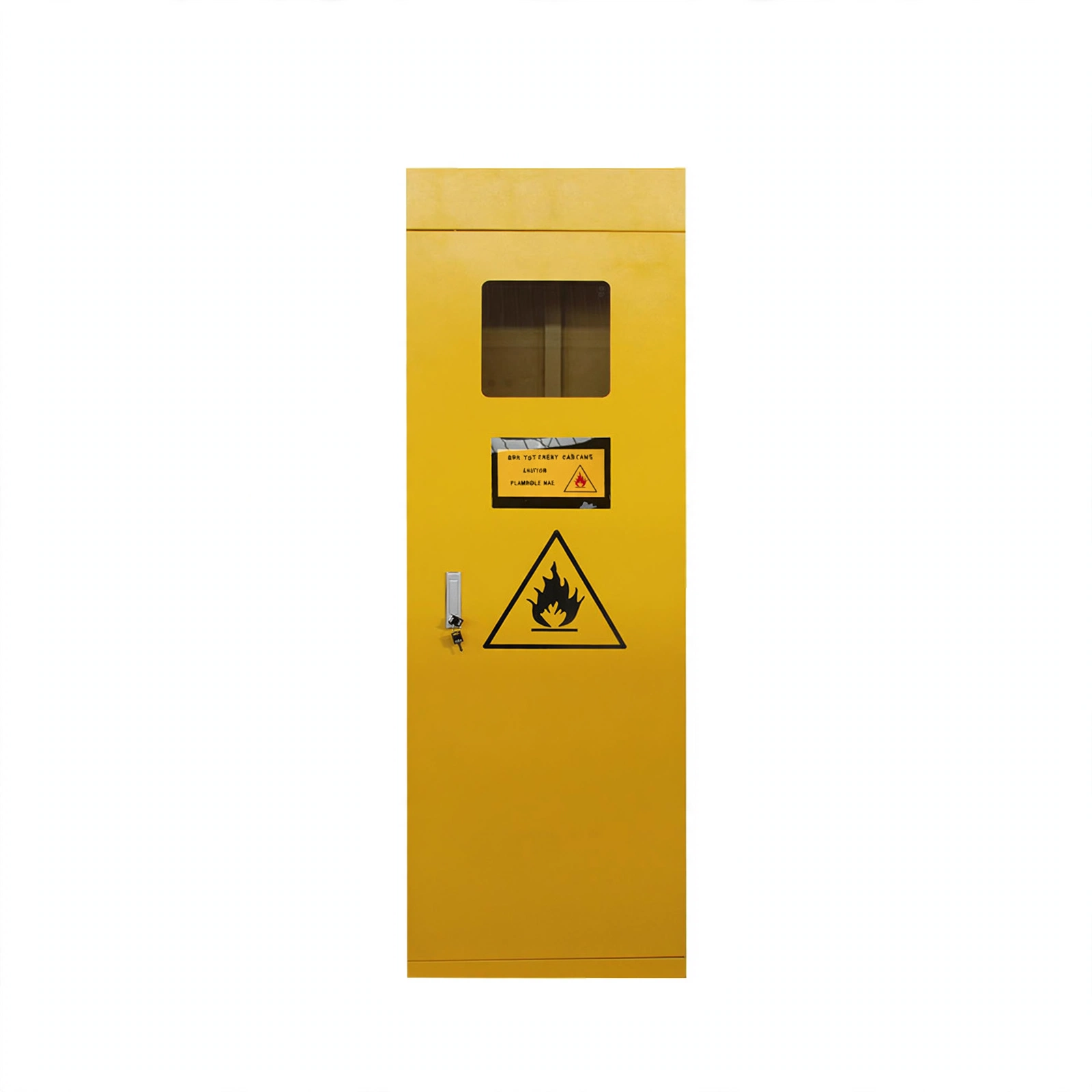

The gas cylinder cabinet is a metal container used to improve local exhaust ventilation, protect steel cylinders(gas cylinders) from fire outside the cabinet and protect surrounding objects from internal fire.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Cabinet body: It adopts high-quality cold-rolled steel plate, which is treated with pickling and phosphating, and the surface is electrostatically sprayed to achieve the effect of anti-acid and alkali and anti-rust.
2. Door panel: It adopts detachable hinges, and the window is tempered glass.
3. Ventilation holes: There are 4 ventilation holes on each side to facilitate gas circulation.
4. Fixed chain: Internal fixed chain is used to prevent the cylinder from tipping over.
5. Pedal: There are adjustable pedals at the bottom of the cabinet to facilitate the loading and unloading of gas cylinders.
Technical Parameter:
| Model | BKSC-1Q | BKSC-2Q | BKSC-3Q |
| Capacity | 40L(1 bottle) | 80L(2 bottles) | 120L(3 bottles) |
| Door Type | Single door |
Double door |
|
| External Size(W*D*H) | 600*450*1900mm | 900*450*1900mm | 1200*450*1900mm |
| Package Size(W*D*H) | 674*544*2030mm | 994*544*2030mm | 1294*544*2030mm |
| Net Weight | 61kg | 85kg | 102kg |
| Gross Weight | 78kg | 105kg | 124kg |
Optional Alarm Apparatus:
| NO. | NO.1 | NO.2 |
| Power Supply |
AC110/220V, 50/60Hz |
|
| Control Model | When the internal sensor detects a gas leak, the cabinet will automatically trigger an alarm, and the top fan will start operating automatically to expel the gas outdoors through the exhaust duct. | Monitoring mode: Press the monitoring button to enter the monitoring mode and conduct real-time detection.
Time control mode: Press the time control button, the indicator light will turn on, and the controller will activate the fan for 5 minutes every 15 minutes. |
| Alarm Type |
Audible and visible alarm |
|
| Identifiable Gas |
Methane, acetylene, hydrogen, coal gas, etc. |
|
