Other Specific Function Centrifuge

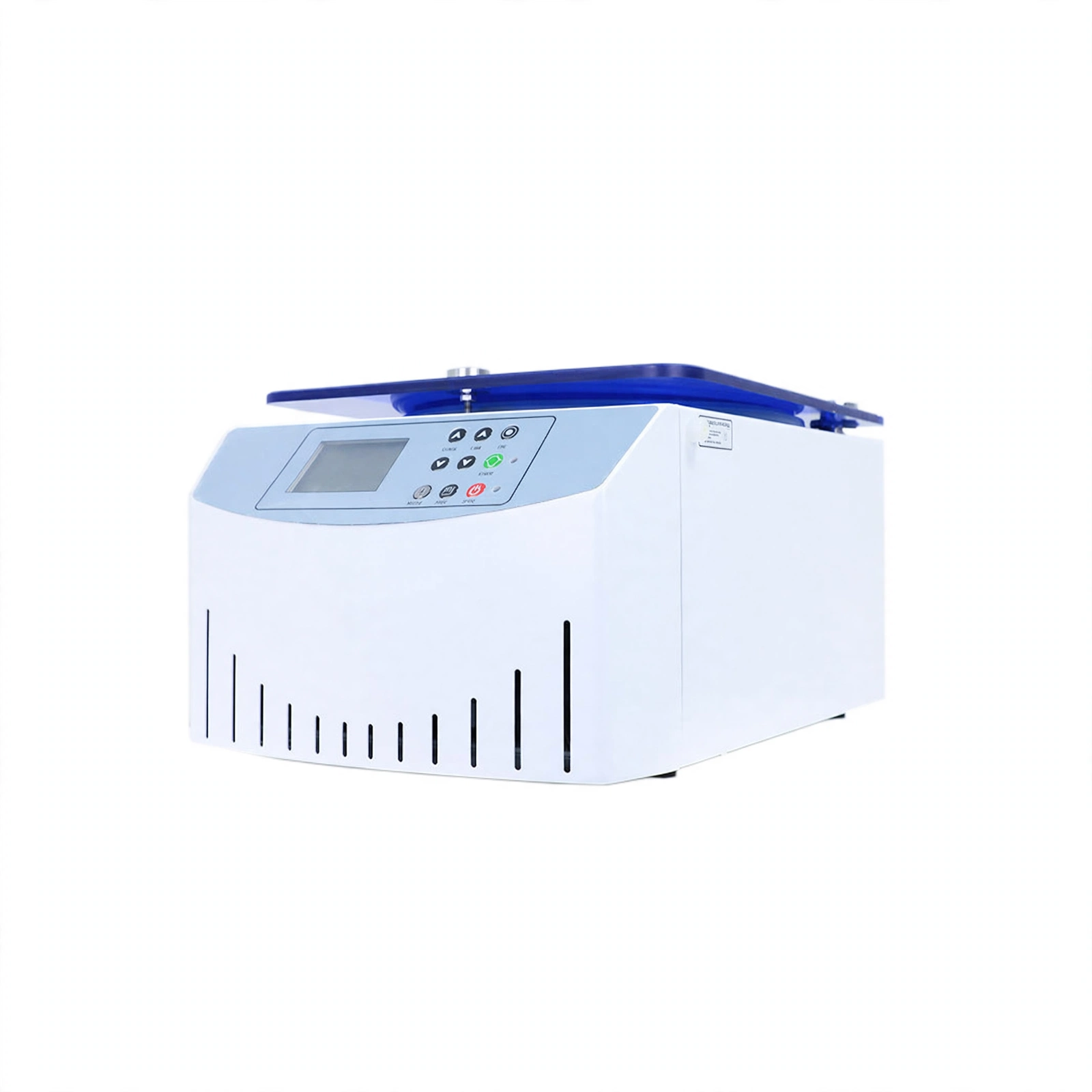

Gel Card Centrifuge BKC-TLCT4Y

Model BKC-TLCT4Y Blood & clinical

The machine uses brushless DC maintenance-free motor drive, microcomputer control, door cover protection, make your operation safer, more convenient, more reliable. It can be widely used in the separation of particles with different densities in scientific research laboratories and production units such as radioimmunity, biochemistry.

Max. speed
4,000 rpm
Max. RCF
2,250 ×g
Capacity
24 cards
Power
200W
Noise
≤60dB
Net weight
18kg
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. With continuous, instantaneous, jog centrifugal function.

2. Adopt microcomputer processor for precise control, easy to operate, and the LCD screen displays various operating parameters in real time.

3. The instrument is equipped with a special step separation technology, and different gradients can be designed according to different reagent requirements.

4. Built-in a variety of conventional centrifugation work programs, and customers can program the centrifugation program by pressing the button.

5. Adopt large torque brushless DC motor, easy to operate, no dust, fast lifting speed

6. Electronic smart door lock: with system self-check protection system, safe and reliable, easy to operate.

Technical Parameters:

Model BKC-TLCT4Y
Max. Speed 4000rpm
Max. RCF 2250×g
Max. Capacity 24 cards
Timing Range 1s~999min
Speed Precision ±20rpm
Noise ≤60dB
Consumption 200W
Power Supply AC220V, 50/60Hz(Standard);

AC110V, 60Hz(Optional, external transformer)
External Size 480*358*270mm
Package Size 580*460*370mm
Net Weight 18kg
Gross Weight 25.5kg


Rotor:

NO. Rotors Type Capacity Max. Speed Max. RCF Adapter
1

Angle Rotor

 12*5ml 4000rpm 2250×g 12*2ml
2 30*5ml 4000rpm 2250×g 30*2ml
3

Gel Card Rotor

 12 cards 4000rpm 1480×g /
4 24 cards 4000rpm 2120×g /
The details

Specifications

Model
BKC-TLCT4Y
Max. Speed
4000rpm
Max. RCF
2250×g
Max. Capacity
24 cards
Timing Range
1s~999min
Speed Precision
±20rpm
Noise
≤60dB
Consumption
200W
Power Supply
AC220V, 50/60Hz(Standard);AC110V, 60Hz(Optional, external transformer)
External Size
480*358*270mm
Package Size
580*460*370mm
Net Weight
18kg
Gross Weight
25.5kg
