Multifunctional Incubator

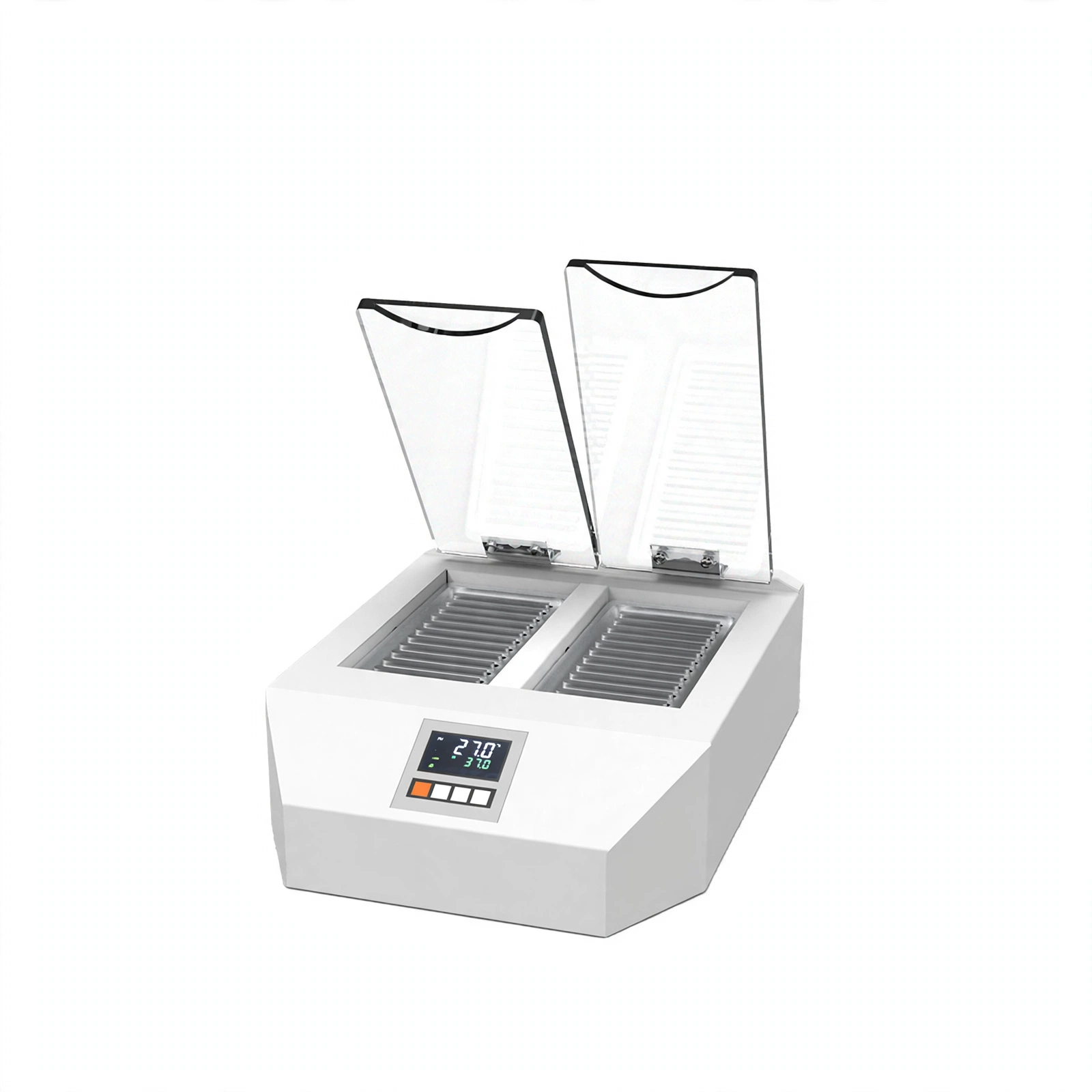

Gel Card Incubator BJPX-SK24

Model BJPX-SK24 Blood & clinical Refrigerated

The Gel Card Incubator is a precision instrument designed for the optimal incubation of gel card assays used in immunohematology, blood typing, and compatibility testing.

Capacity
24 cards
Temperature
RT+5~60°C
Power
200W
Net weight
7.5kg
Dimensions
290*370*145mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features：

1. Transparent incubation lid for clear observation of the process.

2. Intelligent fuzzy PID temperature control ensures minimal overshoot, faster stabilization, and higher precision compared to traditional PID.

3. Temperature measurement and setting resolution selectable at 0.1°C or 1.0°C.

4. Auto-tuning function with dual-range PID control and 3-stage temperature slope correction.

5. Audible/visual alarm(buzzer) for open/short circuit of temperature sensor, heater output automatically cuts off.

6. Dual incubation chambers, each holding up to 12 cards simultaneously for fast, efficient processing.

Technical Parameters：

Model BJPX-SK24
Capacity 24 cards
Display LCD display
Temp. Range RT+5~60°C
Temp. Resolution 0.1°C
Temp. Uniformity ≤+0.5°C
Temp. Stability ±0.2°C
Temp. Accuracy ≤±0.2°C
Heating Time ≤ 25 minutes(RT to 60℃)

≤ 10 minutes(RT to 37℃)
Timing Range 1~9999h or continuous operation
Consumption 200W
Power Supply AC110/220V, 50/60Hz
External Size(W*D*H) 290*370*145mm
Package Size(W*D*H) 425*325*200mm
Net Weight 7.5kg
Gross Weight 9.5kg
The details

Specifications

Model
BJPX-SK24
Capacity
24 cards
Display
LCD display
Temp. Range
RT+5~60°C
Temp. Resolution
0.1°C
Temp. Uniformity
≤+0.5°C
Temp. Stability
±0.2°C
Temp. Accuracy
≤±0.2°C
Heating Time
≤ 25 minutes(RT to 60℃)≤ 10 minutes(RT to 37℃)
Timing Range
1~9999h or continuous operation
Consumption
200W
Power Supply
AC110/220V, 50/60Hz
External Size(W*D*H)
290*370*145mm
Package Size(W*D*H)
425*325*200mm
Net Weight
7.5kg
Gross Weight
9.5kg
