Graphite Digester

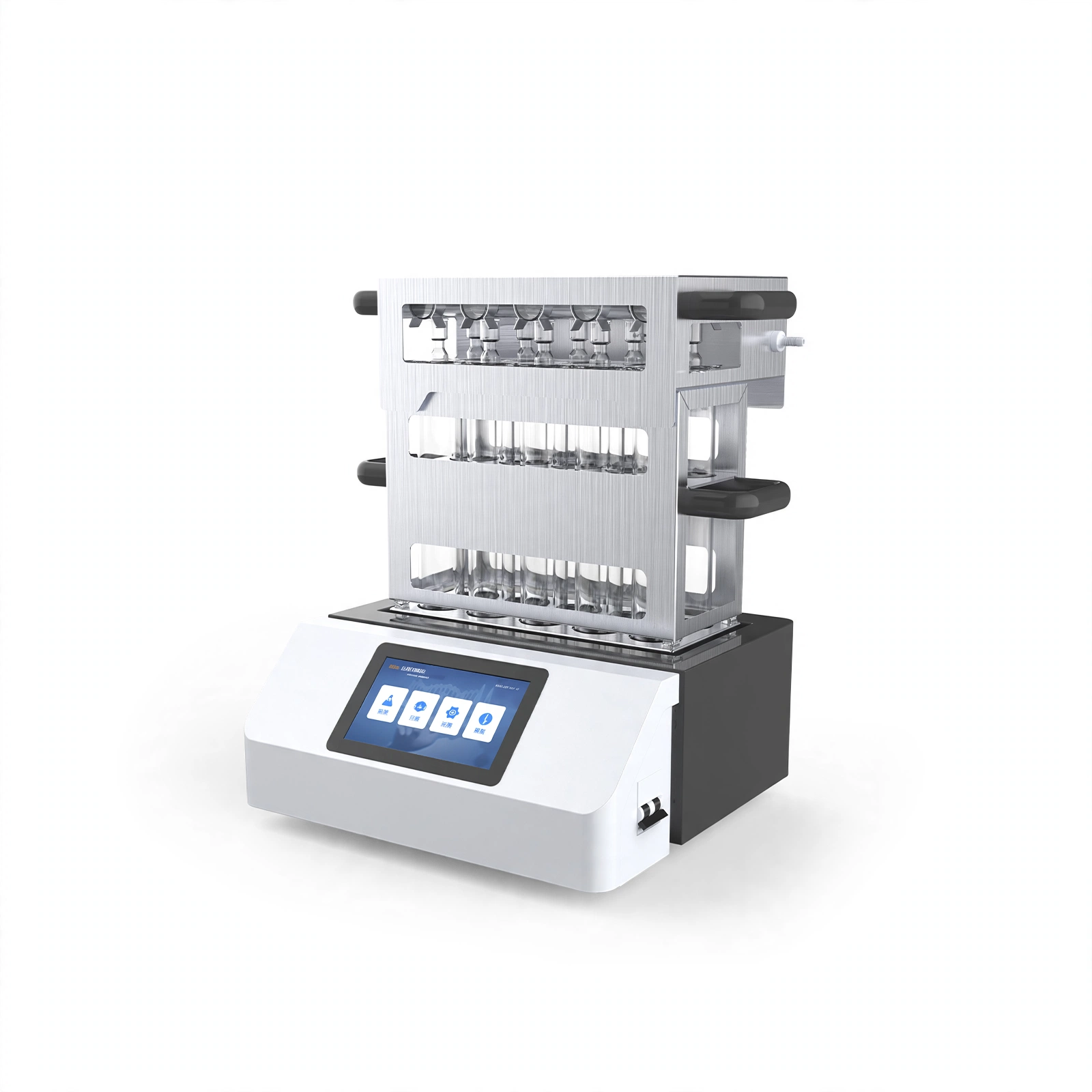

Graphite Digester GDA-10 GDA-20

Model GDA-10 GDA-20 Refrigerated

Graphite Digester adopts infrared radiation graphite conduction heating technology, accurate temperature control, uniform heating, fast heating speed.

Capacity
10pcs / 20pcs
Temperature
RT+5℃~450℃
Power
1.8KW / 3.4KW
Net weight
20kg / 26kg
Dimensions
360*390*177mm / 480*3…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Application:

Food, agriculture, forestry, environmental protection, chemical, biochemical and other industries as well as quality inspection institutions, universities, scientific research departments to soil. Sample digestion processing prior to chemical analysis of grain, feed, food, water, plants, seeds, ores, heavy metals, etc.

Features:

1. Infrared radiation graphite conduction heating method, fast heating speed, the temperature difference between the holes is small, and the sample digestion is consistent.

2. PID intelligent temperature control algorithm, accurate and stable control, adapt to different sample pretreatment.

3. Two heating methods of curve heating and linear heating, 200 groups of digestion programs can be edited and stored, and each group can be set up to 25 segments.

4. Temperature and time gradient to meet different experimental needs of users.

5. Special anti-corrosion treatment to avoid the corrosion of acidic liquid on the machine.

6. 7-inch high resolution LCD display, real-time display temperature curve.

7. Overvoltage, overcurrent, overheating and other alarm Settings and leakage protection.

8. New ceramic fiber insulation layer and air duct insulation technology.

9. Standard digestive tube cooling rack and drip tray, the digestive tube can be cooled quickly.

10. Exhaust hood, PTFE sealing cap seal, prevent operators from inhaling harmful gases.

 Technical Parameters:

Model GDA-10 GDA-20
Temp. Range

RT+5℃~450℃

Temp.Accuracy

±1℃

Capacity 10pcs 20pcs
Digestive Tube Glass tube 300ml*10 Glass tube 300ml*20
Heating Mode

Infrared heating and high purity graphite conduction

Insulation Mode

Ceramic fiber, split air duct insulation

Display

7-inch high resolution color LCD screen

Consumption 1.8KW 3.4KW
Power Supply

Standard: 220V±10%, 50/60Hz

Optional: 110V±10%, 50/60Hz

External Size(W*D*H) 360*390*177mm 480*390*177mm
Package Size(W*D*H) 670*560*630mm 700*610*770mm
Net Weight 20kg 26kg
Gross Weight 38kg 58kg
The details

Specifications

Model
GDA-10 / GDA-20
Temp. Range
RT+5℃~450℃
Temp.Accuracy
±1℃
Capacity
10pcs / 20pcs
Digestive Tube
Glass tube 300ml*10 / Glass tube 300ml*20
Heating Mode
Infrared heating and high purity graphite conduction
Insulation Mode
Ceramic fiber, split air duct insulation
Display
7-inch high resolution color LCD screen
Consumption
1.8KW / 3.4KW
Power Supply
Standard: 220V±10%, 50/60HzOptional: 110V±10%, 50/60Hz
External Size(W*D*H)
360*390*177mm / 480*390*177mm
Package Size(W*D*H)
670*560*630mm / 700*610*770mm
Net Weight
20kg / 26kg
Gross Weight
38kg / 58kg
