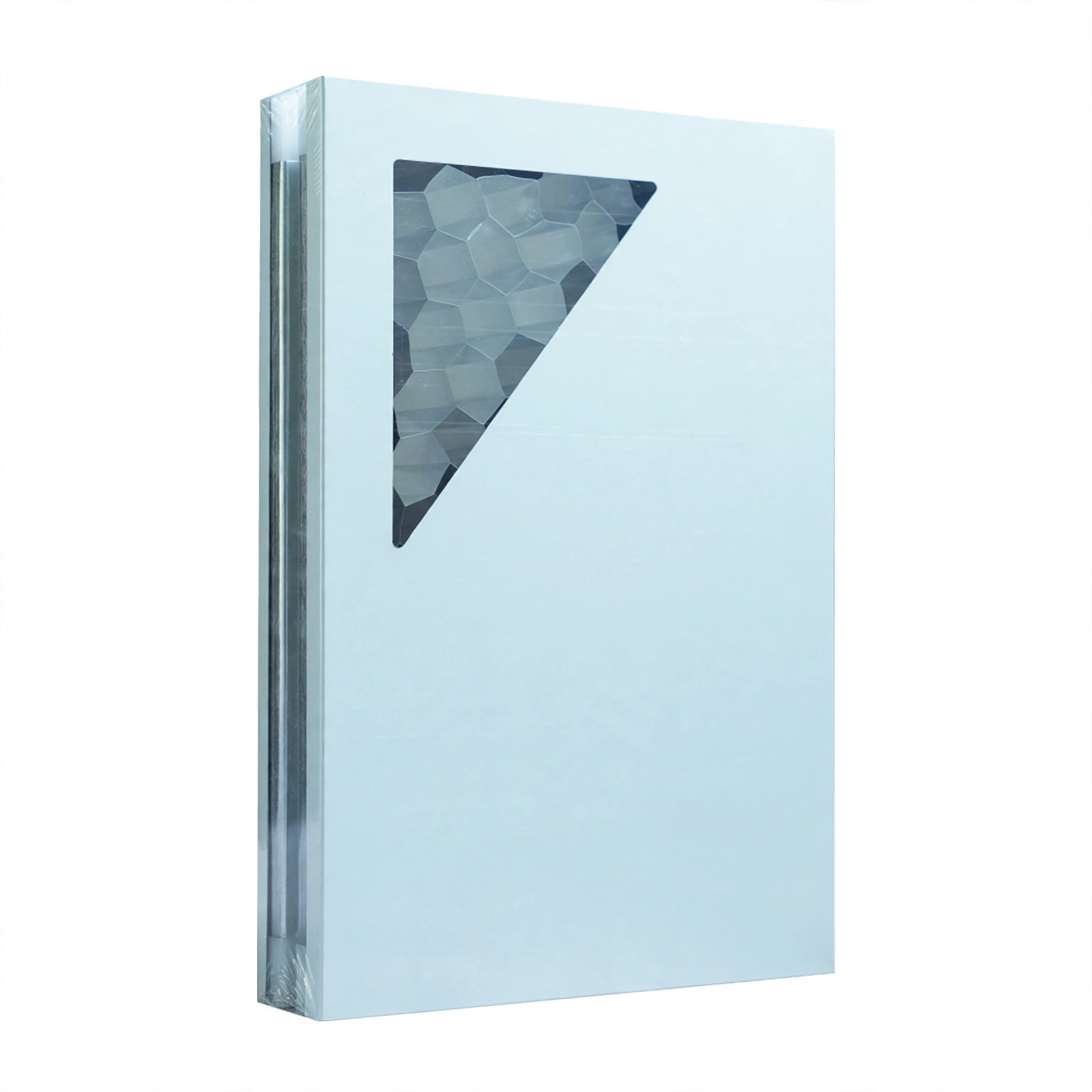

Introduction It is made of high-quality color-coated steel plate as the surface layer, aluminum honeycomb as the core layer, and is manufactured through processes such as pressing, heating, and trimming. Compared with other sandwich panels, it has the characteristics of light weight, good flatness, beautiful appearance, good sound and heat insulation, good fire resistance, and easy installation. Because its core material adopts a unique hexagonal structure, it has high compressive strength, good tension and light weight, and is a green and environmentally friendly building material.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters
| Surface Layer | Upper/lower steel plate thickness 0.426-0.8mm color-coated steel plate |
| Core Material | 5mm Single/Double-side Glass Magnesite Wool + Aluminum Honeycomb |
| Thickness | 50mm, 75mm, 100mm |
| Width | 980mm/1180mm, non-standard recommended not less than 100mm |
| Length | Can be customized as required, recommended ≤ 6000mm |
| Panel Type | Chinese aluminum type, male and female mouth type |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
