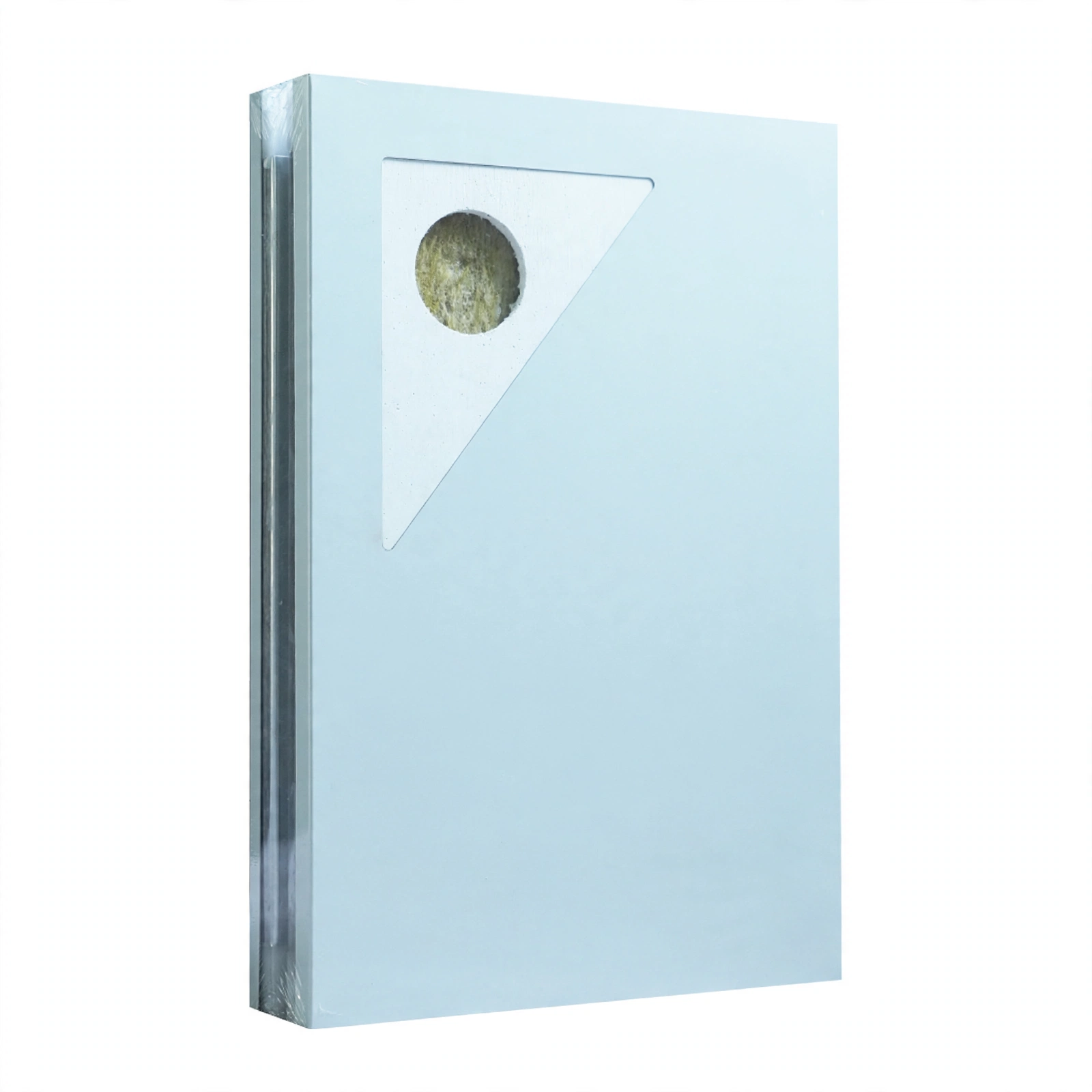

Introduction Using high-quality color coated steel plate as the surface layer, galvanized steel strip as the edge sealing parts and reinforcing bars, fireproof moisture-proof glass magnesium plate as the core layer, rock wool as the inner core layer, through pressure, heating and other processes made of good sealing performance, high fire rating. Compressive, strong bearing capacity, can be used as a maintenance structure, but also as a bearing structure, bearing capacity of 1KN/ ㎡. Modular design, flexible and convenient installation.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters
| Surface Layer | Upper/lower steel plate thickness 0.426-0.8mm color-coated steel plate |
| Core Material | 5mm Single/Double-side Glass Magnesite Wool + Hydrophobic rock wool |
| Unit Weight | 100-150kg/m3 |
| Thickness | 50mm, 75mm, 100mm |
| Width | 980mm/1180mm, non-standard recommended not less than 100mm |
| Length | Can be customized as required, recommended ≤ 6000mm |
| Panel Type | Chinese aluminum type, male and female mouth type |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
