Laboratory Bath

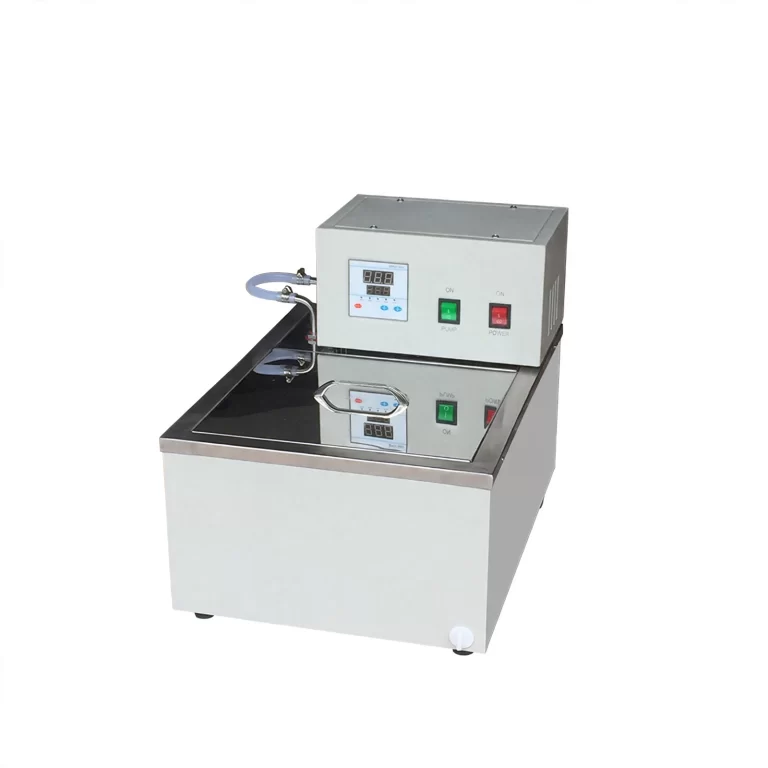

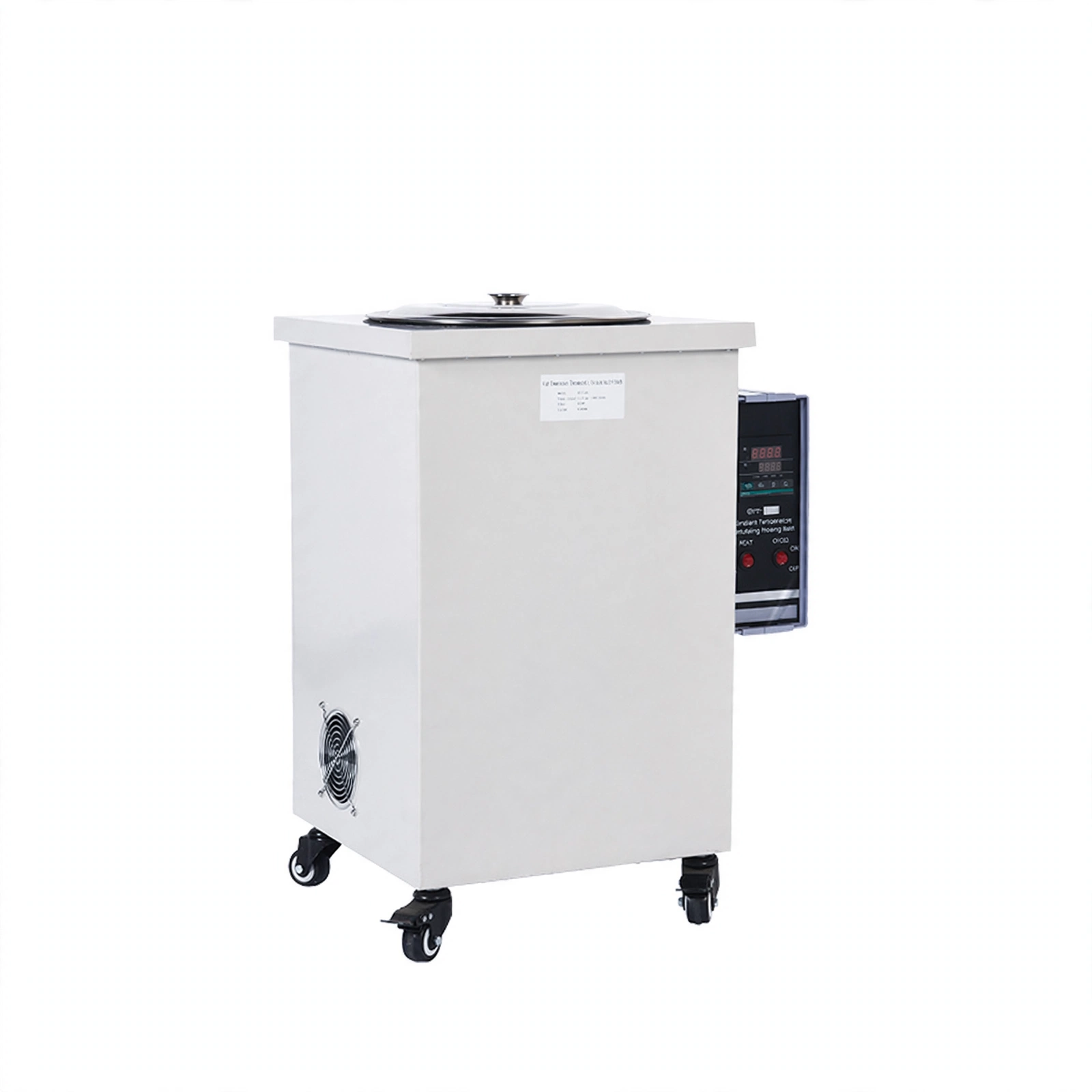

High Temperature Thermostatic Circulating Oil/Water Bath

Model OB-5L OB-10L OB-20L OB-30L OB-50L OB-100LOB-5L OB-10L OB-20L OB-30L OB-50L OB-100L

The High Temperature Thermostatic Circulating Oil/Water Bath is designed for precise temperature control in demanding laboratory and industrial applications.

Max. load
200
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The structure is compact and reasonable, the stainless steel inner tank and the outer shell are made of high-quality steel plate electrostatic spraying.

2. Easy to use and simple to operate.

3. Accurate temperature control, controllable output flow, energy saving.

4. The outer circulation interface adopts high-quality copper material, which is anti-corrosion and corrosion-resistant and durable.

Technical Parameters:

Model OB-5L OB-10L OB-20L OB-30L OB-50L OB-100L
Liquid Storage Volume(L) 5 10 20 30 50 100
No-load Max Temperature(℃)

200
Heating Power(kw) 2 2.8 3.5 4 5 9
Pressure

1.45MPa
Cycle Way

Sealed magnetic pump cycles
Flow Rate(L/min)

15~20

20~25
Temperature Control Range(℃)

Water Bath: RT-100; Oil Bath: RT-200
Temperature Error

≤2.50%
HTF Viscosity(c℃st)

Below 500
Optional Parts

Explosion-proof motor and electricals
No. of Heating Tube(pc)

1

2

3
Power Supply AC220V, 50/60Hz(Standard)(Plug or air switch);

AC110V, 50/60Hz(Optional);

Air switch

AC220V, 50/60Hz(Standard);

AC110V, 50/60Hz(Optional);

Air switch

 AC380V, 50/60Hz(Standard);

AC220V, 50/60Hz(Optional);

Air switch

 AC380V, 50/60Hz;

Air switch
Packing Size(mm) 530*460*800 580*480*740 530*440*870 550*680*850 670*570*910 740*640*1040
Gross Weight(kg) 36 38 42 48 52 63
The details

Specifications

Model
OB-5L / OB-10L / OB-20L / OB-30L / OB-50L / OB-100L
Liquid Storage Volume(L)
5 / 10 / 20 / 30 / 50 / 100
No-load Max Temperature(℃)
200
Heating Power(kw)
2 / 2.8 / 3.5 / 4 / 5 / 9
Pressure
1.45MPa
Cycle Way
Sealed magnetic pump cycles
Flow Rate(L/min)
15~20 / 20~25 / 20~25 / 20~25 / 20~25 / 20~25
Temperature Control Range(℃)
Water Bath: RT-100; Oil Bath: RT-200
Temperature Error
≤2.50%
HTF Viscosity(c℃st)
Below 500
Optional Parts
Explosion-proof motor and electricals
No. of Heating Tube(pc)
1 / 2 / 3 / 3 / 3 / 3
Power Supply
AC220V, 50/60Hz(Standard)(Plug or air switch);AC110V, 50/60Hz(Optional);Air switch / AC220V, 50/60Hz(Standard);AC110V, 50/60Hz(Optional);Air switch / AC380V, 50/60Hz(Standard);AC220V, 50/60Hz(Optional);Air switch / AC380V, 50/60Hz;Air switch / AC380V, 50/60Hz;Air switch / AC380V, 50/60Hz;Air switch
Packing Size(mm)
530*460*800 / 580*480*740 / 530*440*870 / 550*680*850 / 670*570*910 / 740*640*1040
Gross Weight(kg)
36 / 38 / 42 / 48 / 52 / 63
