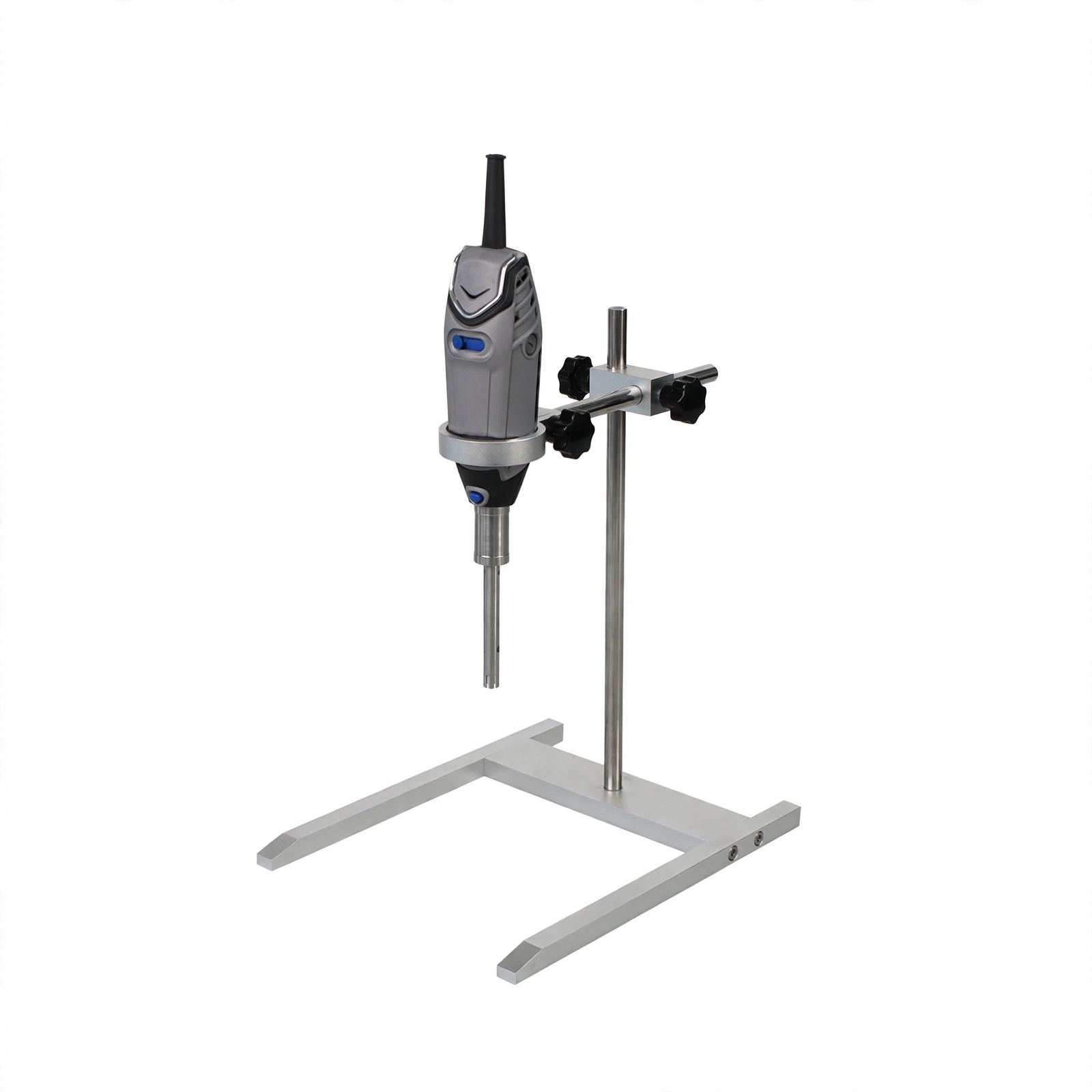

Application: D-160 can be used in genetic research, tissue destruction, fragmentation, cytoplasmization, pathological analysis, nano-material dispersion, polymerization, ink coatings, fine chemicals, pesticides, prospecting, environmental protection, energy and other fields.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Lightweight design, handheld and can be operated with one hand.
2. The application of different dispersing heads is suitable for liquid samples of 0.1~250ml.
3. High-quality 316L stainless steel dispersing head, corrosion-resistant, high-temperature sterilization.
4. The dispersing head is easy to disassemble and clean; high-speed and high-efficiency motor.
5. The speed is adjustable in 10 gears, and the speed range: 8000~32000rpm.
Technical Parameters:
| Model | D-160/5 |
D-160/10 |
|
| Item No. | 8014111000 |
8014121000 |
|
| Recommended Configuration | D160 drive, H370 stand, DS-160/5 shaft, volumes from 0.1~50ml |
D160 drive, H370 stand, DS-160/10 shaft, volumes from 1~250ml |
|
| Speed Range |
8000~32000rpm |
||
| Max. Circum. Speed |
6.3~14m/s |
||
| Speed Control |
10 stage |
||
| Working Volume(H2O) |
0.1~50ml(Dispersing shaft DS-160/5) |
1~250ml(Dispersing shaft DS-160/10) | |
| Max. Viscosity |
5000mPa·s |
||
| Material of Dispersing Shaft |
SS316&PTFE seal ring |
||
| Noise |
≤72dB |
||
| Ambient Temp. |
0~40°C |
||
| Relative Humidity |
85%RH |
||
| Protection Type |
IP20 |
||
| Consumption |
160W |
||
| Motor Type |
AC carbon brush motor |
||
| Power Supply |
AC110/220V±10%, 50/60Hz(Customizable) |
||
| Standard Accessory |
Base stand+DS-160/5 dispersing shaft |
Base stand+DS-160/10 dispersing shaft | |
| External Size(W*D*H) |
45*55*190mm |
||
| Package Size(W*D*H) |
470*240*250mm |
||
| Gross Weight |
4kg |
||
Accessories Description:
| Cat. No. | Combination Stator+Rotor | Model | Working Volume(ml) | Diameter of Stator | Diameter of Rotor | Min./Max. Immersion Depth | Application |
| 18900543 | DS-160/5 | D-160/5 | 0.1~50 | 5mm | 3mm | 7/50mm |
Small amounts of solid-liquid mixtures |
| 18900544 | DS-160/10 | D-160/10 | 1~250 | 10mm | 6mm | 10/120mm |
