Horizontal Autoclave

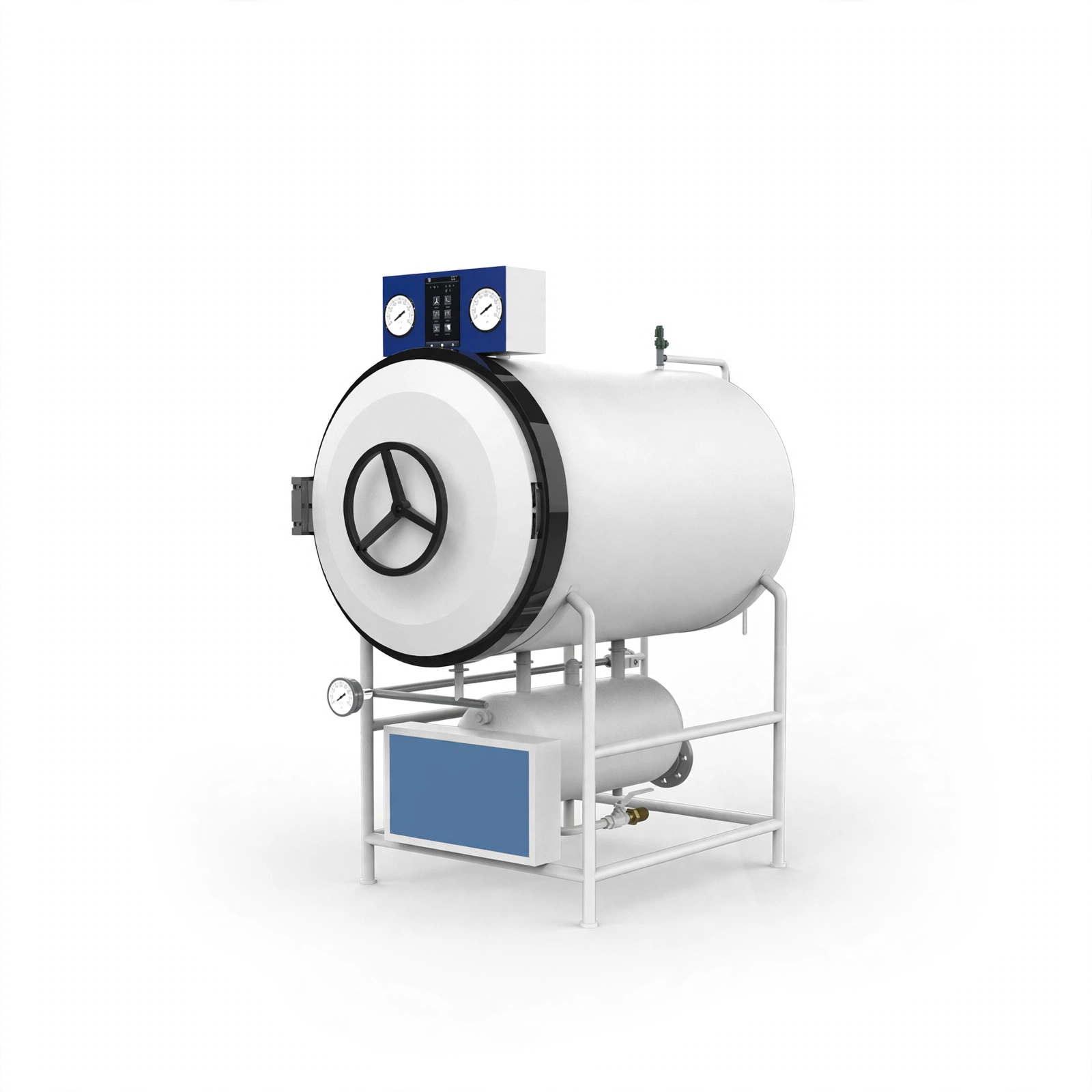

Horizontal Cylindrical Pressure Autoclave BKQ-H150 BKQ-H200 BKQ-H300 BKQ-H400

Model BKQ-H150 BKQ-H200 BKQ-H300 BKQ-H400

Large pressure steam sterilizer is a device that uses saturated steam to sterilize articles. The structure of the sterilizer is round, the steam supply mode is its own steam generator, the door of the sterilizer is a single door.

Capacity
150L / 200L / 300L /…
Power
10KW / 15KW / 15KW /…
Net weight
230kg / 250kg / 340kg…
Dimensions
680*1270*1550mm / 680…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Brand New Operation Interface

The LCD touch screen can display temperature, time, operating status, and fault alarm in real time, making the sterilization information more intuitive and clear, and it is convenient for users to observe the operating status of the equipment.

2. Drying Function

With auxiliary drying function, it is used to dry sterilized items.

3. Protection Device

Equipped with over-temperature and over-pressure automatic protection devices.

4. Steam Generator

The equipment has a built-in high-speed steam generator, which saves time and effort without external steam source.

5. Automatic Operation of the Program

The equipment is externally connected to the water source, and there is no need for manual water replenishment. After the customer selects the program, the equipment can complete the entire process from water injection to drying without human intervention. After the program is completed, the sound prompts that the sterilization is complete.

6. Programs: Wrapped, unwrapped, dressing, rubber, drying, DIY solid.

Technical Parameters:

Model BKQ-H150

BKQ-H200

BKQ-H300 BKQ-H400
Capacity 150L

200L

300L 400L
Designed Pressure

0.28MPa

Built-in Steam Generator

Yes

Rated Working Pressure

0.12MPa/0.23MPa

Rated Operating Temperature

121℃/134℃

Ambient Temp.

5~40℃

Adjustable Drying Temperature Range

115~134℃

Temp. Precision

0.1℃

Sterilization Timing Adjustable Range

1~99min

Adjustable Drying Timing Range

1~99min

Vacuum System

No

Chamber Material

304 stainless steel

Chamber Size Ф500*820mm

Ф500*1050mm

Φ650*935mm Ф650*1235mm
Altitude

≤2500m

Standard Accessories

Net rack*1, Net lid*1

Consumption

10KW

15KW

Power Supply

AC380V, 50/60Hz; AC220V, 50/60Hz(Three phase);

AC220V, 50/60Hz(Note: Be careful when ordering this voltage,the current is close to 75A)

Wiring method:Air switch

External Size(W*D*H) 680*1270*1550mm

680*1500*1550mm

815*1550*1750mm 815*1850*1750mm
Net Weight 230kg

250kg

340kg 385kg
Package Size(W*D*H) 820*1500*1910mm

820*1730*1910mm

950*1750*2030mm 950*2000*2030mm
Gross Weight 320kg

355kg

475kg 535kg
The details

Specifications

Model
BKQ-H150 / BKQ-H200 / BKQ-H300 / BKQ-H400
Capacity
150L / 200L / 300L / 400L
Designed Pressure
0.28MPa
Built-in Steam Generator
Yes
Rated Working Pressure
0.12MPa/0.23MPa
Rated Operating Temperature
121℃/134℃
Ambient Temp.
5~40℃
Adjustable Drying Temperature Range
115~134℃
Temp. Precision
0.1℃
Sterilization Timing Adjustable Range
1~99min
Adjustable Drying Timing Range
1~99min
Vacuum System
No
Chamber Material
304 stainless steel
Chamber Size
Ф500*820mm / Ф500*1050mm / Φ650*935mm / Ф650*1235mm
Altitude
≤2500m
Standard Accessories
Net rack*1, Net lid*1
Consumption
10KW / 15KW / 15KW / 15KW
Power Supply
AC380V, 50/60Hz; AC220V, 50/60Hz(Three phase);AC220V, 50/60Hz(Note: Be careful when ordering this voltage,the current is close to 75A)Wiring method:Air switch
External Size(W*D*H)
680*1270*1550mm / 680*1500*1550mm / 815*1550*1750mm / 815*1850*1750mm
Net Weight
230kg / 250kg / 340kg / 385kg
Package Size(W*D*H)
820*1500*1910mm / 820*1730*1910mm / 950*1750*2030mm / 950*2000*2030mm
Gross Weight
320kg / 355kg / 475kg / 535kg
