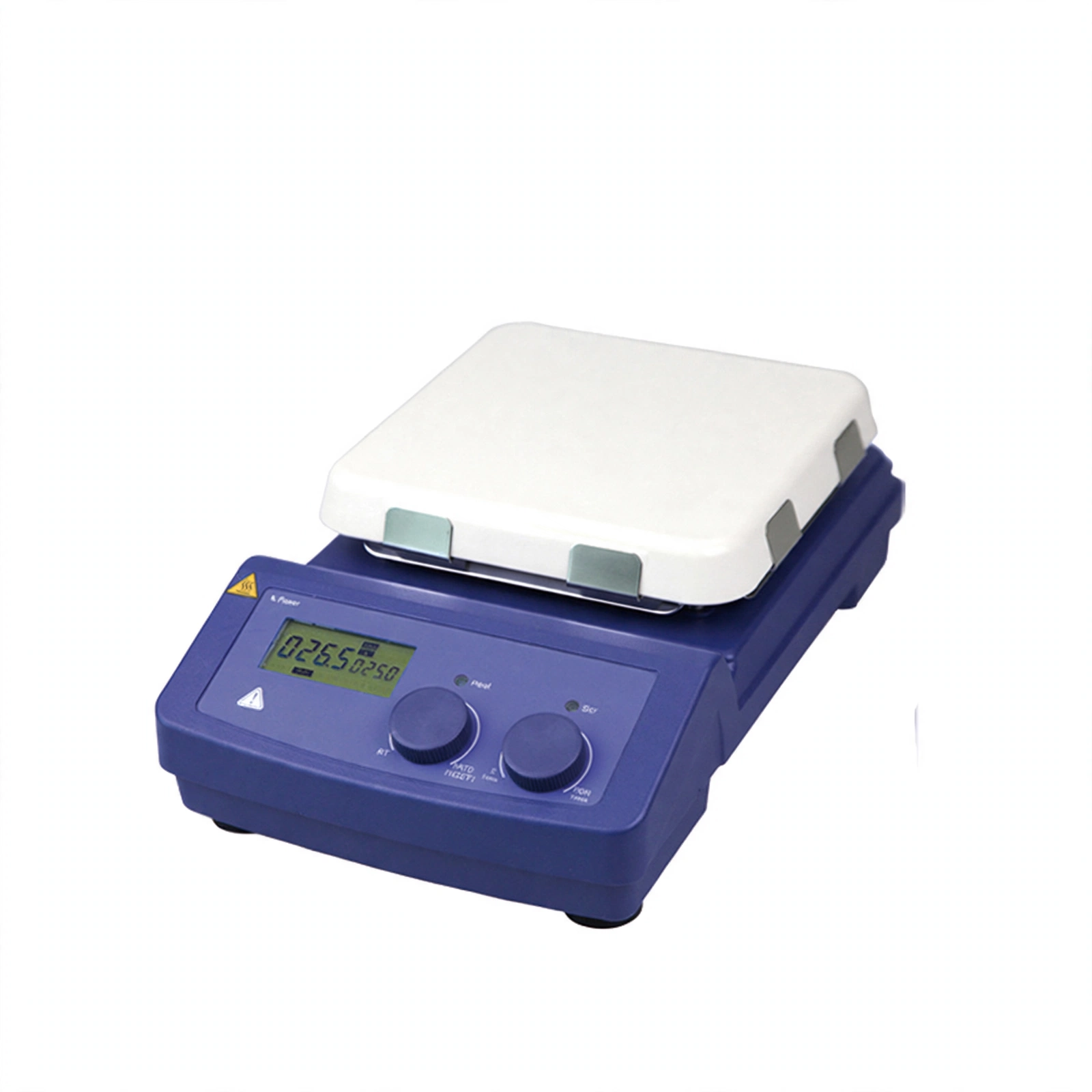

The Hotplate Magnetic Stirrer is a versatile and reliable laboratory instrument that combines precise heating with efficient magnetic stirring for sample preparation and chemical reactions.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | MS7-H550-Pro | MS7-H550-S | MS-H-ProA | MS-H-Prot | MS-H-S | MS-H280-Pro |
| Item No. | 8030122111 | 8030122211 | 8060221110 | 8030201110 | 8030211010 | 8030101212 |
| Work Plate Size |
184*184mm(7 inch) |
φ135mm(5 inch) |
||||
| Work Plate Material |
Glass ceramic |
Aluminum |
Stainless steel with ceramic coated |
|||
| Max. Stirring Capacity | 20L | 10L |
20L |
3L | ||
| Motor Type | Brushless DC motor | Shaded pole motor |
Brushless DC motor |
|||
| Motor Input | 18W | 15W |
18W |
5W | ||
| Motor Output | 10W | 1.5W |
10W |
3W | ||
| Speed Range | 100~1500rpm | 0~1500rpm |
100~1500rpm |
0~1500rpm | 200~1500rpm | |
| Speed Display | LCD | Scale |
LCD |
Scale | LED | |
| Speed Display Accuracy | ±1rpm | / |
±1rpm |
/ | ||
| Heating Output |
1000W |
600W |
500W |
|||
| Heating Temp. Range | RT-550°C,
increment 1°C |
RT-550°C,
increment 5°C |
RT-340°C, increment 1°C |
RT-340°C | RT-280°C,
increment 1°C |
|
| Control Temp. Accuracy | ±1°C(<100°C)
±1%(>100°C) |
±10°C |
±1°C(<100°C) ±1%(>100°C) |
/ | ±1°C(<100°C)
±1%(>100°C) |
|
| Overheating Protection |
580°C |
420°C |
320°C | |||
| Temp. Display | LCD | LED |
LCD |
Scale | LED | |
| Display Temp. Accuracy | ±0.1 °C | ±1°C |
±0.1 °C |
/ | ±1°C | |
| Timing Range |
/ |
1~99h59min |
/ |
|||
| Optional Accessory |
PT1000(accuracy ±0.2°C) |
/ | PT1000(accuracy ±0.2°C) | |||
| Residual Heat Warning |
50°C |
/ | 50°C | |||
| Max. Stirrer Bar Length |
80mm |
50mm | ||||
| Interface | RS232 | / | RS232 |
/ |
/ | |
| Protection Type |
IP21 |
IP42 | ||||
| Working Environment |
5~40°C, 80%RH |
|||||
| Power Consumption | 1050W | 1030W | 720W | 550W | 530W | 515W |
| Power Supply |
AC110/220V±10%, 50/60Hz(Customizable) |
|||||
| External Size(W*D*H) |
215*360*112mm |
160*280*100mm |
||||
| Package Size(W*D*H) |
490*350*260mm |
470*250*240mm |
300*240*220mm | |||
| Gross Weight |
7kg |
4kg |
3.5kg | 3kg | ||
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The Hotplate Magnetic Stirrer is a versatile and reliable tool designed for precise heating and stirring in laboratory settings. This advanced device combines robust construction with innovative features to ensure opt…
