Gas Generator

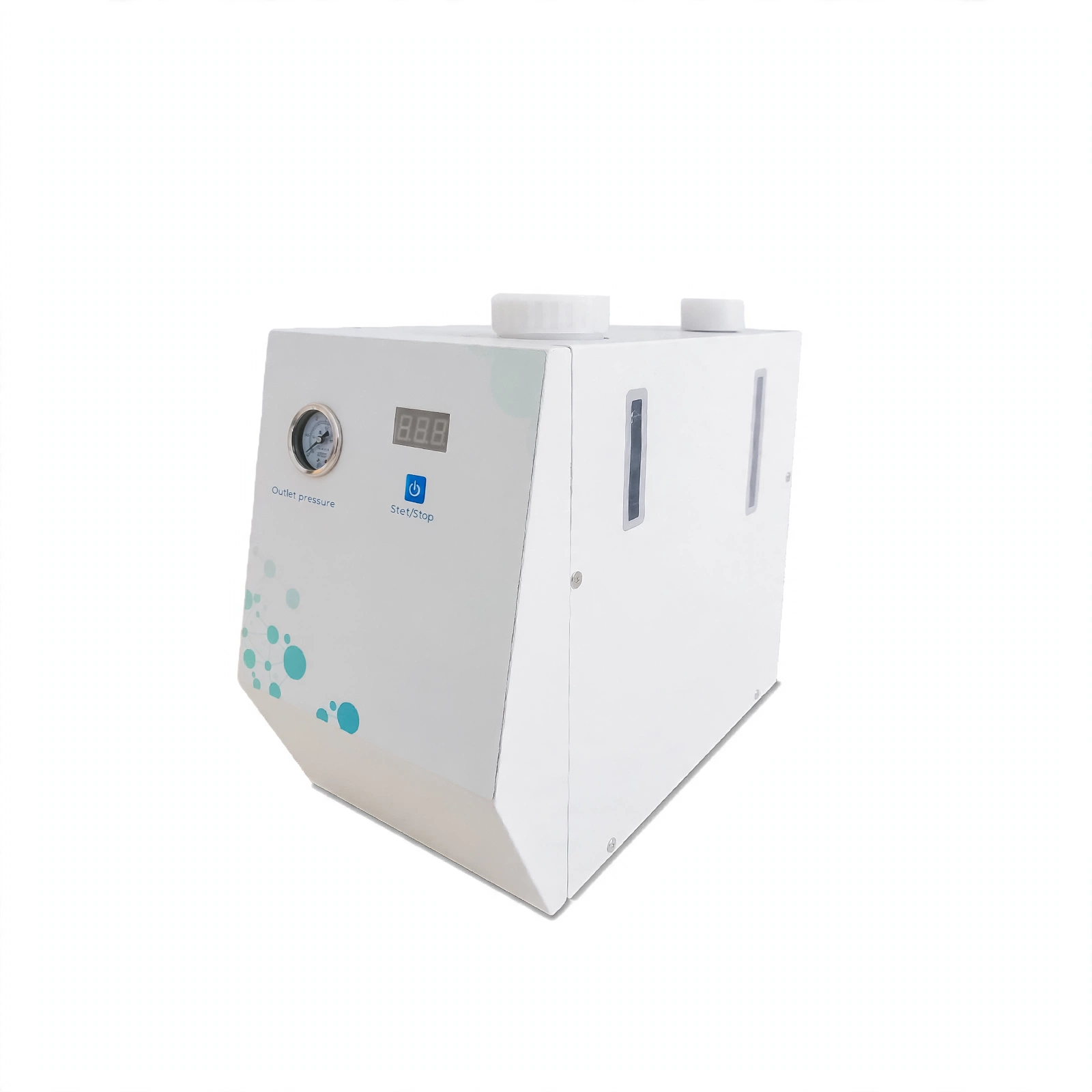

Hydrogen Generator BK-HYG-600P

Model BK-HYG-600P

The volume of the internal gas path in the hydrogen generator is less than 150ml, and the hydrogen is produced immediately after use, eliminating the risk of hydrogen storage.

Net weight
11kg
Dimensions
430*220*380mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Fast hydrogen production: The hydrogen generator can produce hydrogen without preheating.

2. High safety: The volume of the internal gas path in the hydrogen generator is less than 150ml, and the hydrogen is produced immediately after use, eliminating the risk of hydrogen storage.

3. Low long-term use cost: just add pure water during the operation of the hydrogen generator, and the cost of consumables is low.

4. Green and environmental protection: The hydrogen generator uses electrolysis of water to produce hydrogen. During the hydrogen production process, only hydrogen and oxygen are produced, which has no pollution to the environment.

5. Easy to use: The hydrogen generator can be used continuously as a gas source, avoiding frequent replacement of gas cylinders.

Technical Parameters:

Model BK-HYG-600P
Hydrogen Purity ≥99.999%
Rated Flow 600ml/min
Output Pressure 0~0.4MPa
Safety Valve Releases Pressure 0.5MPa±0.05MPa
Working Noise ≤55dB
External Size 430*220*380mm
Net Weight 11kg
Power Supply AC220V/110V, 50Hz/60Hz
Packing Size 670*470*630mm
Gross Weight 20kg
The details

Specifications

Model
BK-HYG-600P
Hydrogen Purity
≥99.999%
Rated Flow
600ml/min
Output Pressure
0~0.4MPa
Safety Valve Releases Pressure
0.5MPa±0.05MPa
Working Noise
≤55dB
External Size
430*220*380mm
Net Weight
11kg
Power Supply
AC220V/110V, 50Hz/60Hz
Packing Size
670*470*630mm
Gross Weight
20kg
