Other Specific Function Centrifuge

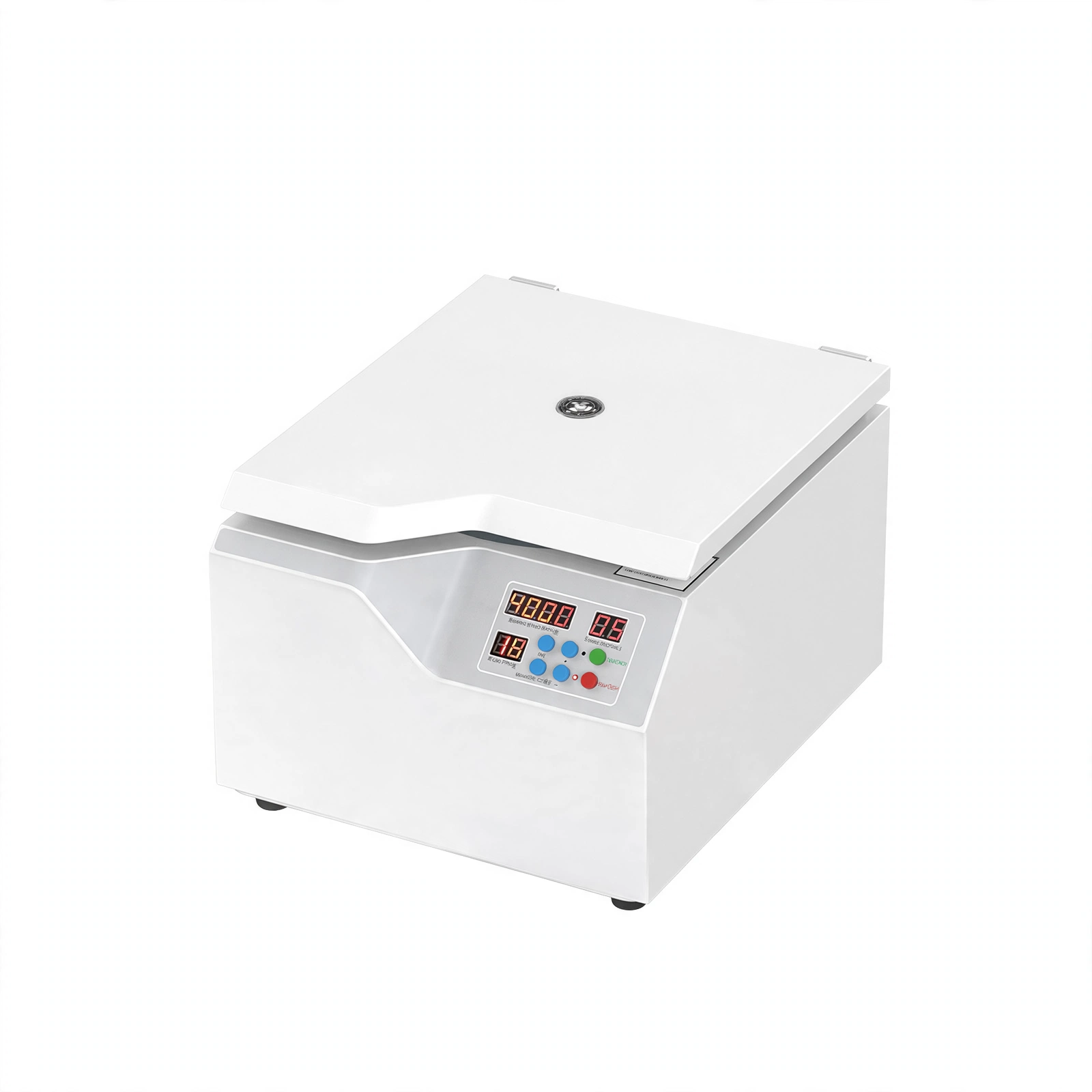

Immune Blood Centrifuge

Model BKC-TL4Ce Blood & clinical

BKC-TL4Ce can be used for lymphocyte washing in HLA examination, erythrocyte washing in freezing test, etc. It is a special centrifuge developed for experiments such as erythrocyte washing and immunological detection.

Max. speed
4,040 rpm
Max. RCF
2,147 ×g
Capacity
12*15ml
Power
150W
Noise
≤62dB
Net weight
20kg
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. SERO rotor and HLA rotor centrifuge procedures are standardized and can be easily invoked.

2. With special red blood cells to clean SERO rotors, lymph cells to clean HLA rotors, easy to install.

3. The rotor sleeve contains a clamp, which is convenient for the test tube to ft tightly with the rotor, and the centrifugal effect is better.

4. Can store multiple groups of user-defined programs, easy to call common programs, boot for the last program.

5. Food-grade silicone integral sealing ring to avoid aerosol spill and ensure the safety of staff.

6. Alarm detection function, real-time detection of door lock and motor status, safe and reliable operation.

7. Microcomputer control, DC brushless motor drive, large torque, no toner pollution, maintenance-free.

8. Multi-stage centrifugation/conventional centrifugation mode, can be switched at will; Can be set up 5 stage muli-stage centrifugation, to meet a variety of needs.

9. There are more than 30 user-defined program groups for separating and cleaning lymphocytes for HLA tests, all in one machine.
10. Optional automatic rotor recognition.

Technical Parameters:

Model BKC-TL4Ce
Max. Speed 4040rpm
Max. RCF 2147×g
Max. Capacity 12*15ml
Speed Precision ±10rpm(±1%)
Timing Range 1s~99min
Noise ≤62dB
Consumption 150W
Power Supply AC220V, 50/60Hz or 110V, 50/60Hz
External Size(L*W*H) 340*430*278mm
Package Size(L*W*H) 476*566*436mm
Net Weight 20kg
Gross Weight 24kg

Rotor:

Note: The default is round-bottom tube, with mark(▲) is sharp bottom tube.

Rotors Type Capacity Program Group Max. Speed Max. RCF Centrifugal Time Use

Lymphocyte
Washing
Rotor HLA

4M0015

12*(0.2~1.5)ml

E 4040rpm 2000×g 180s Lymphocyte isolation, culture
cell isolation
F 2860rpm 1000×g 3s Removal of platelets(thrombin treatment)
G 2860rpm 1000×g 60s The cleaning of lymphocytes

Red Blood
Cell
Washing
Rotor SERO

12*7/5ml(φ10~13*65
~100mm)

H 2120rpm 500×g 60s Blood group determination, hem agglutination reaction observation
I 3000rpm 1000×g 15s Cross fit test, anti globulin test
J 3000rpm 1000×g 60s Blood cell cleaning, serum and plasma extraction
Angle Rotor
4M0008
12*10ml / 4000rpm 2147×g / 1.5ml, 2/3/4mlvacuum blood collection tube
The details

Specifications

Model
BKC-TL4Ce
Max. Speed
4040rpm
Max. RCF
2147×g
Max. Capacity
12*15ml
Speed Precision
±10rpm(±1%)
Timing Range
1s~99min
Noise
≤62dB
Consumption
150W
Power Supply
AC220V, 50/60Hz or 110V, 50/60Hz
External Size(L*W*H)
340*430*278mm
Package Size(L*W*H)
476*566*436mm
Net Weight
20kg
Gross Weight
24kg
