Hot Plate

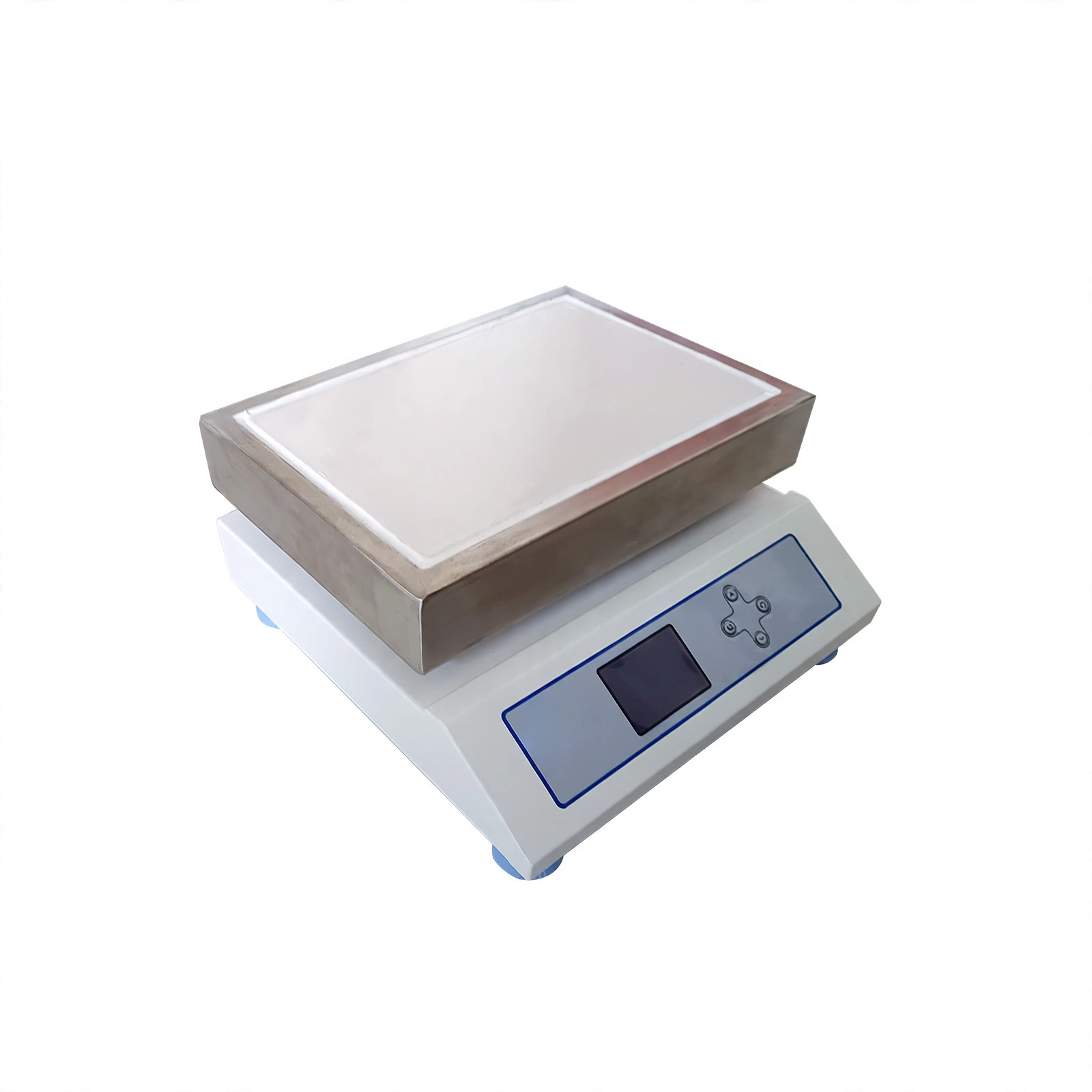

Laboratory Electric Ceramic Hot Plate CH-300 CH-400

Model CH-300 CH-400 Electric

An electric hot plate is a versatile heating device for industrial and laboratory applications, engineered based on the resistance heating principle. It converts electrical energy into thermal energy, delivering a stable heat source for sample heating, temperature maintenance, drying, and reactive processes. Widely used in chemical analysis, biological experiments, material testing, food processing, and industrial production, it boasts core advantages such as excellent heating uniformity, high temperature control precision, and user-friendly operation-effectively meeting the diverse temperature control requirements across various fields.

Dimensions
350*340*188mm / 450*4…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The heating plate adopts a full ceramic heating disk, featuring wear resistance and corrosion resistance.

2. The fully enclosed heating disk ensures no open flame, fast heating, and high safety and reliability.

3. The outer shell is made of high-quality cold-rolled steel plates via stamping, with a surface treated by spray coating technology.

4. It adopts an intelligent PID control method, which boasts advantages such as small temperature fluctuation and precise temperature control.

Technical Parameters:

Model CH-300 CH-400
Plate Size(mm) 300*200 400*280
Max. Temperature

450°C
Material(Main body)

Cold-rolled steel with anti-bacteria powder coating
Work Plate Material

Ceramic
Power Supply

AC220V, 50/60Hz
Consumption(W) 1800 2200
External Size(W*D*H) 350*340*188mm 450*420*188mm
Package Size(W*D*H) 460*430*290mm 570*500*290mm
Gross Weight 9kg 13.6kg
The details

Specifications

Model
CH-300 / CH-400
Plate Size(mm)
300*200 / 400*280
Max. Temperature
450°C
Material(Main body)
Cold-rolled steel with anti-bacteria powder coating
Work Plate Material
Ceramic
Power Supply
AC220V, 50/60Hz
Consumption(W)
1800 / 2200
External Size(W*D*H)
350*340*188mm / 450*420*188mm
Package Size(W*D*H)
460*430*290mm / 570*500*290mm
Gross Weight
9kg / 13.6kg
