Shaking Incubator

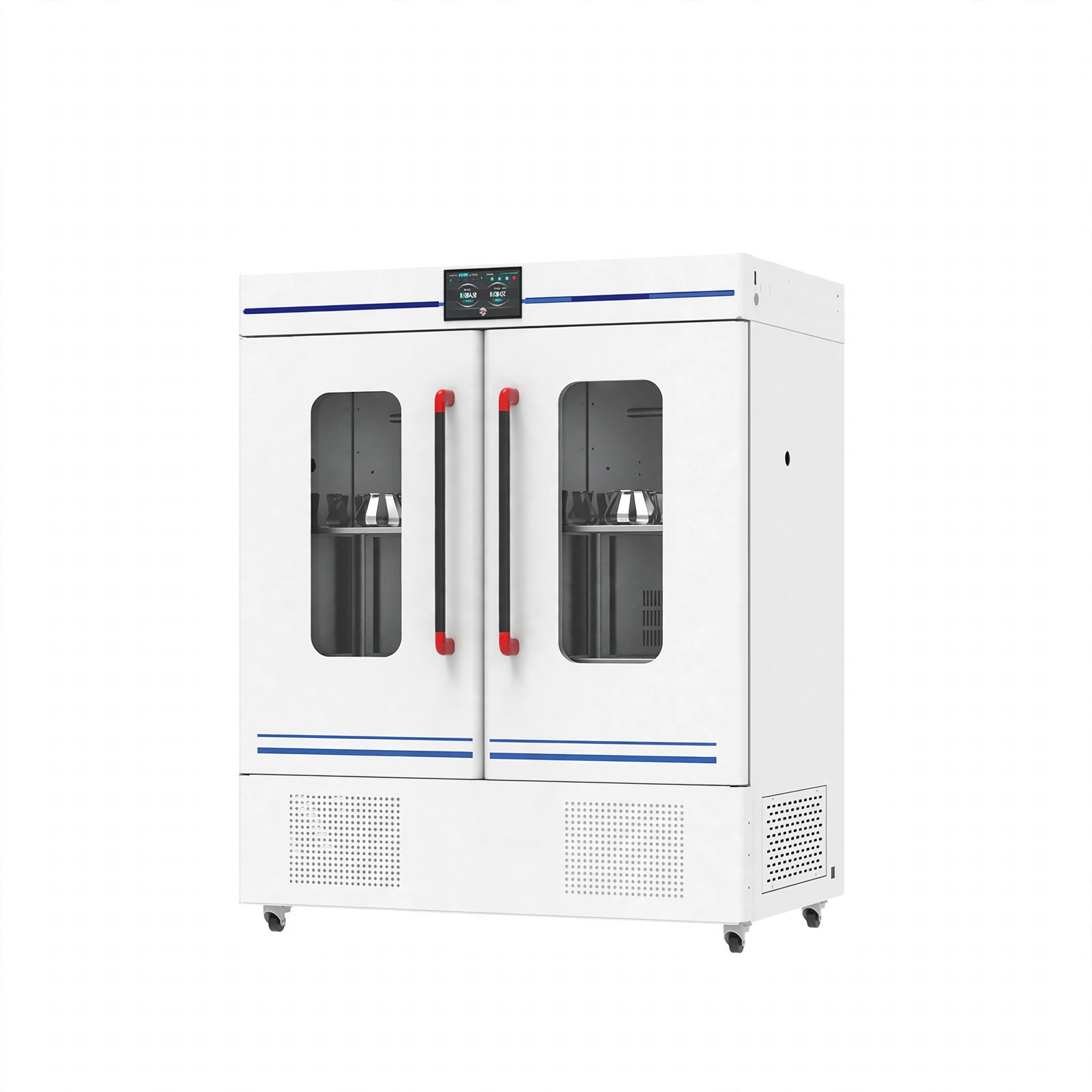

Large Capacity Vertical Type Shaking Incubator BJPX-SL220-LI

Model BJPX-SL220-LI Large capacity

The vertical dual-door single-control shaking incubator is a versatile laboratory instrument that integrates an incubator and an orbital shaker. The front double-door design offers greater flexibility in operation and handling. It is widely used for bacterial culture, fermentation, hybridization, biochemical reactions, as well as research on enzymes and tissues, where precise temperature and oscillation frequency control are critical.

Max. speed
300 rpm
Capacity
610L
Power
1500W
Net weight
550kg
Dimensions
1303*793*1564mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Clamp Specifications for Shaking Incubator:

Features:

1. Exterior material is powder-coated carbon steel, interior material is mirror finished stainless steel.

2. The temperature is controlled by a ‘Super Fuzzy PID’ system, featuring smaller overshoot, faster stabilization time, and better temperature control accuracy.

3. High-quality DC brushless motor features minimal vibration, low noise, high efficiency, maintenance-free operation, energy saving, and long-lasting performance. Equipped with single-axis balanced drive technology for ultra-low silent operation.

4. Equipped with over/under temperature alarms and abnormal shutdown alarms.

5. Automatic audio and visual alarms are triggered in case of shaker(Motor) malfunction or if the door is not properly closed.

6. The motor rotation direction can be set to forward, reverse, or alternating forward/reverse.

7. Programmed mode, which allows for multi-stage settings, and constant mode, which runs continuously at the set temperature and speed after configuration.

Technical Parameters:

Model BJPX-SL220-LI
Capacity 610L
Temperature Control Range 4~60℃
Temperature Control Accuracy 0.1℃
Temperature Uniformity ≤±1℃(@37℃)
Temperature Fluctuation ≤±0.5℃
Ambient Temperature 15~35℃
Timing Range 0~999min(h)
Control Mode PID microcomputer control
Display LCD touch screen
Circulation Mode Forced convection
Oscillation Mode Rotary shaking
Speed Range 30~300rpm
Speed Accuracy ±1rpm
Swing Amplitude of The Plate φ26mm
Refrigerant R290/150g
Standard Capacity 250ml*45/500ml*30(Defaultshipping configuration)/1000ml*20/2000ml*20/3000ml*10/5000*7
Max. Capacity Clamp flask: 50ml*162/100ml*124/150ml*104/250ml*86/500ml*64/1000ml*32/2000ml*20/3000ml*16/5000ml*12

Tube rack*6

96-well plate*30

Clamp rod shaking plate*4

Horizontal thermostatic shaker spring plate*2
Defrost Function Automatic defrosting
Consumption 1500W
Power Supply AC220V, 50Hz(Standard); 110V, 60Hz(Optional, external transformer)
Shelf 970*460mm*2
Standard Accessory UV light*1, LED light*1
Optional Accessory Printer, USB interface
Internal Size(W*D*H) 1198*520*990mm
External Size(W*D*H) 1303*793*1564mm
Package Size(W*D*H) 1450*980*1750mm
Net Weight 550kg
Gross Weight 580kg
The details

Specifications

Model
BJPX-SL220-LI
Capacity
610L
Temperature Control Range
4~60℃
Temperature Control Accuracy
0.1℃
Temperature Uniformity
≤±1℃(@37℃)
Temperature Fluctuation
≤±0.5℃
Ambient Temperature
15~35℃
Timing Range
0~999min(h)
Control Mode
PID microcomputer control
Display
LCD touch screen
Circulation Mode
Forced convection
Oscillation Mode
Rotary shaking
Speed Range
30~300rpm
Speed Accuracy
±1rpm
Swing Amplitude of The Plate
φ26mm
Refrigerant
R290/150g
Standard Capacity
250ml*45/500ml*30(Default shipping configuration)/1000ml*20/2000ml*20/3000ml*10/5000*7
Max. Capacity
Clamp flask: 50ml*162/100ml*124/150ml*104/250ml*86/500ml*64/1000ml*32/2000ml*20/3000ml*16/5000ml*12Tube rack*696-well plate*30Clamp rod shaking plate*4Horizontal thermostatic shaker spring plate*2
Defrost Function
Automatic defrosting
Consumption
1500W
Power Supply
AC220V, 50Hz(Standard); 110V, 60Hz(Optional, external transformer)
Shelf
970*460mm*2
Standard Accessory
UV light*1, LED light*1
Optional Accessory
Printer, USB interface
Internal Size(W*D*H)
1198*520*990mm
External Size(W*D*H)
1303*793*1564mm
Package Size(W*D*H)
1450*980*1750mm
Net Weight
550kg
Gross Weight
580kg
