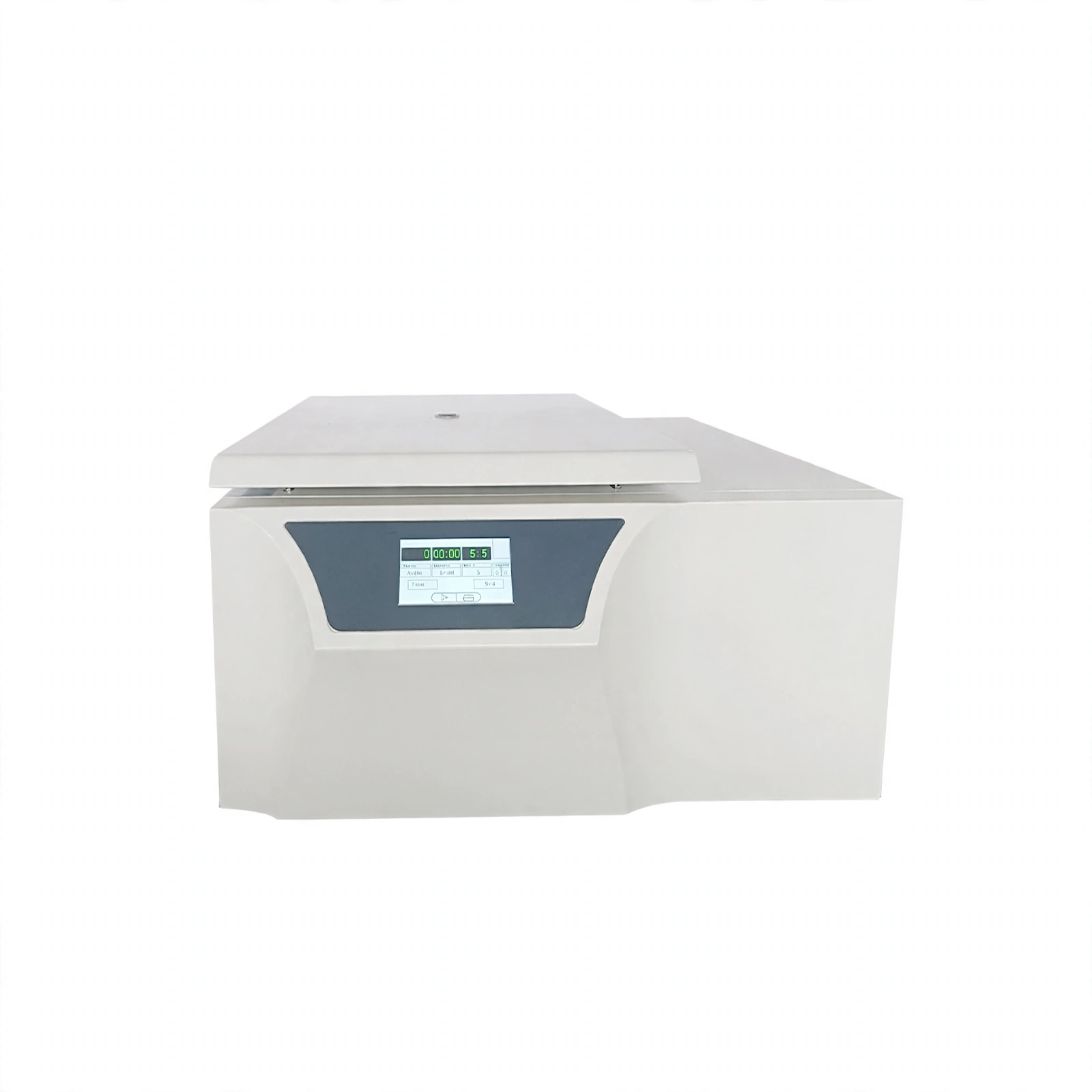

Low Speed Large Capacity Refrigerated Centrifuge BKC-TL5RL BKC-VL6RLII

A closer look

About this equipment

Features:

1. Programmable microprocessor control(AC brushless motor).

2. LCD& LED display: speed, RCF, time and temperature, conversion of RPM/RCF.

3. CFC-free refrigeration, fast cooling, cycle defrost system.

4. External cold rolled steel with powder coating steel, stainless steel centrifugal chamber and lid.

5. Fan-forced air circulation system for fast recovery of temperature.

6. 10 procedures of adjustable speed from grad 0 to 9 and 40 kinds of self-defining modes.

7. Electronic lock lid and interlock safety system.

8. Alarm: lid open, imbalance, over speed, over temperature, rotor mounting abnormally.

9. Function: RCF selection, quick run, automatic rotor recognition and backup, electronic Imbalance detection, dynamic electric brake system.

Technical Parameters:

Model	BKC-TL5RL	BKC-VL6RLII
Max. Capacity	4*750ml	6*1000ml
Max. Speed	5500rpm	6000rpm
Max. RCF	4390xg	6680xg
Speed Precision	±30rpm	±20rpm
Temp. Range	-20~40°C
Temp. Accuracy	±1°C
Timing Range	0~99h59min59s	0~99h59min59s
Noise	≤60dB	≤58dB
Consumption	1.2KW	3KW
Power Supply	AC220±22V 50/60Hz (Standard); AC110V 60Hz (Optional)
External Size(WDH) mm	703710400	725940970
Packing Size(WDH) mm	910825570	87010401380
Net Weight(kg)	110	280
Gross Weight(kg)	130	330

Rotor for BKC-TL5RL:

No.	Rotor	Max. Speed(rpm)	RCF (xg)	capacity	Dimension of Tube (mm)
NO.1	Angle Rotor	5500	4390	12*10ml	Φ16*83
NO.2	Angle Rotor	5500	4390	12*15ml	Φ17*121
NO.3	Swing Rotor	/	/	Support	/
	Tube Rack	4000	2810	4*100ml	Φ38*116
				42100ml	Φ38*116
				4410ml	Φ16*106
				4610ml	Φ16*106
				4810ml	Φ16*106
				4415ml(▲/●)	Φ16*120
				4615ml(▲/●)	Φ16*120
				4815ml(▲/●)	Φ16*120
				4*50ml(▲/●)	Φ29*116
				4250ml(▲/●)	Φ29*116
NO.4	Swing Rotor	4200	3500	4*250ml	Φ62*126
	Adapter	4200	3500	485ml	/
				487ml	/
				4710ml	/
				4615ml	/
				4250ml(●)	/
				4150ml(▲)	/
				4*100ml	/
NO.5	Swing Rotor	4000	3040	4*500ml	Φ80*137
	Adapter	4000	3040	4155ml	/
				4157ml	/
				41210ml	/
				4815ml(▲)	/
				4450ml(▲/●)	/
				42100ml	/
				4*250ml	/
NO.6	Swing Rotor	4000	3180	4*750ml	Φ99*137
NO.7	Swing Rotor	4200	3500	4127/5ml	Φ13*110/90
NO.8	Swing Rotor	4200	3500	4187/5ml	Φ13*110/90
NO.9	Swing Rotor	4000	3040	4247/5ml	Φ13*110/90
NO.10	Microplate Rotor	4000	2000	2248well	Microplate
NO.11	Microplate Rotor	4200	2360	2296well	Microplate

Rotor for BKC-VL6RLII：

No.	Rotor	Max. Speed(rpm)	RCF(xg)	Capacity	Dimension of Bottle (mm)
No.1	Angle Rotor	6000	5650	6*300ml	Φ63*157
No.2	Angle Rotor	6000	6680	6*500ml	Φ74*168
No.3	Swing Rotor (round cup)	4200	5030	6*1000ml	Φ100*175
No.4	Swing Rotor (square cup)	4200	5030	6*1000ml	/

With mark(●) or no mark is round-bottom tube, with mark(▲) is sharp-bottom tube

The details

Specifications

Model: BKC-TL5RL / BKC-VL6RLII
Max. Capacity: 4*750ml / 6*1000ml
Max. Speed: 5500rpm / 6000rpm
Max. RCF: 4390xg / 6680xg
Speed Precision: ±30rpm / ±20rpm
Temp. Range: -20~40°C
Temp. Accuracy: ±1°C
Timing Range: 0~99h59min59s
Noise: ≤60dB / ≤58dB
Consumption: 1.2KW / 3KW
Power Supply: AC220±22V 50/60Hz (Standard); AC110V 60Hz (Optional)
External Size(W*D*H) mm: 703*710*400 / 725*940*970
Packing Size(W*D*H) mm: 910*825*570 / 870*1040*1380
Net Weight(kg): 110 / 280
Gross Weight(kg): 130 / 330
