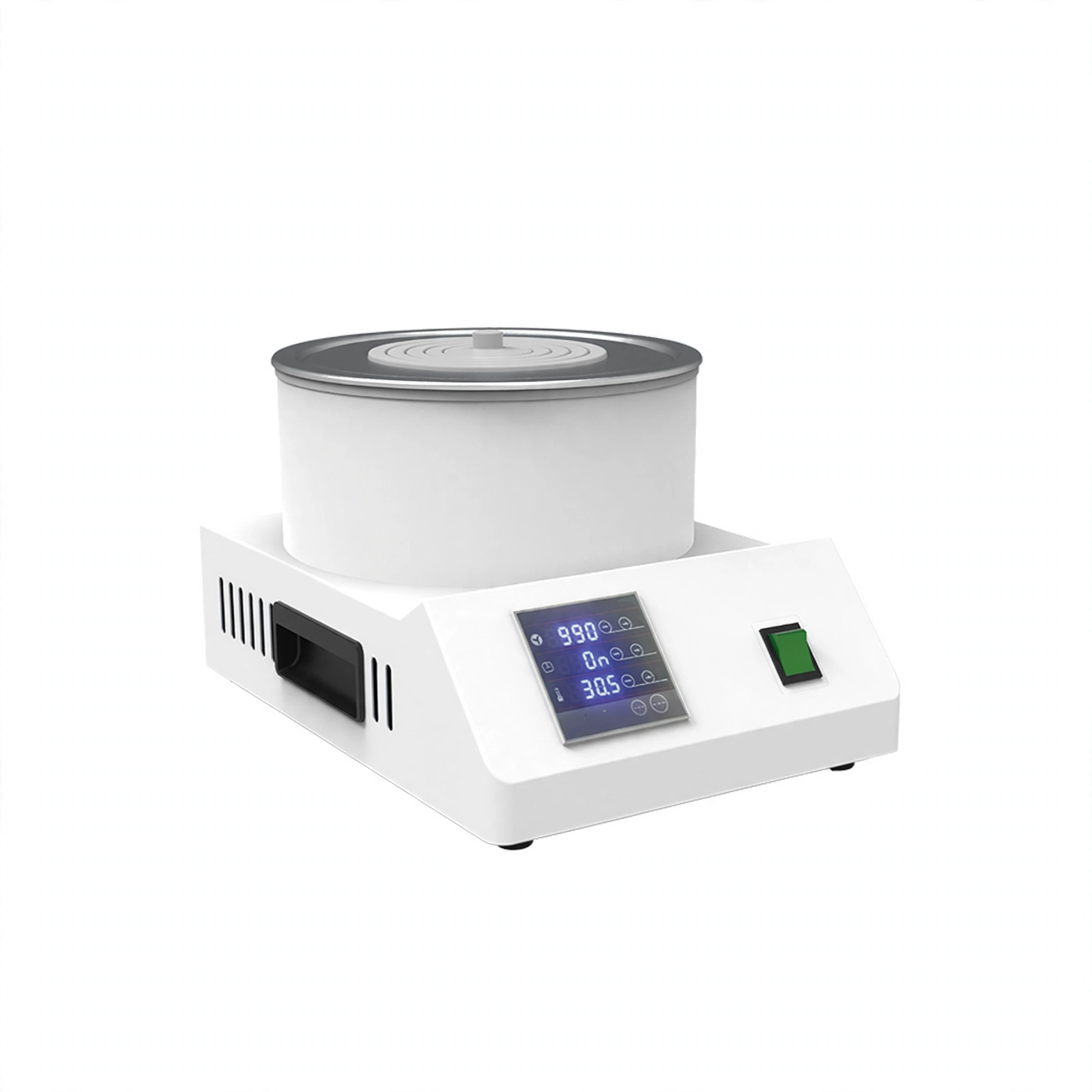

The magnetic stirring water bath combines the functions of constant temperature control and magnetic stirring, and can provide a stable and adjustable temperature environment. The built-in magnetic stirring device can achieve uniform stirring of the solution. It is suitable for laboratories and laboratories of various universities, scientific research enterprises and institutions, and is widely used for stirring, drying, concentration, distillation, impregnation of chemical reagents, impregnation of drugs and biological products, and can also be used for constant temperature heating of water baths and other temperature tests.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Adopt intelligent digital instrument, high temperature control accuracy, can set temperature, speed and timing working time, intuitive and accurate, clear at a glance.
2. Adopt program-controlled integrated voltage stabilization circuit, high-quality DC motor, low noise, stable speed, speed is not affected by voltage fluctuations.
3. Adopt fully enclosed ring heater, uniform heating.
4. The inner tank is made of 304 stainless steel, which has excellent corrosion resistance.
5. Constant temperature heating and stirring of multiple samples at the same time can realize multiple-hole individual stirring and multiple-hole individual temperature control.
6. The stirring rod made of polytetrafluoroethylene and high-quality magnetic steel is resistant to high temperature, wear and chemical corrosion.
Technical Parameters:
| Model | MSW-SCG1 | MSW-SCG2 | MSW-SCG4 | MSW-SCG6 | MSW-SCG8 |
| Display |
LED Display |
||||
| Temp. Range |
RT+5~100℃ |
||||
| Temp. Precision |
≤±0.5℃(Above 90℃, it is ±1℃) |
||||
| Stirring Speed |
30~2000rpm |
||||
| Timing Range |
0~999min |
||||
| Temperature Control Mode |
Digital display temperature control, built-in temperature sensor |
||||
| Speed Control Mode |
Digital display speed control |
||||
| Heating Consumption | 400W | 400W*2 | 400W*4 | 400W*6 | 400W*8 |
| Stirring Consumption | 25W | 25W*2 | 25W*4 | 25W*6 | 25W*8 |
| Power Supply |
Standard: AC220V, 50/60Hz; |
Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz(External transformer) |
|||
| Chamber Size | φ220*100mm | φ220*100mm*2 | φ220*100mm*4 | φ220*100mm*6 | φ220*100mm*8 |
| External Size(L*W*H) | 340*250*220mm | 500*340*220mm | 590*500*220mm | 750*600*220mm | 1050*650*220mm |
| Packing Size(L*W*H) | 415*305*270mm | 565*415*270mm | 720*630*400mm | 875*715*400mm | 1080*780*410mm |
| Gross Weight | 5.5kg | 8.8kg | 30kg | 41kg | 55kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
