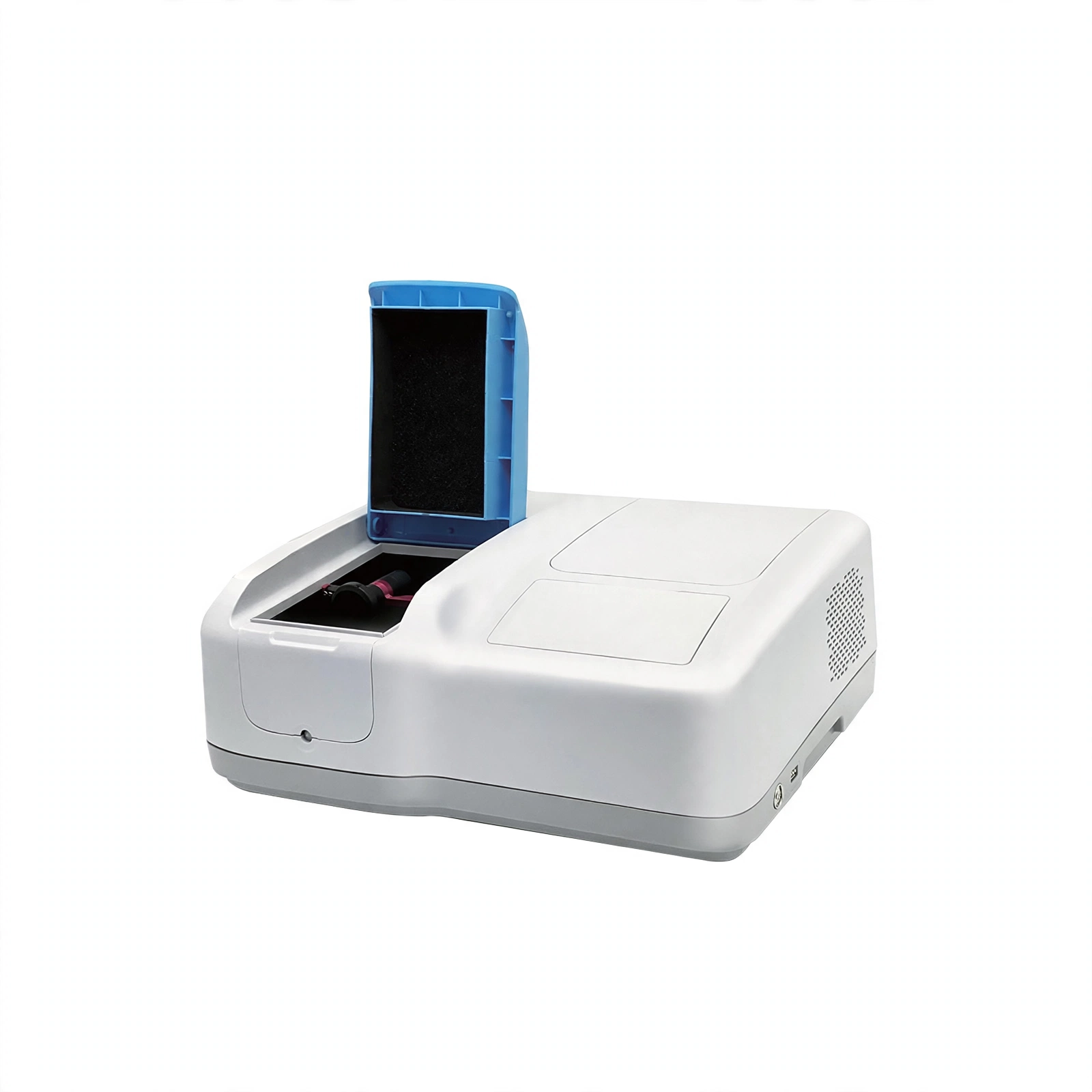

The Micro-Volume UV/VIS Spectrophotometer is a compact, high-performance analytical instrument engineered for rapid, accurate measurement of sample absorbance in the ultraviolet and visible spectrum.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. The uniquely designed sample holder can test a small amount of DNA and protein.
2. Detection is rapid, drop sample-rotation-detection.
3. The whole measurement process without light loss, to ensure the accuracy of the results.
4. The function can be expanded, and can complete quantitative testing, wavelength scanning, kinetics, multi-wavelength and other functions,and can also be used for conventional colorimetric blood measurement.
Technical Parameters:
| Model | BK-CW500 |
| Minimum Sample Capacity | 0.2μL |
| Ultromicro Optical Distance | 0.5mm |
| Detectable Concentration Range | 2.5~7500ng/μl(dsDNA) |
| Min Precise Detect Concentration | 10ng/μl(dsDNA) |
| Max Precise Detect Concentration | 5000ng/μl(dsDNA) |
| DNA reproducibility | <±1.0%(dsDNA, @1000ng/μl) |
| Wavelength Range | 190~1100nm |
| Spectral Bandwidth | 4nm |
| Optical System | Grating double beam |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | 0.3nm |
| Max Scanning Speed | 4000nm/min |
| Photometric Accuracy | ±0.5%T or ±0.004A@1A |
| Photometric Range | 0~200%T, -0.3~0.3A, 0~9999Conc |
| Stray Light | 0.05%T@220, 340nm |
| Stability | ±0.001A/h@500nm |
| Baseline Flatness | ±0.002A |
| Light Source | Halogen&Deuterium lamp |
| Output | USB print and data output, Connect PC |
| Power Supply | AC110/220V±10%, 50/60Hz |
| Package Size(W*D*H)mm | 480*600*360 |
| Gross Weight(kg) | 11 |
