Laboratory Incubator

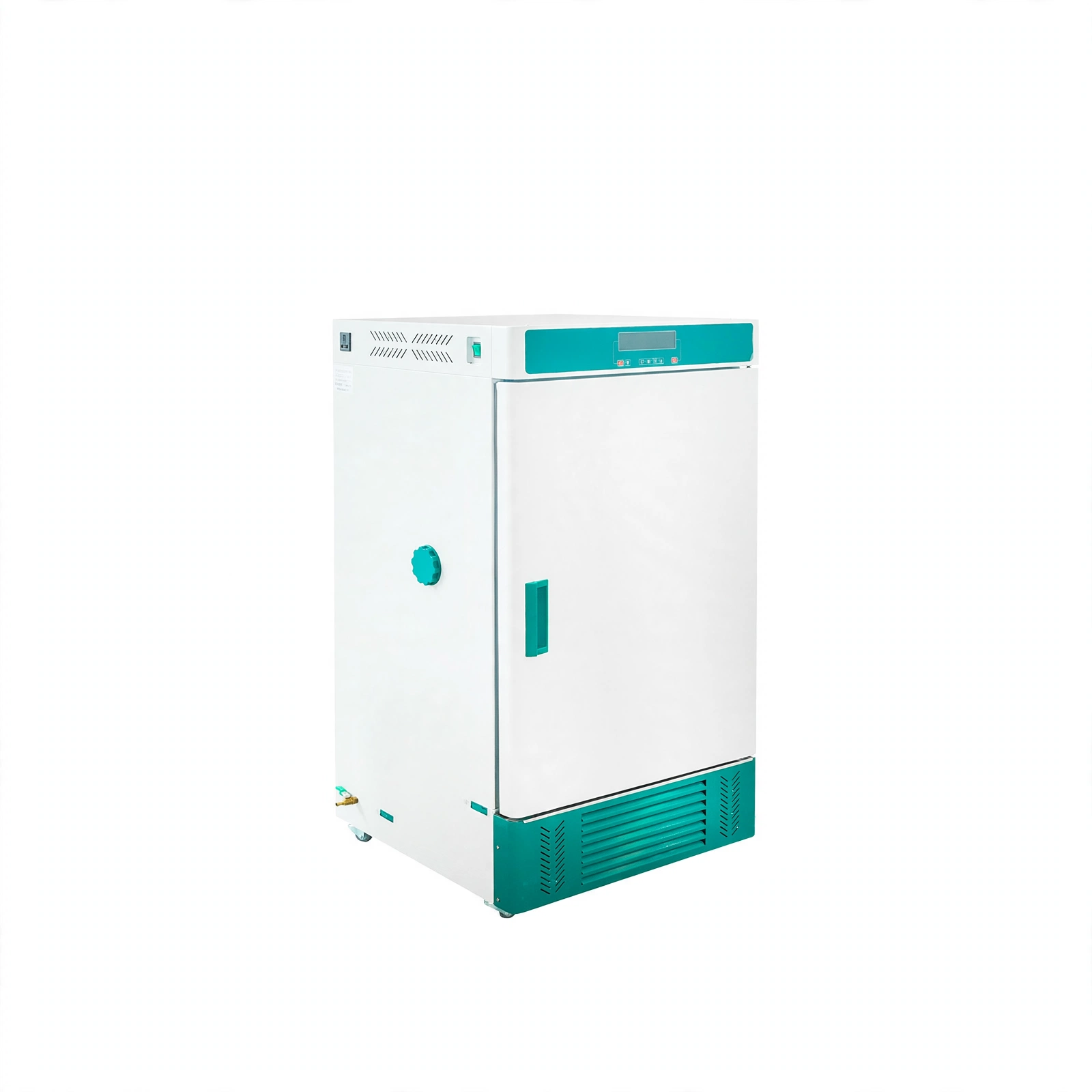

Mould Incubator BJPX-M70PF BJPX-M150PF BJPX-M250PF

Model BJPX-M70PF BJPX-M150PF BJPX-M250PF Refrigerated

This series of products are widely used in medical and health, animal husbandry research, environmental protection, agricultural scientific research and other fields.

Capacity
70L / 150L / 250L
Temperature
No humidification: 0~…
Max. load
15
Power
1.8KW / 2KW / 2.2KW
Net weight
69 / 86 / 100
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features：

1. Unique internal wind circulation structure design, breeze circulate fan make inner chamber temperature uniformity.

2. LCD display 30-stage program control, round move, ladder operating, intelligent PID temperature control system, high precise temperature control PT100 sensor equipped, high precise and stability import humidity sensor component to control humidity automatically.

3. Double door structure, with high quality stalinite to observe samples, out er door with magnetic strip, convenient to on and off, good sealing.

4. Intelligent defrosting function ensure device long-time run without frost.

5. Inner humidifying system with small particles , good humidity uniformity, low water consumption and function of alarm when is short of water.

Technical Parameters:

Model BJPX-M70PF BJPX-M150PF BJPX-M250PF
Cycle Mode

Forced convection
Temp. Range

No humidification: 0~65℃; Humidification: 10~65℃
Temp. Resolution Ratio

0.1℃
Temp. Motion

High Temp.: ±0.5℃    Low Temp.: ±1℃
Temp. Uniformity

±1℃
Humidity Range

45%~95%RH
Humidity Stability

±5%RH
Inner Chamber

Mirror stainless steel
Outer Shell

Cold rolling steel electrostatic spraying exterior
Insulation Layer

Polyurethane
Heater

Stainless steel heater
Consumption 1.8KW 2KW 2.2KW
Compressor

Air cooled hermetic compressor
Cryogen

R134a
Defrost Structure

Automatic control intelligent defrosting
Humidifying Method

External
Test Hole

Plastic test hole Ф43mm
Sterilizing Lamp

Standard ozone-free type
Controlled External Power Supply

Universal socket(one)
Temp. Control Mode

30 segment lcd program
Temp. Setting Mode

Touch button setting
Temp. Display Mode

Measuring temperature: LCD upper row

Setting temperature: the lower row
Humidity Control Mode

Auto
Timer

0~99.9h*30 segment(with timing wait function)
Operation Function

Fixed value operation, timing function, auto stop, program operation
Sensor

PT100
Humidity Sensor

High precision anti-condensation
Additional Function

Deviation correction, Menu key lock

Power failure parameter memory

Additional character: UV light, loop self diagnosis
Safety Device

Over temperature alarm, over humidity alarm, water shortage alarm
Volume 70L 150L 250L
Load Per Rack(kg)

15
Shell Number 5 9 12
Shell Space

35mm
Supply(50/60Hz) Current Rating AC220V/8.2A AC220V/9.1A AC220V/10A
Shell

2
Shelf Rack

4
Optional Accessories

Spare shell, Touche screen controller, RS485 interface USB interface and software, Printer, Recorder, Remote control, U-disk storage
Inner Chamber Size(W*L*H)(mm) 415*350*500 490*400*750 500*515*950
Exterior Size(W*L*H(mm) 571*591*1051 646*641*1301 656*741*1501
Packing Size(W*L*H(mm) 680*676*1235 751*730*1490 761*830*1690
Net Weight(kg) 69 86 100
Gross Weight(kg) 92 114 139
The details

Specifications

Model
BJPX-M70PF / BJPX-M150PF / BJPX-M250PF
Cycle Mode
Forced convection
Temp. Range
No humidification: 0~65℃; Humidification: 10~65℃
Temp. Resolution Ratio
0.1℃
Temp. Motion
High Temp.: ±0.5℃ Low Temp.: ±1℃
Temp. Uniformity
±1℃
Humidity Range
45%~95%RH
Humidity Stability
±5%RH
Inner Chamber
Mirror stainless steel
Outer Shell
Cold rolling steel electrostatic spraying exterior
Insulation Layer
Polyurethane
Heater
Stainless steel heater
Consumption
1.8KW / 2KW / 2.2KW
Compressor
Air cooled hermetic compressor
Cryogen
R134a
Defrost Structure
Automatic control intelligent defrosting
Humidifying Method
External
Test Hole
Plastic test hole Ф43mm
Sterilizing Lamp
Standard ozone-free type
Controlled External Power Supply
Universal socket(one)
Temp. Control Mode
30 segment lcd program
Temp. Setting Mode
Touch button setting
Temp. Display Mode
Measuring temperature: LCD upper rowSetting temperature: the lower row
Humidity Control Mode
Auto
Timer
0~99.9h*30 segment(with timing wait function)
Operation Function
Fixed value operation, timing function, auto stop, program operation
Sensor
PT100
Humidity Sensor
High precision anti-condensation
Additional Function
Deviation correction, Menu key lockPower failure parameter memoryAdditional character: UV light, loop self diagnosis
Safety Device
Over temperature alarm, over humidity alarm, water shortage alarm
Volume
70L / 150L / 250L
Load Per Rack(kg)
15
Shell Number
5 / 9 / 12
Shell Space
35mm
Supply(50/60Hz) Current Rating
AC220V/8.2A / AC220V/9.1A / AC220V/10A
Shell
2
Shelf Rack
4
Optional Accessories
Spare shell, Touche screen controller, RS485 interface USB interface and software, Printer, Recorder, Remote control, U-disk storage
Inner Chamber Size(W*L*H)(mm)
415*350*500 / 490*400*750 / 500*515*950
Exterior Size(W*L*H(mm)
571*591*1051 / 646*641*1301 / 656*741*1501
