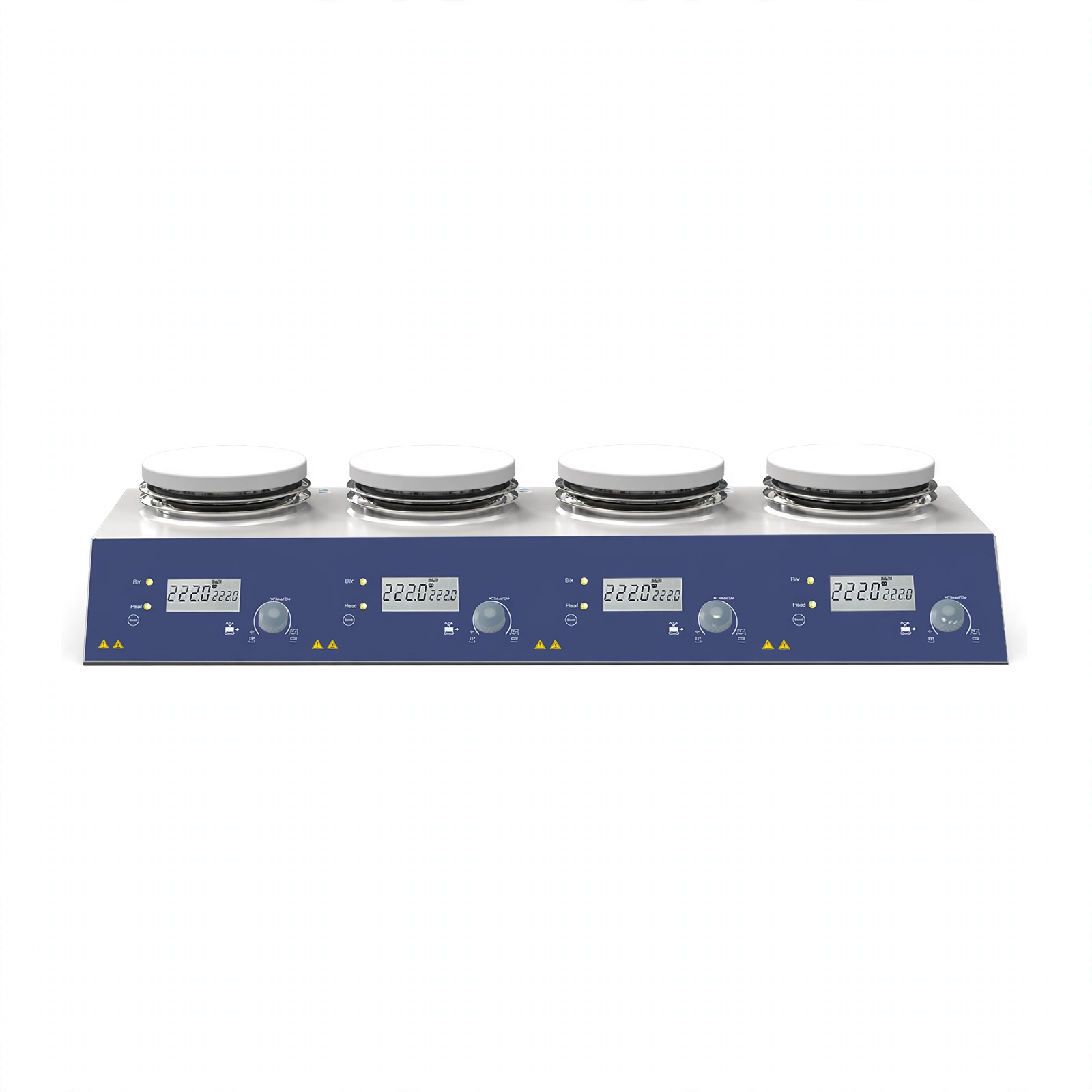

Compatible with various heating block or reaction vessels for a variety of application scenario Ultra space-saving with 4/6 channel integrated in one instrument
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features：
1. 4/6 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.
2. Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
3. Powerful, rapid heating with accurate PID temperature control
4. Spark-free DC brushless motor with extended life and no maintenance
5. Compatible with various heating block or reaction vessels for a variety of application scenario
Ultra space-saving with 4/6 channel integrated in one instrument
6. “HOT”warning flashes on the LCD display if the work plate temperature is above 50°C after the user turn off the power switch.
7. Two independent safety circuits keep monitoring the instrument.
8. Reliable safety mechanism, competent with tasks without human surveillance.
Technical Parameters：
| Model | MS-H280-S4 | MS-H280-S6 |
| Work Plate Dimension | φ134mm | φ134mm |
| Work Plate Material | Aluminum with ceramic coating | Aluminum with ceramic coating |
| Motor Type | Brushless DC motor | Brushless DC motor |
| Motor Rating Output | 5W*4 | 5W*6 |
| Heating Power | 600W*4 | 600W*6 |
| Total Power | 605W*4 | 605W*6 |
| Power Supply | 100-120V,60Hz;200-240V,50Hz | 100-120V,60Hz;200-240V,50Hz |
| Stirring Positions | 4 | 6 |
| Max. Stirring Quantity (H2O) | 3L*4 | 3L*6 |
| Max. Stirring Quantity (H2O) Per Channel | 3L | 3L |
| Speed Range | 200-1500rpm | 200-1500rpm |
| Speed Control Accuracy [rpm] | ±20 | ±20 |
| Speed Display | LCD | LCD |
| Temperature Display | LCD | LCD |
| Heating Temperature Range | 25-280°C | 25-280°C |
| Overheating Protection | 420℃ | 420℃ |
| Temperature Display Resolution | 0.1℃ | 0.1℃ |
| Temperature Control Accuracy | ±1℃(<100℃),±1%(>100°C) | ±1℃(<100℃),±1%(>100°C) |
| External Temperature Sensor | PT1000(accuracy±0.2℃) | PT1000(accuracy±0.2℃) |
| IP Protection Class | IP21 | IP21 |
| Product Dimension | 701*265*127mm | 564*523*127mm |
| Net Weight | 8.7Kg | 12.7Kg |
| Permissible Ambient Temperature and Humidity | 5~40°C, 80% RH | 5~40°C, 80% RH |
| Packing Size | 810*390*250mm | 640*600*230mm |
| Gross Weight | 10.8Kg | 16.2Kg |
