Flash Point Tester

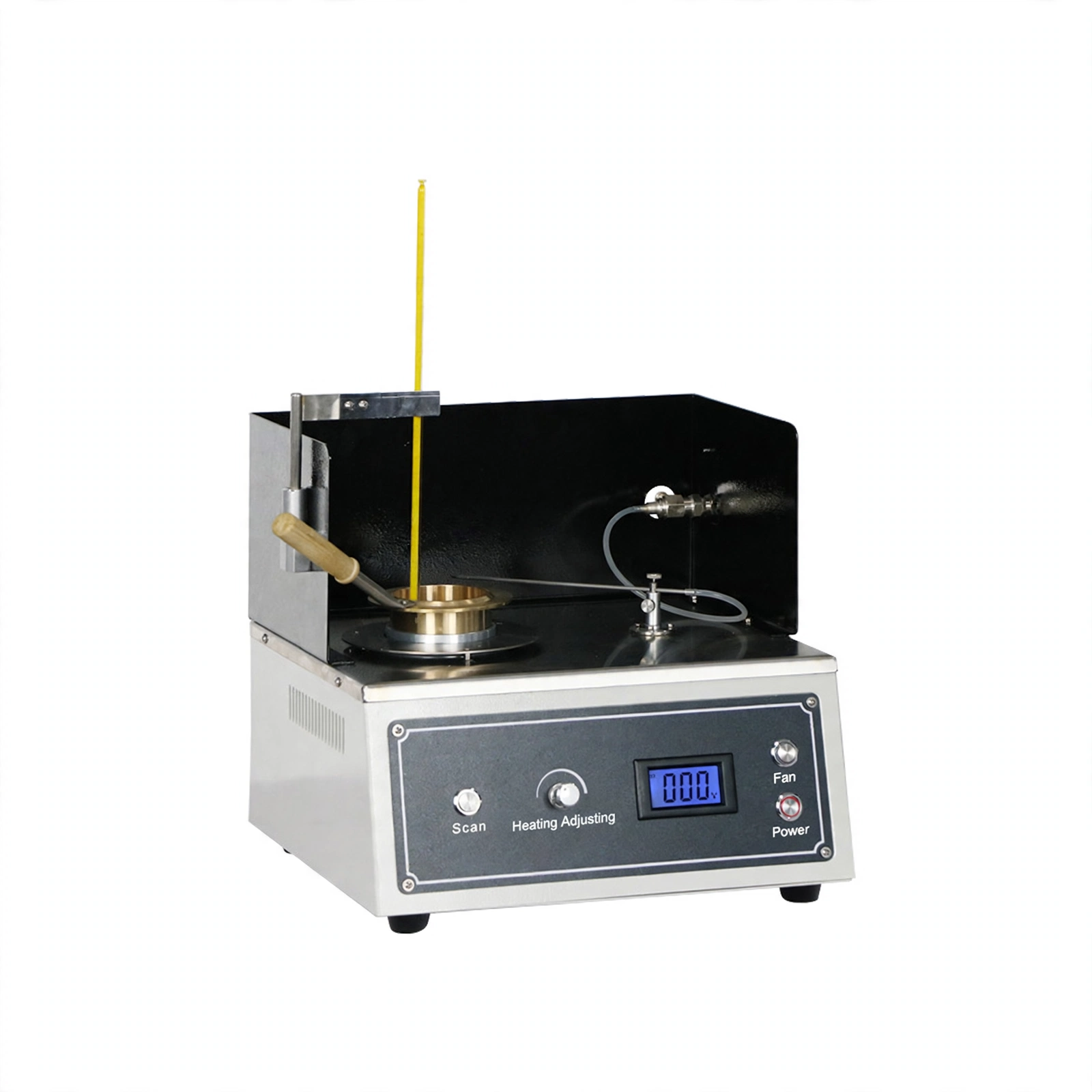

Open-Cup Flash Point Tester

Model BK-FP3536 BK-FP3536D Petrol

Application: This instrument is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester.

Power
≤600W / ≤750W
Dimensions
350*290*350mm / 510*3…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

BK-FP3536:

1. It adopts special heating furnace to ensure the safety of test.

2. The heating power is continuously adjustable. It can meet requirements of test.

3. The instrument is fully self-contained complete. The operator can do determination as long as connecting with coal gas or other civil gas.

4. With fast cooling function, it can improve test efficiency.

BK-FP3536D:

1. 8-inch IPS high-definition capacitive screen, the test data and parameters are displayed by curve in real time.

2. Automatic measurement of atmospheric pressure, automatic correction of flash point value.

3. Equipped with Bluetooth interface. The user can query test data anytime.

4. Electronic ignition, gas flame.

5. Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.

Technical Parameters:

Model BK-FP3536 BK-FP3536D
Thermometer

-6°C~400°C. It is the same as thermometer ASTM 11C

Ambient Temperature

15°C~35°C

Relative Humidity

≤85%

Consumption ≤600W ≤750W
Test Flame Applicator

It applies the test flash automatically

Heating Device Furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 500W 1. Initial heating: (14~17)°C/min

2. It is (5~6)°C/min after reaching the preset flash point 20 °C

Igniting Device (1) Ignition source: coal gas(or civil gas)

(2) Nozzle aperture: about 0.8mm

Electric ignition

Diameter of igniter: 0.7mm~0.8mm

Flash Point Determination Range: Ambient to 400°C

Accuracy: 0.1°C

Power Supply

AC220V, 50Hz

Dimension(W*D*H) 350*290*350mm 510*320*330mm
Package Size(W*D*H) 650*450*420mm 690*500*610mm
Gross Weight 20kg 35kg
The details

Specifications

Model
BK-FP3536 / BK-FP3536D
Thermometer
-6°C~400°C. It is the same as thermometer ASTM 11C
Ambient Temperature
15°C~35°C
Relative Humidity
≤85%
Consumption
≤600W / ≤750W
Test Flame Applicator
It applies the test flash automatically
Heating Device
Furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 500W / 1. Initial heating: (14~17)°C/min 2. It is (5~6)°C/min after reaching the preset flash point 20 °C
Igniting Device
(1) Ignition source: coal gas(or civil gas) (2) Nozzle aperture: about 0.8mm / Electric ignition Diameter of igniter: 0.7mm~0.8mm
Flash Point Determination
/ Range: Ambient to 400°C Accuracy: 0.1°C
Power Supply
AC220V, 50Hz
Dimension(W*D*H)
350*290*350mm / 510*320*330mm
Package Size(W*D*H)
650*450*420mm / 690*500*610mm
Gross Weight
20kg / 35kg
