Laboratory Analysis Equipment

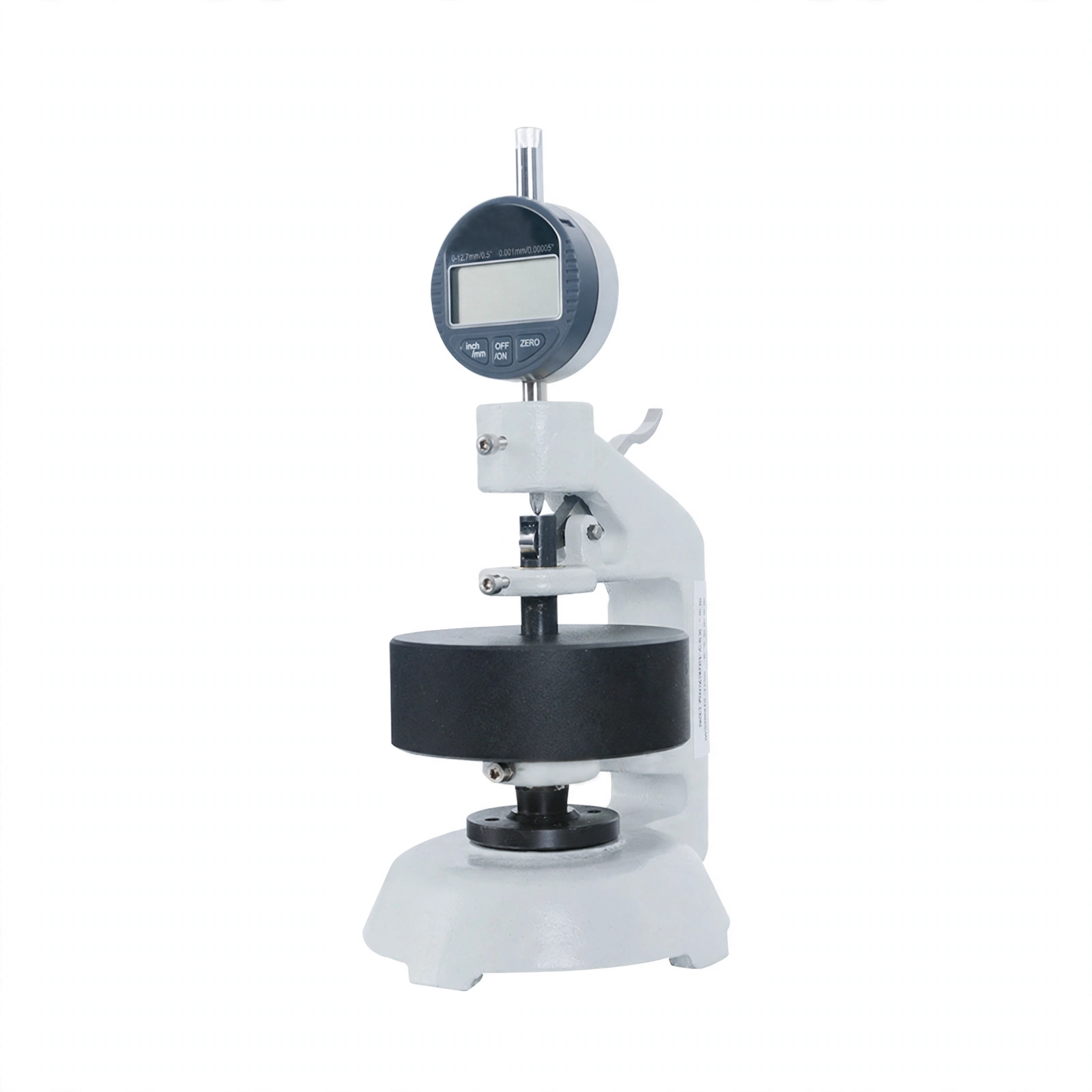

Paper Thickness Meter

Model PTM-4

PTM-4 is a special instrument to measure the thickness of paper and cardboard, widely used in paper, cardboard and other sheet materials. It's the essential equipment for the paper making,packing industry, research and inspection department.

Net weight
5.5kg
Dimensions
233*160*120mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. No need to connect the power supply, convenient and fast.

2. Simple operation, high measurement accuracy.

Technical Parameter:

Model PTM-4
Measuring Range 0~4mm
Accuracy 0.001mm
Contact Pressure 100±10 kPa
Contact Diameter 16.0±0.5 mm
Error Of Depth of Parallelism 0.005mm or 1%
Indication Error ±0.0025mm or±0.5%
Indication Variability ≤0.0025mm or≤0.5%
External Size 233*160*120mm
Package Size 200*200*200mm
Net Weight 5.5kg
Gross Weight 8kg
The details

Specifications

Model
PTM-4
Measuring Range
0~4mm
Accuracy
0.001mm
Contact Pressure
100±10 kPa
Contact Diameter
16.0±0.5 mm
Error Of Depth of Parallelism
0.005mm or 1%
Indication Error
±0.0025mm or ±0.5%
Indication Variability
≤0.0025mm or ≤0.5%
External Size
233*160*120mm
Package Size
200*200*200mm
Net Weight
5.5kg
Gross Weight
8kg
