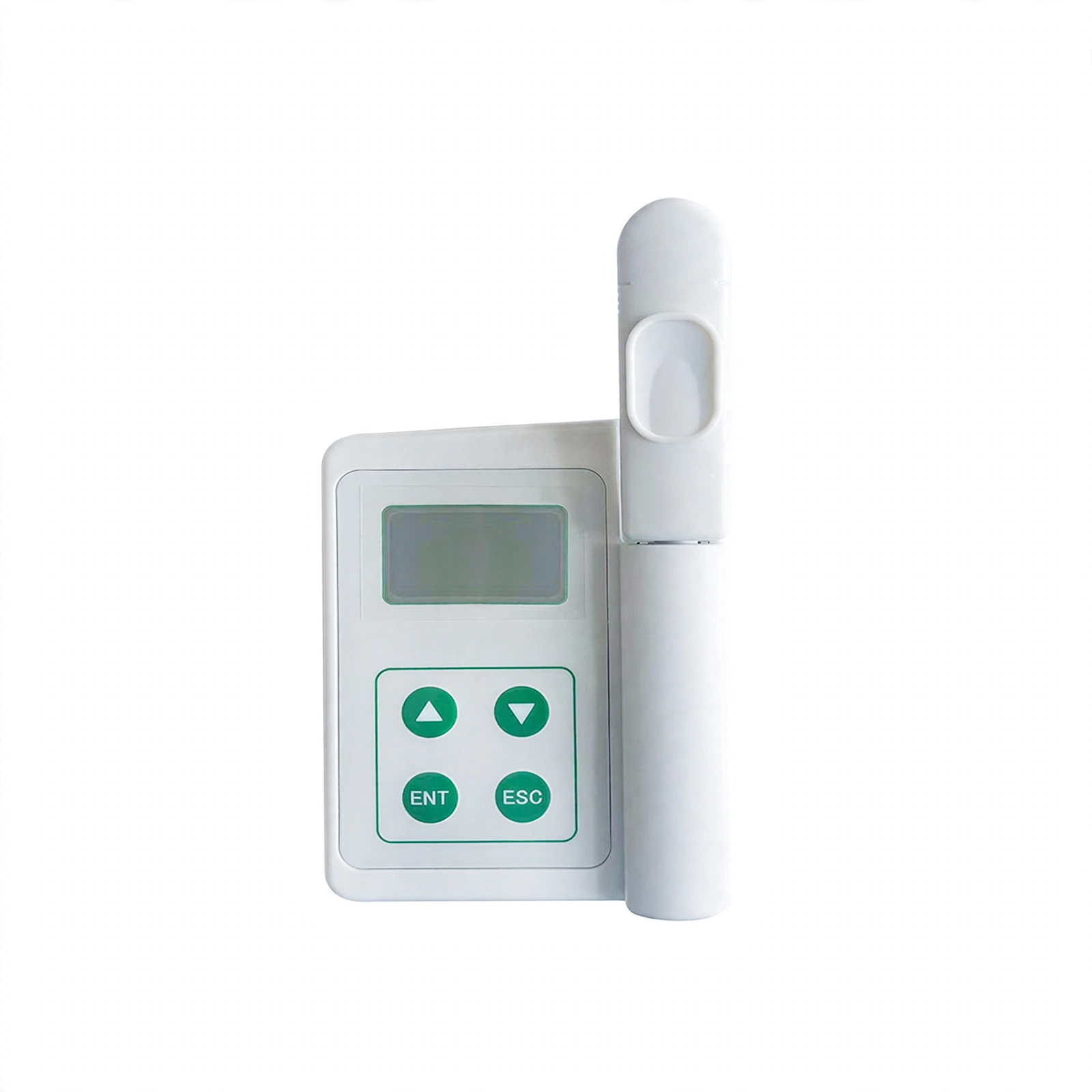

Application: Portable Chlorophyll Meter can measure different parameters, such as Chlorophyll. It helps to improve the use of nitrogen fertilizer, and provides reliable soil and crop information for precision agriculture. It can mainly be applied in fields such as agricultural production and ecological monitoring.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | PCM-A | PCM-B2 |
| Measurement Indexes | Chlorophyll | Chlorophyll, leaf temperature, nitrogen |
| Measuring Area |
10mm |
|
| Measuring Mode |
2-wavelength concentration difference of optical methods |
|
| Sensors |
Silicon semiconductor photodiode |
|
| Display Mode |
Measuring value: 3 digits liquid crystal display Measuring times: 2 digits liquid crystal display |
|
| Min Measuring Interval | < 2s | < 5s |
| Chlorophyll Range | 0.0~99.9 SPAD | 0.0~99.9 SPAD |
| Chlorophyll Accuracy | ±1.0SPAD | ±1SPAD |
| Nitrogen Range | / | Full range |
| Nitrogen Accuracy | / | ±5% |
| Leaf Temperature Range | / | 0~60°C |
| Leaf Temperature Accuracy | / | ±1°C |
| Repeat |
±0.3SPAD |
|
| Operating and Storage Environment |
0℃~50℃, 85% relative humidity |
|
| Power |
2200mAh |
|
| Battery Life |
Can maintain more than 20000 operations |
|
| Data Capacity |
2GB, SD card |
|
| Packing List(W*D*H) |
300*250*150mm |
|
| Gross Weight | 1.4kg | 1.5kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
