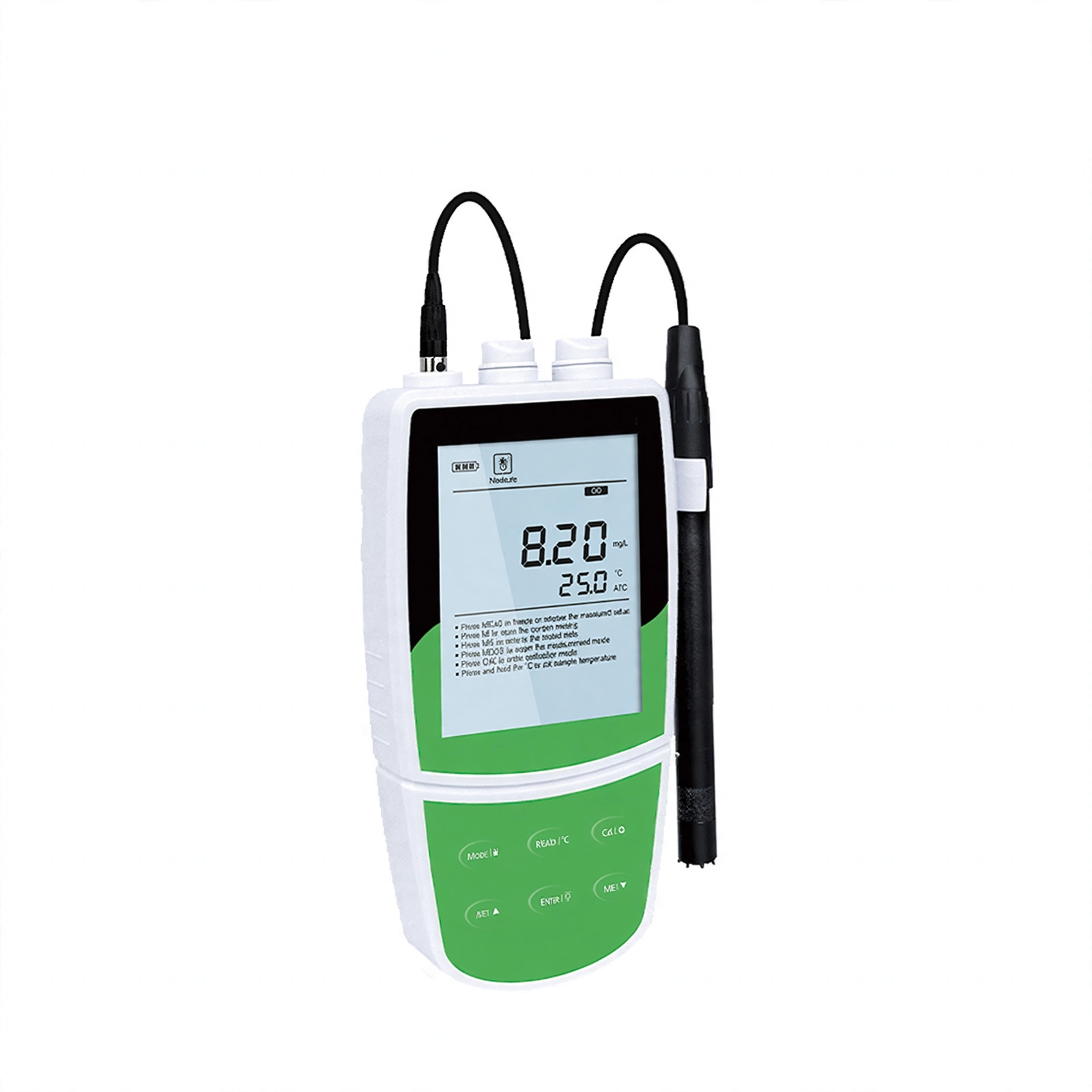

The Portable Dissolved Oxygen Meter is a compact and reliable instrument designed for quick and accurate measurement of dissolved oxygen levels in water.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
2. Salinity and barometric pressure compensations eliminate the measurement error.
3. Automatic temperature compensation ensures accurate readings over the entire range.
4. Auto-Read function senses and locks the measurement endpoint.
5. Auto-Power Off effectively conserves battery life.
6. Setup menu allows setting the number of calibration points, resolution, temperature unit, concentration unit, stability criteria, date and time, etc.
7. Reset function automatically resumes all settings back to the factory defaults.
8. Expanded memory stores or recalls up to 500 data sets.
9. USB communication interface for data transfer or connecting a power adapter to meter.
Accessories：
DO100 dissolved oxygen electrode, electrolyte solution, membrane cap and carrying case.
Technical Parameters:
|
Model |
PH-820 | PH-821 | |
|
DO |
Range |
0.00~20.00mg/L, 0.0~200.0% saturation |
|
| Accuracy | ±0.5mg/L, ±2.0% | ±0.2mg/L, ±2.0% | |
| Resolution |
0.01mg/L, 0.1% |
||
|
Other Specifications |
Calibration Points |
1 or 2 points |
|
| Temperature Compensation |
0~50°C/32~122°F, automatic |
||
| Barometric Pressure Correction |
60.0~112.5kPa/450~850mmHg, manual |
||
| Salinity Correction |
0.0~50.0g/L, manual |
||
| Stability Criteria | / | Low or high | |
| Calibration Due Alarm | / | 1 to 31 days or off | |
| Hold Function |
Manual or auto-endpoint |
||
| Auto-Off | 30 minutes after last key pressed | 10, 20 or 30 minutes after last
key pressed |
|
| Memory | 100 data sets | 500 data sets | |
| Communication Interface |
USB |
||
| Connector |
6-pin mini-DIN |
||
| Display |
Custom LCD(80*60mm) |
||
| Power Requirements |
3*1.5V AA batteries or DC5V power adapter |
||
| Dimensions(mm) |
170*85*30mm |
||
| Weight(kg) |
300g |
||
| Package Size(W*D*H)mm |
475*155*350mm |
||
| Gross Weight(kg) |
1.7kg |
||
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.

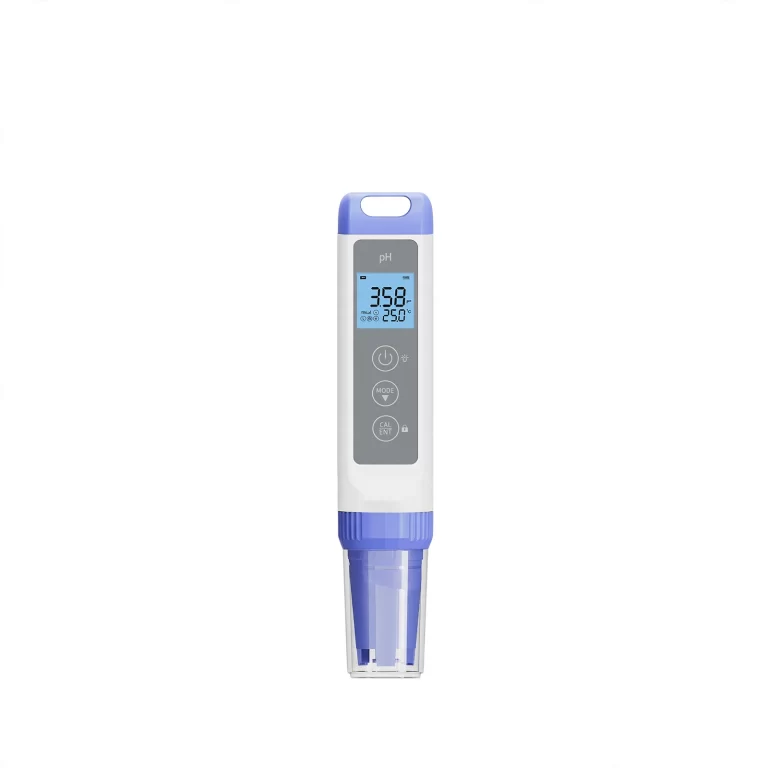

This pocket pH meter can measure pH, ORP(ORP probe optional) and temperature simultaneously. Pocket design, ready to use anytime. Lightweight body, easy to carry around. Equipped with a highly sensitive electrode for…

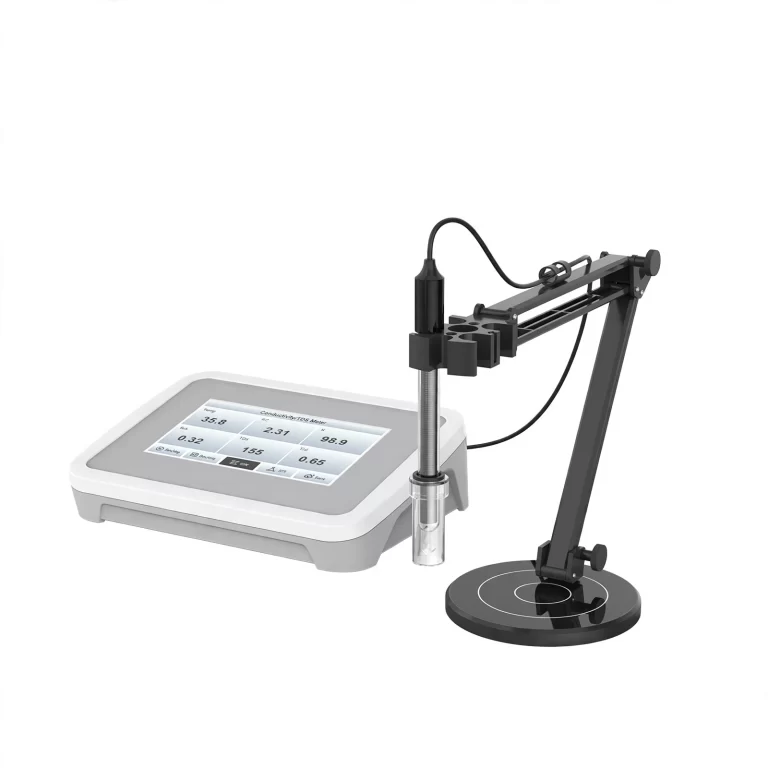

The benchtop water hardness meter utilizes high-precision electrodes combined with intelligent algorithms to rapidly complete detection within a short time, accurately outputting reliable data measured in mg/L. This i…

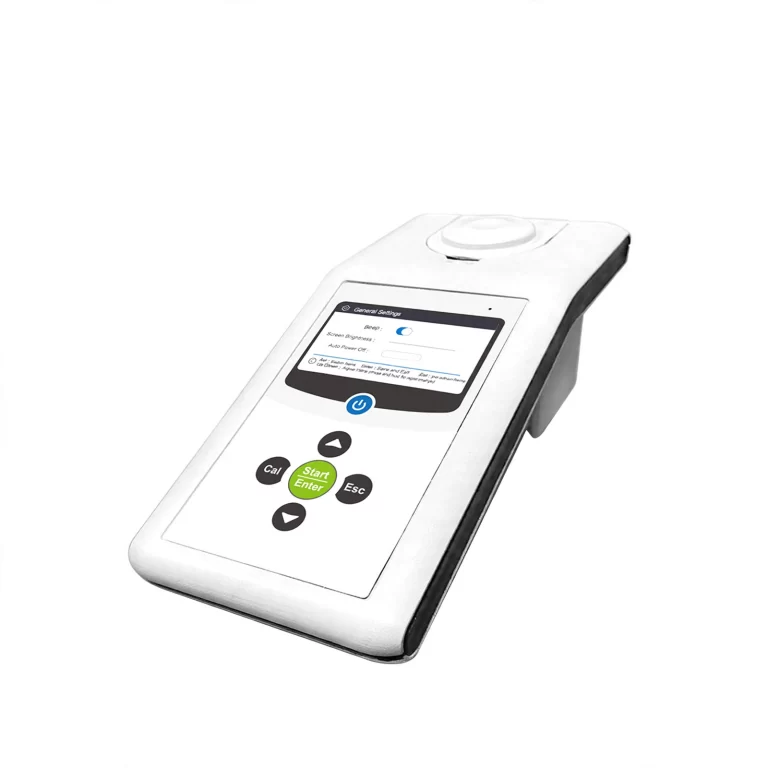

Portable water hardness meter is used for the rapid and accurate quantitative analysis of calcium and magnesium ion concentrations in water samples. Its core function is to monitor water hardness, which is a critical…
