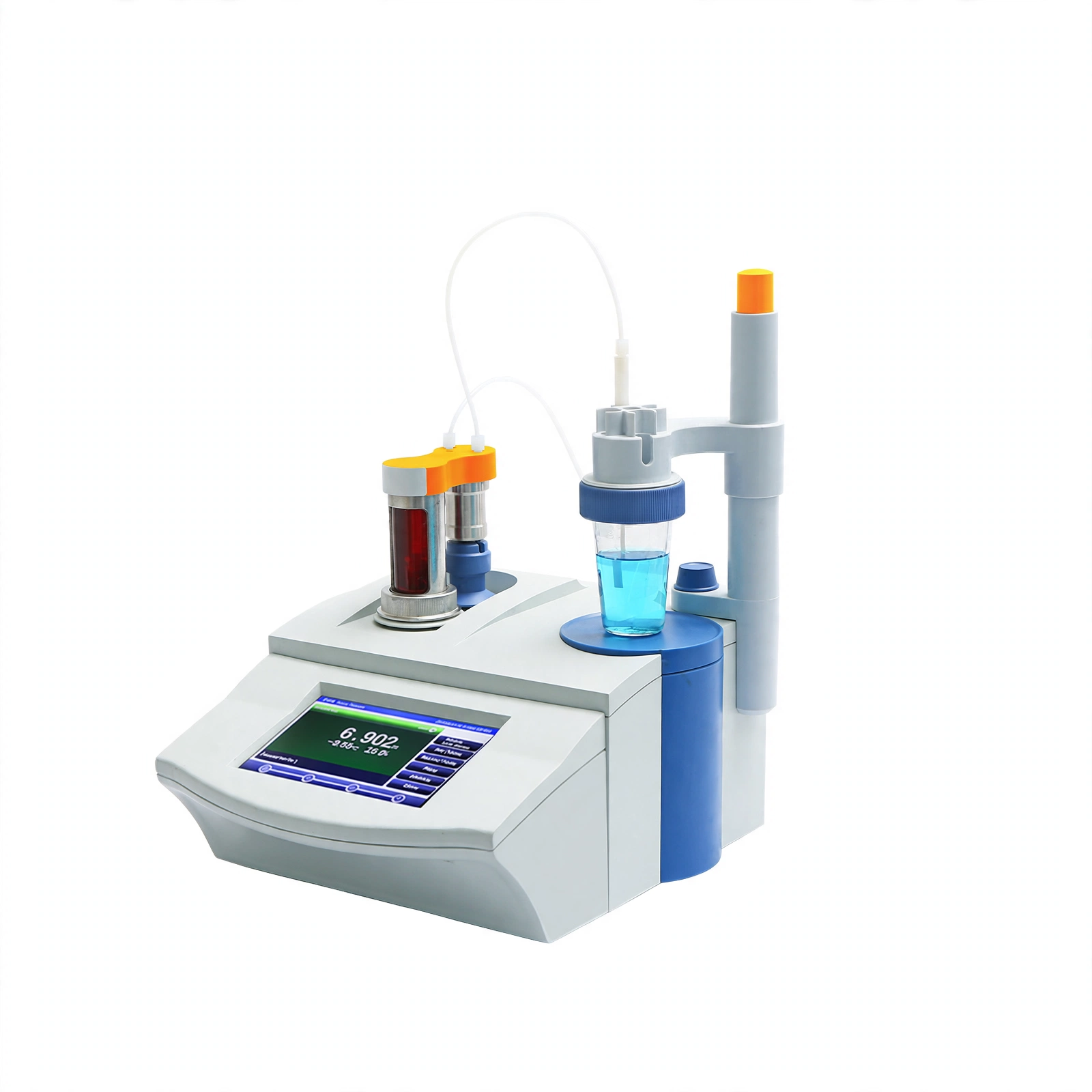

The Potential Titrator is an advanced analytical instrument designed for precise and automated potentiometric titration in laboratories.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. 7-inch TFT color touchscreen with sliding operation and stylus, easy to use and calibrate.
2. Integrated valve-burette design (replaceable directly), supports 10mL/20mL burettes, reducing cross-contamination.
3. Optimized transmission system (compact, low noise); PWM-adjustable stirrer (45 speed levels), supports upper/lower stirrers (lower included).
4. Perchloric acid-resistant titration system, supports non-aqueous titration and dual high-impedance input.
5. Default potential measurement unit, expandable to dead-stop, conductivity, and other units.
6. 7 built-in standard titration methods; supports user-defined methods and complex process editing.
7. Stores up to 100 methods (200 via USB); enables viewing, copying, editing, and shortcut access.
8. Automatic pH electrode calibration (up to 3 points), recognizes GB/DIN/NIST buffers.
9. Manages up to 5 titrants (validity, concentration/titer); custom result calculation formulas (max 50 characters).
10. GLP-compliant, stores 200 sets of data with power-off protection.
11. Real-time display of titration curves/data; statistical analysis (avg, SD, RSD) for up to 20 results.
12. Multiple titration start modes; supports batch titration (max 20 samples) with autosampler.
13. RS232/USB interfaces for printer/PC connection; firmware upgrade via USB.
14. 8-user account management with password; Chinese/English support; built-in operation guide.
15. Independent device management (titration unit, stirrer, etc.); supports electrode/burette calibration and maintenance.
Technical Parameters:
|
Model |
Ti-50 | |
|
Measuring Range |
pH: 0.000~14.000pH
mV: -1999.90~1999.90mV Temp: -5.0~105.0°C |
|
|
Measuring Resolution |
mV: 0.01mV
pH: 0.001pH Temp: 0.1°C |
|
|
Measuring Accuracy |
pH: ±0.01pH ±1 bit
mV: ±0.03% (full scale) Temp: ±0.3°C |
|
|
Burette Volume Accuracy |
10ml burette: ±0.025ml
20ml burette: ±0.035ml |
|
|
Burette Supplementary Speed |
55±10s(when burette is full scale) | |
|
Reproducibility of Titration Analysis |
0.2% | |
|
Reproducibility of Electric Unit |
≤0.2mV | |
|
Stability of Electric Unit |
±0.3 mV±1 bit/3h | |
|
Sensitive of Control Titration |
±2mV | |
|
Environments Temperature |
5.0~35.0 °C | |
|
Relative Humidity |
≤80% | |
|
Power Supply |
AC100~240V, 50/60Hz | |
|
External Size(W*D*H) |
Main Titration Device | 340*400*400mm |
| Auxiliary Titration Device | 200*110*230mm | |
|
Package Size(W*D*H) |
570*520*520mm | |
|
Net Weight |
10kg | |
|
Gross Weight |
16kg | |
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
