Other Specific Function Centrifuge

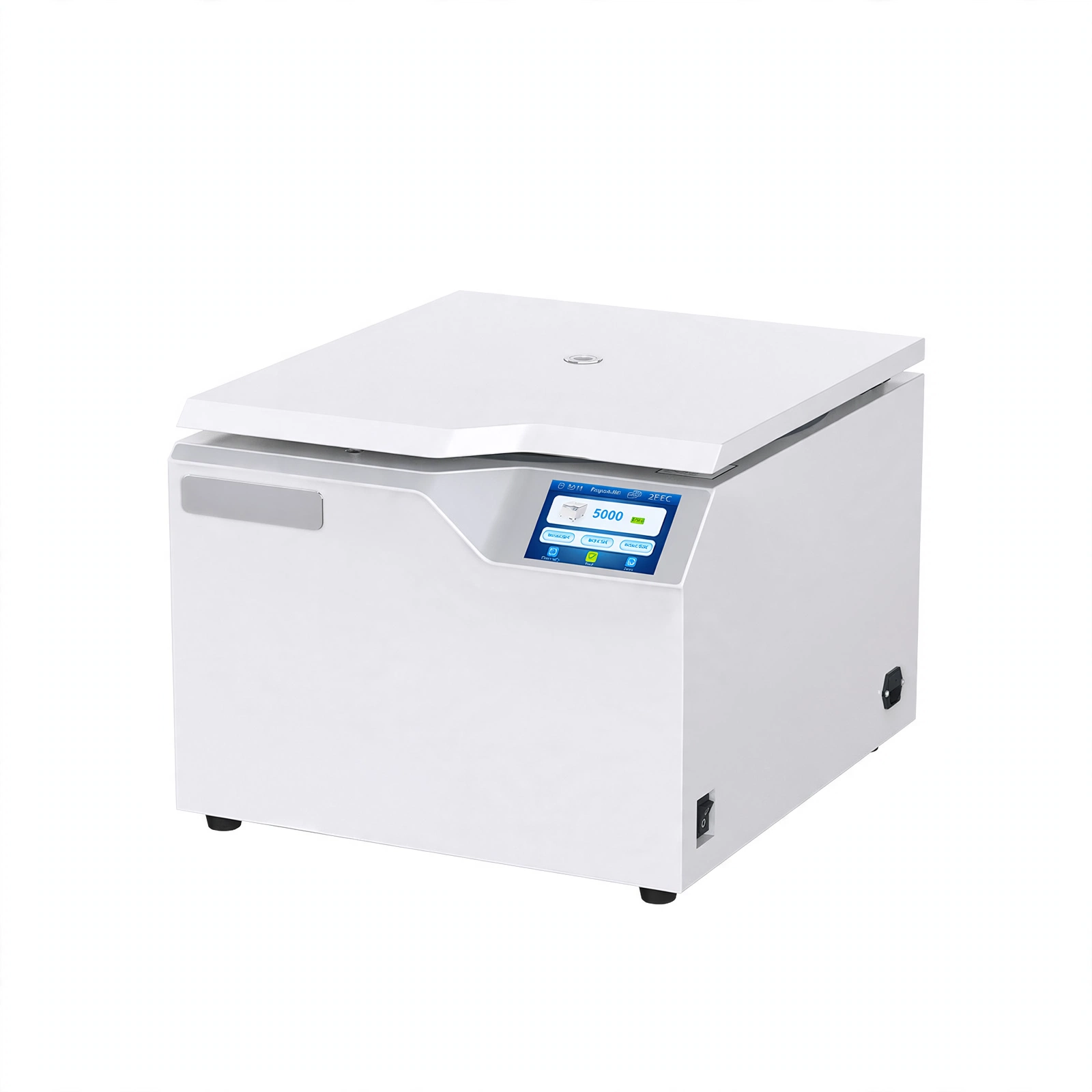

PRP Centrifuge BKC-TL5BI

Model BKC-TL5BI Blood & clinical

The PRP Centrifuge is a specialized device designed to efficiently separate Platelet-Rich Plasma(PRP) from blood samples, a critical process in medical and cosmetic applications. This advanced centrifuge combines precision engineering with user-friendly features to ensure reliable and effective PRP preparation.

Max. speed
5,000 rpm
Max. RCF
3,649 ×g
Capacity
4*50ml
Noise
≤65dB
Net weight
41kg
Dimensions
440*580*370mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Suitable for all specifications of routine blood vessel sampling, disposable syringe 10ml, 20ml, 50ml.

2. The rotor is equipped with a biosafety cover, which is made of high-strength aluminum alloy and can be disinfected at high temperature and pressure.

3. All-metal structure multi-layer explosion-proof design, stainless steel centrifugal chamber, safe operation performance, ultra-stable, durable, to ensure the safety of staff.

4. Embedded microprocessor control, DC brushless motor drive, maintenance-free, combined with multi-stage shock absorption structure, more smooth operation.

5. Using 5-inch touch LCD screen, support Chinese and English switching function, support small language customization, real-time display running all parameters, the operation interface is intuitive and simple.

6. Mechanical and electrical integration door lock, easy to use, safe and reliable.

7. Food-grade silicone integral sealing ring is used to avoid aerosol spill and ensure the safety of staff.

8. With self-test, door cover, blocking, overspeed, overtemperature detection and alarm functions, excellent shock absorber, the motor runs smoothly.

9. Can store more than 100 groups of user-defined programs, easy to call common programs, boot for the last program.

10. 20 kinds of lifting speed to choose from, the lifting speed is fast.

11. The main interface of the display screen can be set to speed centrifugation or start centrifugation, the time setting range can be set mm:ss or hh:mm, and the automatic cover opening/no cover opening function can be set to meet a variety of test requirements.

12. Precision control by microcomputer processor, real-time display of speed, time, RCF(relative centrifugal force) and other parameters.

13. Optional automatic rotor recognition.

Technical Parameters:

Model BKC-TL5BI
Max. Speed 5000rpm
Max. RCF 3649×g
Max. Volume 4*50ml
Timing Range 1min~99h59min/Continuous/Short-span
Speed Accuracy ±10rpm
Noise ≤65dB
Power Supply AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(L*W*H) 440*580*370mm
Package Size(L*W*H) 596*736*650mm
Net Weight 41kg
Gross Weight 55kg(220V), 60kg(110V)

Rotor:

Rotor NO. Rotor Type Capacity Max. Speed(r/min) Max. RCF(×g) Adapter
5M00060

PRP Rotor

4*10ml conventional syringe

4300

3401 /
5M00061 4*20ml conventional syringe 3649 /
5M00035 4*50ml conventional syringe 4000 3309 /
5M00074

Angle Rotor

8*15/20ml

5000

2655 1.5/2ml
5M00073 12*15ml

3354

1.5/2ml, 2/3/4ml vacuum blood tube

5M00075 24*10ml
5M00076 18*10ml
5M00077 12*10ml

Note: The default is round-bottom tube, except for the PRP rotor.

The details

Specifications

Model
BKC-TL5BI
Max. Speed
5000rpm
Max. RCF
3649×g
Max. Volume
4*50ml
Timing Range
1min~99h59min/Continuous/Short-span
Speed Accuracy
±10rpm
Noise
≤65dB
Power Supply
AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(L*W*H)
440*580*370mm
Package Size(L*W*H)
596*736*650mm
Net Weight
41kg
Gross Weight
55kg(220V), 60kg(110V)
