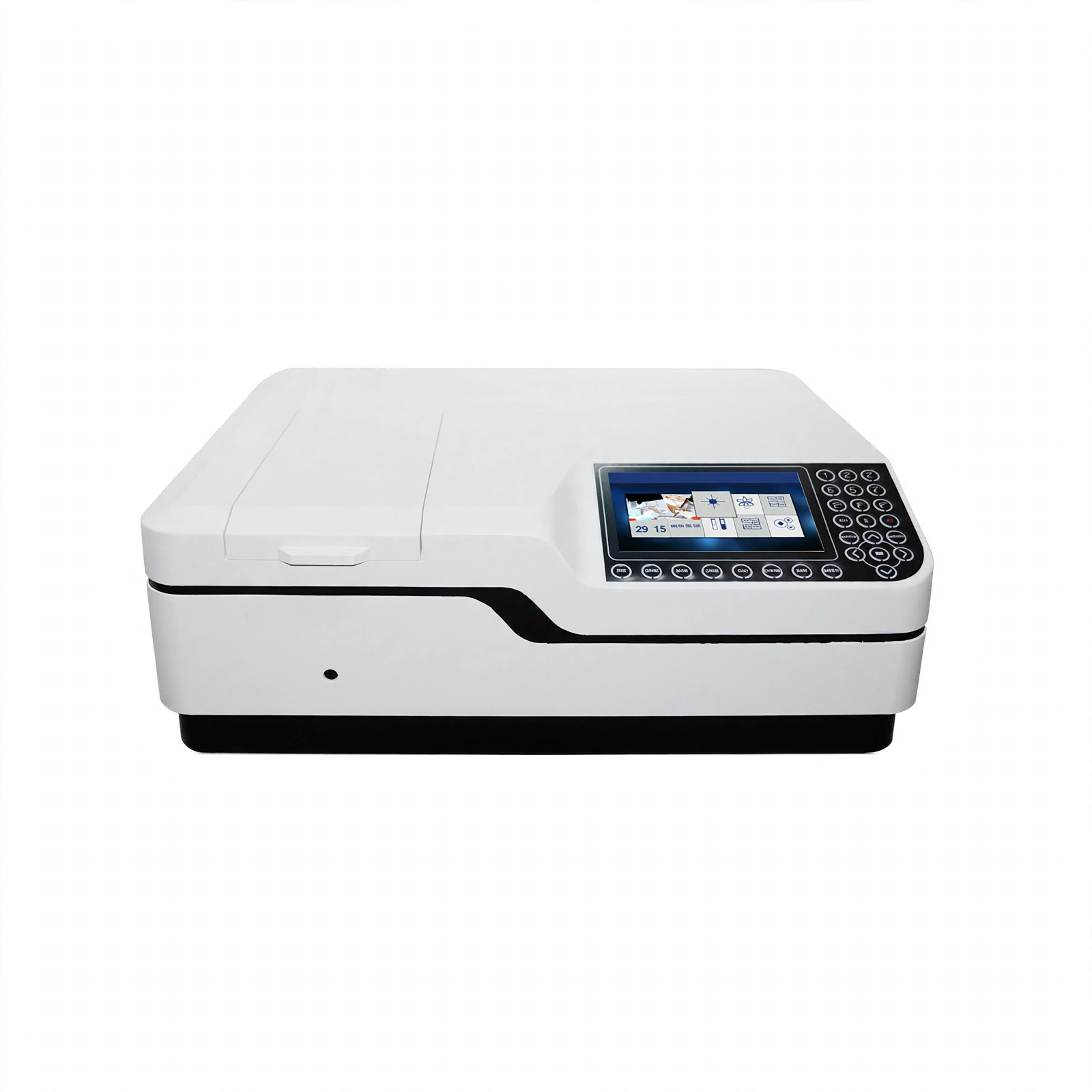

The Double Beam Scanning UV/VIS Spectrophotometer is a sophisticated analytical instrument designed for precise and comprehensive measurement of ultraviolet (UV) and visible (VIS) light absorbance. Ideal for use in research, quality control, and environmental analysis, this spectrophotometer provides accurate, reliable data across a wide range of wavelengths, making it essential for various scientific and industrial applications.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. 7-inch TFT large screen true color LCD display.
2. Support U disk storage, support excel, txt format, picture format, can output four formats: *.csv, *.qua. *.txt, *.bmp.
3. Using advanced ARM11 processor, it can store 2000 test data or 500 working curves.
4. The suspension optical system design and double-layer design improve the resolution and stability of the instrument.
5. The instrument uses a photoelectric signal detection device to make the instrument signal-to-noise ratio lower and the instrument more stable.
6. Optional built-in fully automatic injection flow system is convenient for customers to use.
7. Optional rotating 8-unit automatic cuvette holder ensures that the light is completely centered when passing through the cuvette, improving the performance of the instrument.
Technical Parameters:
| Model | BK-D2600 |
| Optical System | Proportional double beam, grating 1200 lines/mm |
| Bandwidth | 2.0nm |
| Wavelength Range | 190~1100nm |
| Wavelength Accuracy | ±0.3nm |
| Wavelength Repeatability | ≤0.1nm |
| Wavelength Resolution | 0.1nm |
| Display | 7-inch 800*480 color graphic LCD display |
| Stray Light | 420nm, ≤0.1%T
220nm, 340nm, ≤0.05%T |
| Noise | 0%, ≤0.05%T; 100%, ≤0.1%T |
| Photometric Range | 0~200%T, -3~3A, 0~9999C(0~9999F) |
| Photometric Accuracy | ±0.3%T |
| Transmittance Repeatability | ≤0.1%T |
| Baseline Flatness | ±0.001Abs |
| Light Source | Deuterium lamp, tungsten lamp |
| Data Output | RS-232C, USB drive, USB HOST |
| Power Supply | Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz |
| Outer Size | 580*450*210mm |
| Net Weight | 21kg |
| Packing Size | 800*645*365mm |
| Gross Weight | 26kg |
