- Model

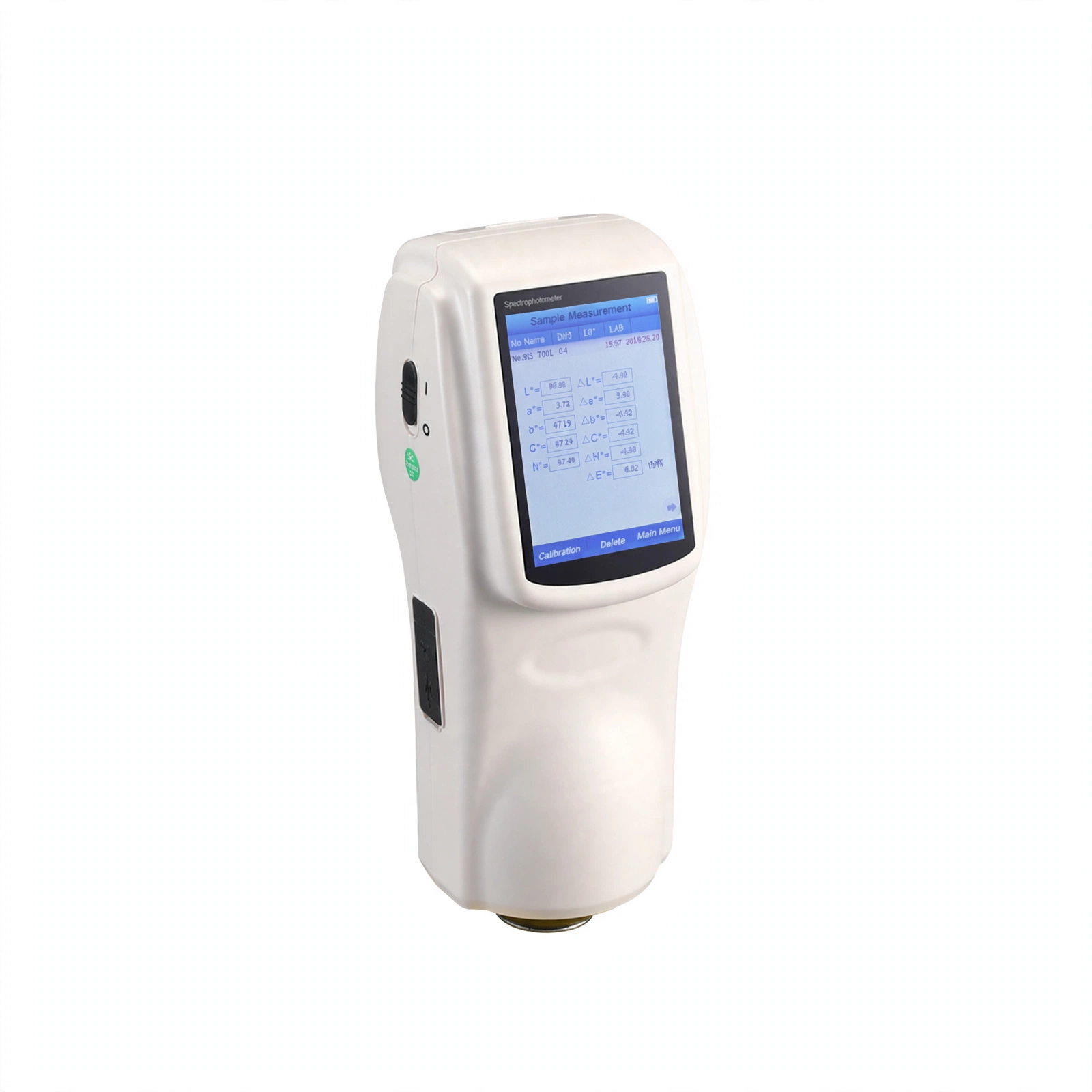

- BCM-810
- Illumination/Observation System
- d/8(diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978
- Integrating Sphere Size
- φ58mm
- Light Source
- Combined LED sources
- Sensor
- Silicon photodiode array
- Wavelength Range
- 400~700nm
- Wavelength Pitch
- 10nm
- Reflectance Range
- 0~200%
- Measuring Aperture
- φ8mm
- Color Space
- CIE LAB, XYZ, Yxy, LCh, CIE, LUV
- Color Difference Formula
- ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
- Other Chromaticity Data
- WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),metamerism index(Mt), color strength, color stain, color fastness, opacity
- Other Chromaticity Data
- WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),metamerism index(Mt), color strength, color stain, color fastness, opacity
- Observer
- 2°/10°
- Illuminant
- D65, D50, A, C, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
- Display Data
- Spectral value/Graph, Colorimetric value, Color difference value/Graph,Pass/Fail result, Color offset, Color simulation
- Display Data
- Spectral value/Graph, Colorimetric value, Color difference value/Graph,Pass/Fail result, Color offset, Color simulation
- Measurement Time
- 1.5s
- Repeatability
- Spectral reflectance: Standard deviation within 0.1%Colorimetric value: Standard deviation within ΔE*ab0.04(Measurement conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
- Repeatability
- Spectral reflectance: Standard deviation within 0.1%Colorimetric value: Standard deviation within ΔE*ab0.04(Measurement conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
- Repeatability
- Spectral reflectance: Standard deviation within 0.1%Colorimetric value: Standard deviation within ΔE*ab0.04(Measurement conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
- Inter Instrument Agreement
- Within ΔE*ab 0.2(Average for 12 BCRA Series II color tiles)
- Battery
- Li-ion battery, 2800 times within 8 hours
- Lamp Life
- 5 years, more than 1.6 million measurements
- Display
- 3.5 inch TFT LCD, Capacitive touch screen
- Interface
- USB/RS-232
- Data Memory
- 1000 standards, 15000 samples
- Ambient Temp.
- 0~40°C(32~104°F)
- Storage Temp.
- -20~50°C(-4~122°F)
- Standard Accessory
- Power adapter, Li-ion battery, operating instruction, PC software(Download from office website), data line, white and black calibration cavity, protective cover, wrist strap
- Optional Accessory
- Universal test components, micro printer, powder test box
- External Size(W*D*H)
- 90*77*230mm
- Package Size(W*D*H)
- 370*170*310mm
- Net Weight
- 600g
- Gross Weight
- 3kg
- Notes
- The specifications are subject to change without notice
